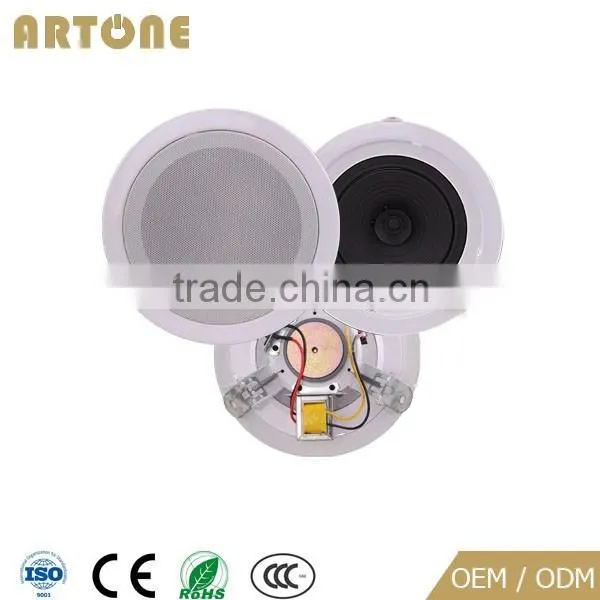

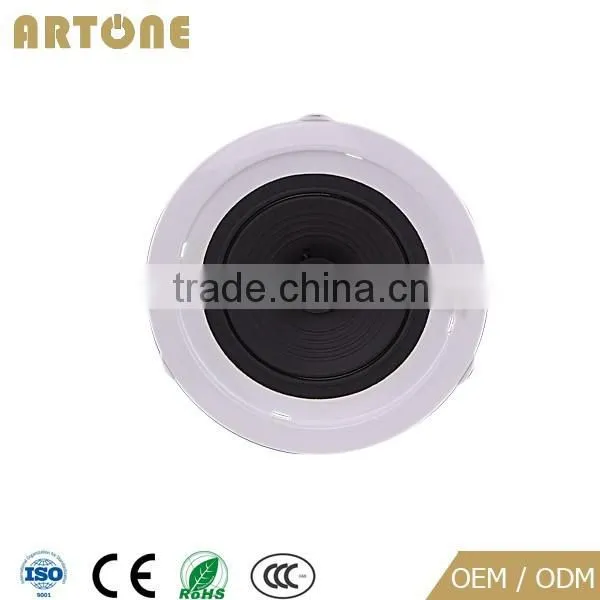

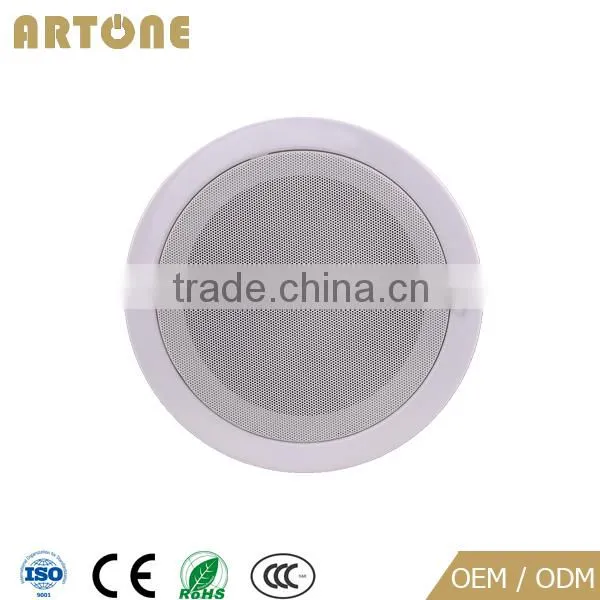

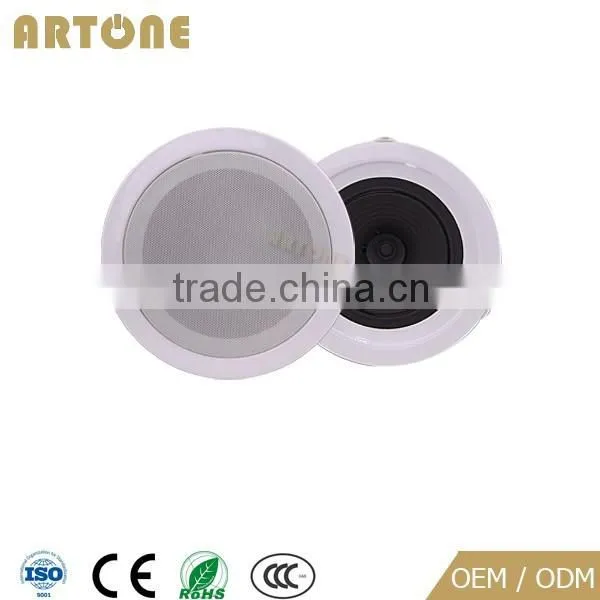

Help CenterCS-104/CS-105 PA Ceiling Sound System for Supermarket
Related Products
-
High Quality 30W 2 Way 6 Inch PA System Coaxial Ceiling Speaker With CoversUS$ 1 - 15MOQ: 1 Piece -
6'' 2-way PA Ceiling Speaker for Commercial Audio System CS-263HUS$ 1 - 59MOQ: 1 Piece
-
8 Inch Ceiling Mounted Speaker for 100V or 8 Ohm PA System CS-284US$ 29.9 - 89MOQ: 8 Pieces
-
8 Inch Commercial Indoor Round White Ceiling Speaker With Covers CS-284HUS$ 29.9 - 59MOQ: 8 Pieces
-
Best-seller Professional White Coaxial Ceiling Speakers for Hotel Hall,houseUS$ 6.8 - 12MOQ: 1 Piece
Features
- Built-in 100v/70v transformer
- In-ceiling spring-clip ceiling speaker
- 4” and 5” full range speaker unit
- Power taps 3W & 6W at 100V line
- Metal frame
- Economical series with best cost-effective performance
Description
ARTONE commercial ceiling speaker is a ceiling speaker with built-in 70v/100v transformer, which reduces line losses on long distance transfer and allows easy parallel connection of multiple speakers.
The 4” / 5” full range speaker driver is able to give wide frequency response at 110-15KHz and 100-15KHz, the multiple power taps 6W / 3W are helpful for different applications varies from room size and ambient noise surroundings. The metal frame are powder-coated in white color, and can be installed in ceiling merge to ambient field. Its spring clip clamp makes the easy, fast and secure installation.
It is an ideal choice for industrial, educational and commercial applications in hotel, school, office, church, shop and factory audio system, where background music and paging is needed.
Specification
| Model No. | CS-104 |
| Power and Power Tap | 6W, 3W |
| Impedance | Black: Com Blue:6.7 KΩ Red:3.3KΩ |
| SPL(1W/1M) | 92dB |
| Max. SPL (Rated W/1M) | 102dB |
| Frequency Response | 110-15KHz |
| Speaker Driver | 4” full range driver x 1 |
| Mounting | Spring clip ceiling mounting |
| Cutout Size | 150mm |
| Dimension | 180 x 60 mm |
| Weight | 0.6KG |
| Model No. | CS-105 |
| Power and Power Tap | 6W, 3W |
| Impedance | Black: Com Blue:6.7 KΩ Red:3.3KΩ |
| SPL(1W/1M) | 92dB |
| Max. SPL (Rated W/1M) | 102dB |
| Frequency Response | 100-15KHz |
| Speaker Driver | 5” full range driver x 1 |
| Mounting | Spring clip ceiling mounting |
| Cutout Size | 166mm |
| Dimension | 200 x 60 mm |
| Weight | 0.8KG |
First Packing: Plastic Bag (to prevent it from scratch);
Second Packing: Foam Packing (Anti Vibration or serious shock in transportation)
Third Packing: Carton Box (For easier delivery and selling)
Forth Packing: General Packing for 5 pieces amplifier, for fast loading and handling
| Product Quality Level | High & Medium Quality Provided |
| Price & Cost | Low price, low profit |
| Service | 7x24 online, OEM/ODM cooperation |
