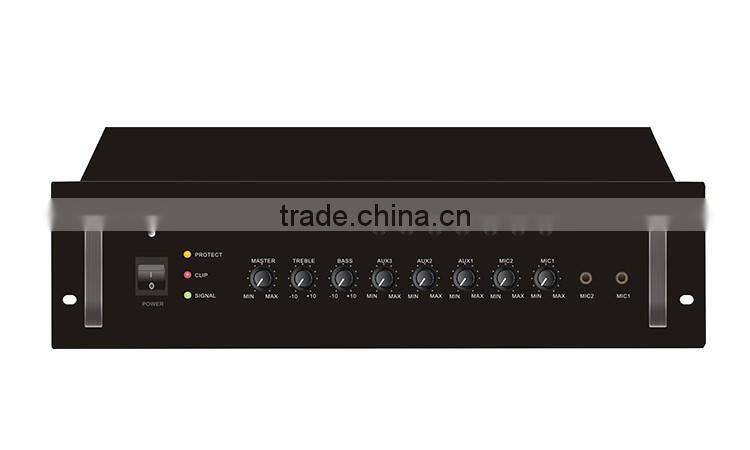

Help CenterPMA-E6500 Series 500w pa Product on Public Address LED Cheap Strong 6 Zones Power Mixer Amplifier
Related Products
-
Cheap Professional 6 Zone Power Mixer Amplifier Made in ChinaUS$ 1 - 600MOQ: 1 Piece -
Cheap PA Power Amplifier PPA-E1240 Series 1200 Watts AmplifierUS$ 60 - 1,500MOQ: 1 Piece
-
Cheap PA Speaker Power Amplifier Module PPA-E1240 SeriesUS$ 60 - 1,500MOQ: 1 Piece
-
Public Address Professional Vacuum Tube Power AmplifierUS$ 60 - 1,500MOQ: 1 Piece
-
2015 Hot Sale Professional Audio Power Amplifier ModuleUS$ 60 - 1,500MOQ: 1 Piece
Details
PMA-E6060 PMA-E6120 PMA-E6180 PMA-E6240 PMA-E6300 PMA-E6360 PMA-E6500 PMA-E6650
PA Mixer Amplifier is the most cost-effective choice for 6 zone sound system. It is 19’’ rack mountable design with hand holder. 2 MIC inputs, 3 AUX inputs and 1 line output. Volume control for MIC inputs, AUX inputs, bass, treble and main volume. MIC1 prior to other audio inputs. 6 zone switches control on/off. The output in 4-16 ohm, 70V and 100V with fully protection of shortcircuit,
Features
- Reliable 6 zones pa mixer amplifier power range from 60W~650W;
- Treble, bass, microphone volume control;
- 6 zone switches to control on/off;
- 2 Microphone inputs (6.3 jack), 3 RCA AUX inputs, 1 Line out;
- MIC1 has top priority to mute other audio inputs;
- 4~16 ohm, 70V, 100V speaker output;
- Aluminium front panel, metal case;
- 19’’ rack mount design with hand holder;
- LED indicator, Shortcircuit, over heat, over load protection;
Specification
Model No. |
PMA-E6060 |
PMA-E6120 |
PMA-E6180 |
PMA-E6240 |
PMA-E6300 |
PMA-E6360 |
PMA-E6500 |
PMA-E6650 |
Power |
60W |
120W |
180W |
240W |
300W |
360W |
500W |
650W |
Speaker Output |
4-16Ω, 70V,100V |
|||||||
AUX Output |
600 ohms (Ω)/1V(0dBV) |
|||||||
Mic Input |
600 ohms (Ω),10mV(-54dBV), Unbalance |
|||||||
Line Input |
10K ohms(Ω), 250(-10dBV), Unbalance |
|||||||
Frequency Response |
60Hz~18KHz |
|||||||
Distortion |
-0.1% at 1KHz,1/3 power output |
|||||||
S/N |
Line:70dB, Mic:66dB |
|||||||
Tone Adjustment |
BASS:±10dB (100Hz),TREBLE:±10dB (10KHz) |
|||||||
Protection |
AC FUSE ; DC VOLTAGE, OVERLOAD AND SHORT CIRCUIT |
|||||||
Power |
AC 220~240V/50~60Hz |
|||||||
Fuse |
5A |
5A |
8A |
8A |
10A |
10A |
12A |
15A |
Size |
485×340×88mm |
485×400×88mm |
||||||
Weight |
8 Kg |
8.5 Kg |
10 Kg |
12 Kg |
15 Kg |
16 Kg |
17.5 Kg |
19.5 Kg |
Packaging & Shipping
First Packing: Plastic Bag (to prevent it from scratch);
Second Packing: Foam Packing (Anti Vibration or serious shock in transportation)
Third Packing: Carton Box (For easier delivery and selling)
Forth Packing: General Packing for 5 pieces amplifier, for fast loading and handling
Our Services
| Product Quality Level | High & Medium Quality Provided |
| Price & Cost | Low price, low profit |
| Service | 7x24 online, OEM/ODM cooperation |
