2014 the Most Sell Like Hot Cakeshigh Voltage 100A dc Contactor

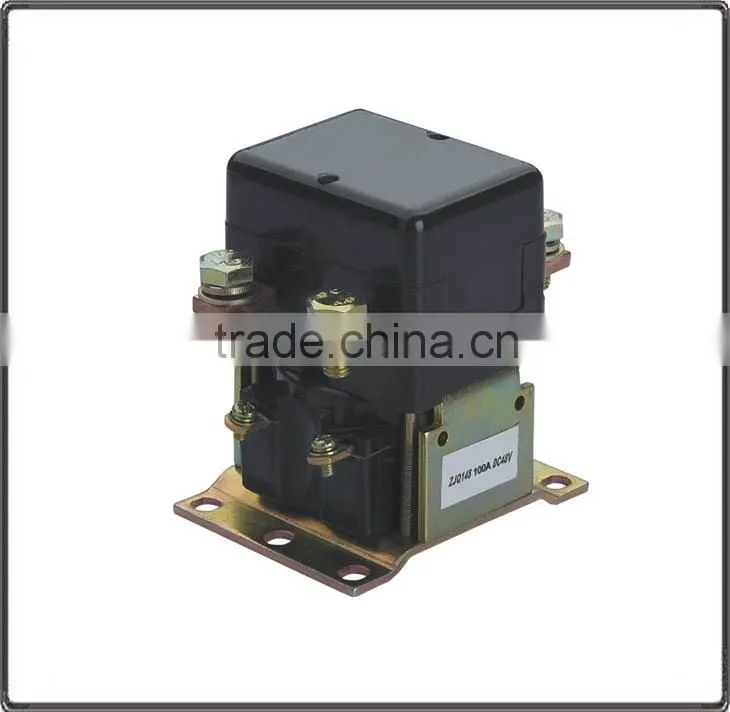

2014 the Most Sell Like Hot Cakeshigh Voltage 100A dc Contactor thumbnail-1
2014 the Most Sell Like Hot Cakeshigh Voltage 100A dc Contactor photo-1
US$ 10 - 65 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Chenf
Model Number:
ZJQ100
Contact Supplier Request Quote Chat Now
Yueqing Chenf Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai and NingBo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Chenf
Model Number ZJQ100
Electricity Type DC
Phase 3
Main Circuit Rating Voltage Other, 80
Main Circuit Rating Current Other, 100

Apply to



high voltage dc contactor
This conatct is applicable for using in DC circuits and can be powered with battery or rectified power.They perform power switching functions for power switching operations of traction drives as well as pump motor and other electric vehicles

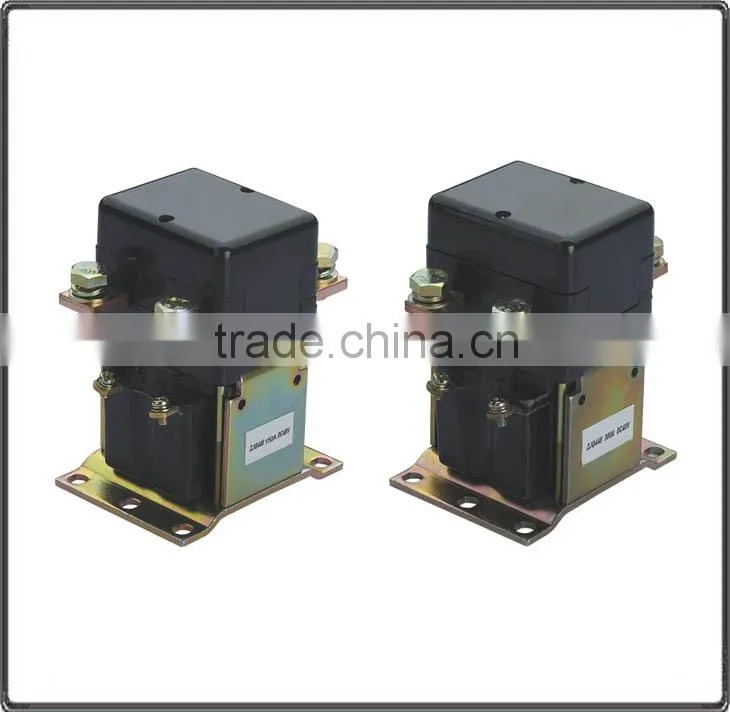

high voltage dc contactor

2014 the most sell like hot cakeshigh voltage 100A dc contactor



high voltage dc contactor

2014 the most sell like hot cakeshigh voltage 100A dc contactor



high voltage dc contactor



2014 the most sell like hot cakeshigh voltage 100A dc contactor



high voltage dc contactor



2014 the most sell like hot cakeshigh voltage 100A dc contactor



high voltage dc contactor



Technical parameters



high voltage dc contactor



Model No.

ZJQ100

Contact Arrangement

1H (SPST-NO)

Contact Material

AgCdO

Contact Rating(at Resistive load)

400A  80VDC

400A  250VAC

Max.Switching Voltage

80VDC , 250VAC

Max.Switching Power

100000VA

Endurance of Over Loading Current 7le/10S

2800A/10S

Coil Rated Voltage

12,24,48,60,120VDC,etc.

Pick-up Voltage

20-60% of coil rated voltage

Drop-out Voltage

20-60% of coil rated voltage

Contact Pressure Drop

At most 300mV when 100A

Insulation Resistance

Min.100MΩat 500VDC

Dielectric Strength

(Between Insulated Electric Parts)

1500VAC 50/60Hz (1 minute)

Operate Time

Max.50mSec

Release Time

Max.50mSec

Ambient Temperature

-25~+60C

The shocking for fixed point

(10-200)HZ Acceleration <=3.5g

Shocking

(60-100) time/minute Acceleration<=4g

Mechanical life

100,000 Operation (no load)

Electrical life

50,000 Operation (at rated load)

24v dc contactor



Configuration installation drawing



high voltage dc contactor



2014 the most sell like hot cakeshigh voltage 100A dc contactor



high voltage dc contactor



2014 the most sell like hot cakeshigh voltage 100A dc contactor



high voltage dc contactor



Similar products



high voltage dc contactor

2014 the most sell like hot cakeshigh voltage 100A dc contactor



high voltage dc contactor



The mode of transportation and terms of payment



high voltage dc contactor



2014 the most sell like hot cakeshigh voltage 100A dc contactor



high voltage dc contactor



2014 the most sell like hot cakeshigh voltage 100A dc contactor



high voltage dc contactor



2014 the most sell like hot cakeshigh voltage 100A dc contactor
