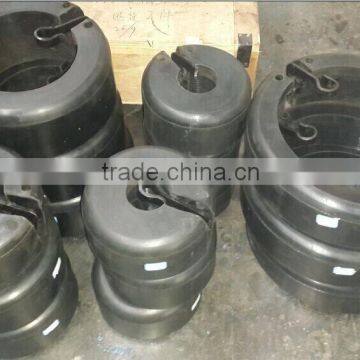

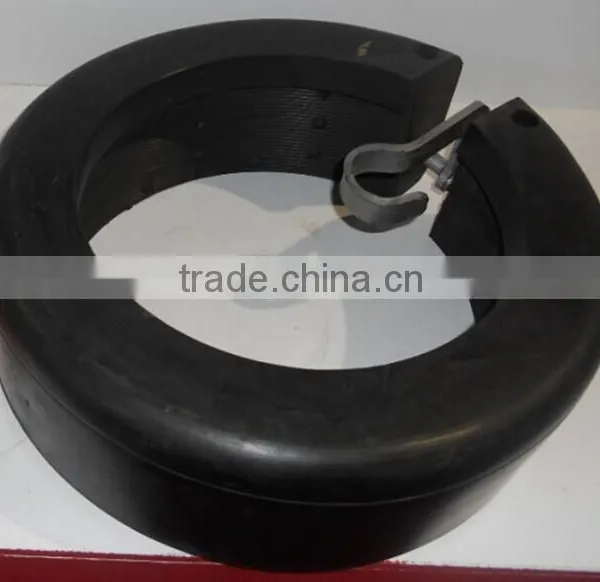

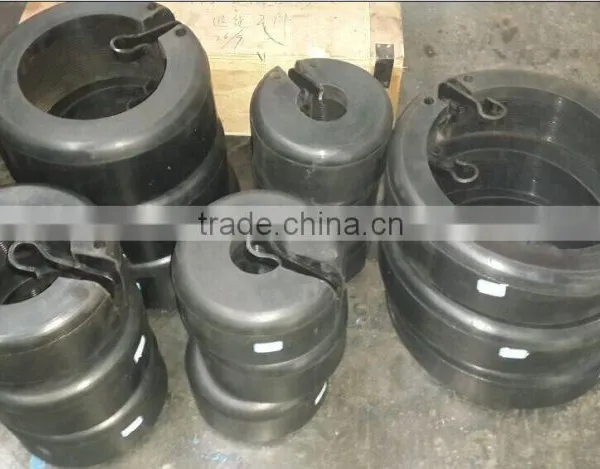

Quick-operating Thread Protector
Product feature:
1.Casing quick-operating thread protector is one kind of manual device for protecting casing outside thread.
2.The structure is simple, solid durable, reliable performance.
3.Adopting for our casing quick-operating thread protectors could save time and cost.
4.The Quick-operating Thread Protector consists of a high strength spring-steel band molted inside strong, abrasion-resistant rubber.
5.An adjustable cam-type latch assembly is incorporated for manual locking and unlocking of the protector.
6.To operate the Quick-operating Thread Protector, place the protector on the pin-end threads of pipe, push the handle firmly toward the center of the pipe and the locking action securely closes it in place. Pull the handle out to release
Product types and specifications of Thread Protector
Type |
O.Dmm(inch) |
Connection |
Lengthmm(inch) |
KHS 5 |
230(9-1/16) |
BCSG,LCSG |
125(4-15/16) |
KHS 5-1/2 |
235(9-1/4) |
BCSG,LCSG |
125(4-15/16) |
KHS 7 |
275(10-13/16) |
BCSG,LCSG |
125(4-15/16) |
KHS 9-5/8 |
335(13-3/16) |
BCSG,LCSG |
145(5-45/64) |
KHS 10-3/4 |
362(14-1/4) |
BCSG,?CSG |
115(4-9/16) |
KHS 13-3/8 |
425(16-47/64) |
BCSG,?CSG |
115(4-9/16) |
KHS 16 |
500(19-11/16) |
BCSG,CSG |
125(4-15/16) |
KHS 18-5/8 |
565(22-1/4) |
BCSG,CSG |
125(4-15/16) |
KHS 20 |
610(24) |
BCSG,?LCSG |
145(5-45/64) |
