Specifications
1.API Spec11D12.Compact, fast running
3.Best service,good quality
4.Competive price
5.Field-proven design

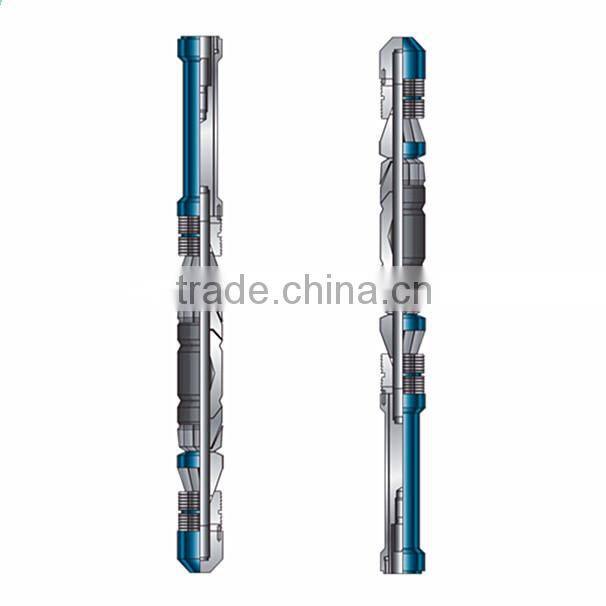

WRBP Wireline Set Bridge Plug
Product Explanation:Model WRBP Wireline Set Bridge Plugs are specially designed to run through tubing or restricted pipe and set securely in larger tubing or casing below. These Bridge Plugs will set securely in any hardness casing. A ratchet lock ring stores the setting force in the Plug. The three piece packing element and metal back up rings combine for a superior seal. The case hardened, one piece slips virtually eliminate premature setting, yet can be easily drilled out.
They are available for 1.610” through 5.044” setting range.
Features
1.Sets securely in any hardness casing, including premium grades
2.Ratchet lock rings secure dynamic setting force
3.Three piece packing element and rocker action metal back up rings combine for a superior seal
4.Compact, easy running
5.Can be set either with GO, Baker or Gearhart wireline setting tools
SPECIFICATIONS | ||||
Part Number | Setting Range | Tool OD | Release Force | |
Min(in) | Max(in) | (in) | (lbs) | |
060-0146-401 | 1.610" | 1.995" | 1.468" | 8,000 |
060-0175-401 | 1.905" | 2.441" | 1.750" | 12,000 |
060-0190-401 | 2.156" | 2.765" | 1.906" | |
060-0218-401 | 2.375" | 3.000" | 2.187" | |
060-0228-401 | 2.441" | 3.343" | 2.281" | |
060-0250-401 | 2.875" | 3.500" | 2.500" | 25,000 |
060-0275-401 | 3.187" | 3.920" | 2.750" | |
060-0325-401 | 3.920" | 4.276" | 3.250" | 30,000 |
060-0350-402 | 3.696" | 4.276" | 3.500" | |
060-0406-401 | 4.154" | 5.044" | 4.062" | |
