Specifications
1.API standard2.Auto Density Control
3.Air inlet shutoff.
4.Simplify operation
5.Safe and reliable

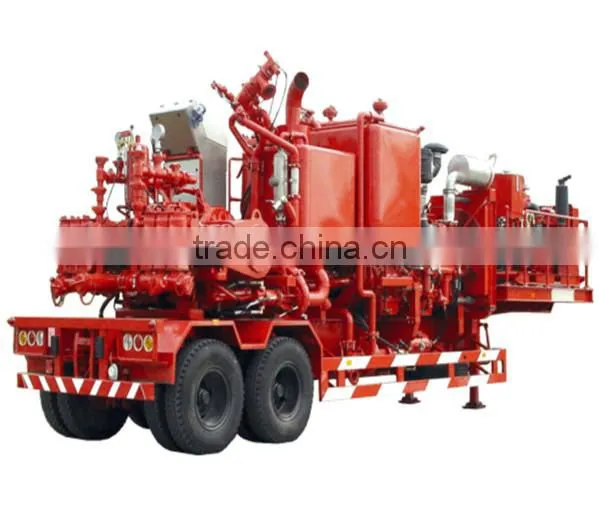

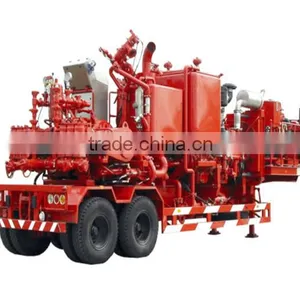

PCTLR-521A Auto Density Control Double Pump Cementing Trailer
Product Explanation:The Model PCTLR-521A system is a trailer mounted complete mixing and pumping unit. It is designed with an auxiliary hydraulic power unit for supplying sufficient mixing energy and pump capacity. This unit is state-of-the-art in mixing and automatic control. The quality of design, component selection, and quality manufacture makes it a benchmark in the industry. The high energy mixing system can mix the most difficult slurries and the automatic density control will provide superior density control. The in-line triplex pump installation makes the maintenance and service of pumps easier.
Product Features:
1.Continuous high energy mixing
2.Auto density control
3.Air inlet shutoff
4.Overpressure shutdown
5.SPS packing system
6.Non-radioactive densitometer
7.Stainless steel console
8.Engraved stainless steel panel
9.Dual scale gauges
10.Remote monitoring and data record system available
11.Cold start aid, air starter, hydraulic starter on request
12.Integral high pressure iron
13.Auxiliary power pack
General Specification
Weight |
23.2 t (51,000 lbs) |
Overall Dimension |
36.9 ft (L) x 8.2 ft (W) x 13.5 ft (H) |
Max.Pressure |
11,200 psi (with 4 1/2” fluid end) |
Max.Flow |
19.2 bpm (w/2 4 1/2”fluid end) |
Density Range |
8.32-22.5 ppg ± 0.2 ppg |
Mixing Capacity |
0 ~ 12.6 bpm |
Working Temp. |
-30ºC ~ 50ºC |
Working Time |
>2 hours (under ); >3 hours (under max.flow) |
Specification | ||||||
Trailer Chassis |
King Pin |
2” (50) |
Tire |
11.00-20 |
||
Height of Saddle |
1390mm |
Support Legs |
JOST |
|||
Axle |
bpw 14010 (2EA) |
Wheel Base |
51.2” |
|||
Deck Engine |
Caterpillar C13 475hp@2100rpm (2EA) |
|||||
Aux. Engine |
Caterpillar C7 300hp@2200rpm (1EA) |
|||||
Transmission |
Allision 4700 OFS (5 Forward+neutral) (2EA) |
|||||
Hydraulics |
Auxiliary engine driven open loop for c-pumps, closed loop for agitators |
|||||
Triplex Pump | ||||||
Model |
TPH400 |
|||||
Stroke |
8” (203.2mm) |
|||||
Max. Hp |
600 bhp (447Kw) |
|||||
Gear Ratio |
8.6:1 |
|||||
Fluid End |
4 1/2” |
3 3/8” * |
4” |
5” * |
6” * |
|
Work Pressure (psi) |
11,200 |
20,000 |
13,600 |
8,700 |
6,000 |
|
Max.Flow (gpm) |
9.6 |
5.4 |
7.6 |
11.9 |
17 |
|
ACM-III Mixing System | ||||||
Mixer |
High energy recirculation mixer |
|||||
Water Pump |
MISSION 4X3 |
|||||
Recir/Boost C-Pumps |
SERVA RA56 |
|||||
Densitometer |
Micro motion 3” non-radioactive densitometer |
|||||
Controls |
AB industrial micro processor |
|||||
Tank Volumes | ||||||
Mixing Tub |
7.5 bbl (1.2 m³) |
Fuel tank |
238 gals |
|||
Disp. Tank |
2x10 bbl (2x1.5 m³) |
Hyd. tank |
2x45 gals |
|||
|
|
Air tank |
20 gals |
|||
NOTE: Please consult manufacturer for items with "*"
