Specifications
1.API standard2.High energy mixing system
3.Low cost and economical
4.Easy to transport and hoist

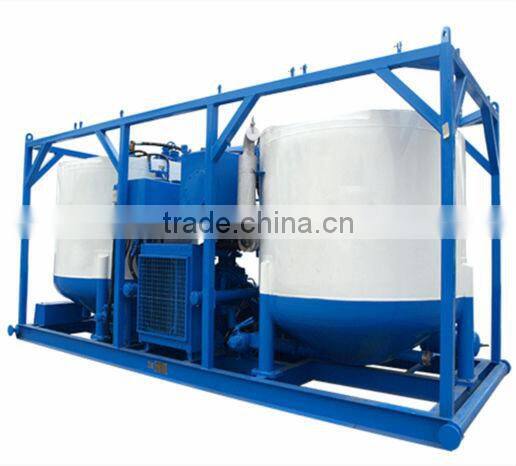

BCS-300-100 Manual Batch Mixing skid
Product Explanation:BCS-300-100 Manual Batch Mixing skid, it is regarded as the economic and substantial edition which is based on continuous batch mixing system without ACM system, and applied to slurry batch mixing work during cement work. Working principle: to realize slurries circulating mixing by recirculating centrifugal pump, at the same time to meet the destination of cementing and dry additive through flexible ejector on the top of tank.
The batch mixing tank can be installed two structures: single tank 120BBL or 2X50BBLdouble tank
Product Features
1.Without ACM system and high energy mixing system, low cost and economical.
2.Adopt international pop single tank or 2x50BBL, and install large power blender in each tank
3.Special design of hoist collision-proof brace, easy to transport and hoist
4.Choose the electricity driver system, it can meet the demand of ZONE-II and suit to offshore flat work
Configuration | ||
manual batch mixing |
single tank |
double tank |
dimension (length x width x height) |
6850 x 2500 x 3150 |
7200 x 2500 x 3150 |
G.W |
About 13t |
About 11t |
batch mixing volume |
120BBL (single tank) |
2x50BBL (double tank) |
slurry density range |
1.3-2.7 g/cm³ |
1.3-2.7 g/cm³ |
Working temp. |
-25 °C ~50 °C |
-25 °C ~50 °C |
Configuration | ||
engine |
caterpillar C7 300HP@2200RPM |
caterpillar C7 300HP@2200RPM |
gear box |
Funk 59000series |
Funk 59000series |
hydraulic system |
Eaton heavy close hydraulic system |
Eaton heavy close hydraulic system |
recirculation centrifugal pump I |
Mission 5X6X11 |
Mission 5X6X11 |
Recirculation centrifugal pump II |
Mission 5X6X11 |
Mission 5X6X11 |
eject system |
Simple jet system+ hopper |
Simple jet system+hopper |
Dry cement valve |
Manually cement valve |
Manually cement valve |
batch mixing tank |
single tub blender |
Double tub+blender |
options | ||
Mixing system |
Choose high energy mixing system |
|
drive system |
1. Motor drive the centrifugal pump and blender via hydraulic system, and it can meet the demand of Zone-II explosion-proof and attest |
|
2. Motor drive the centrifugal pump and blender directly, and it can meet the demand of Zone-II explosion-proof and attest | ||
