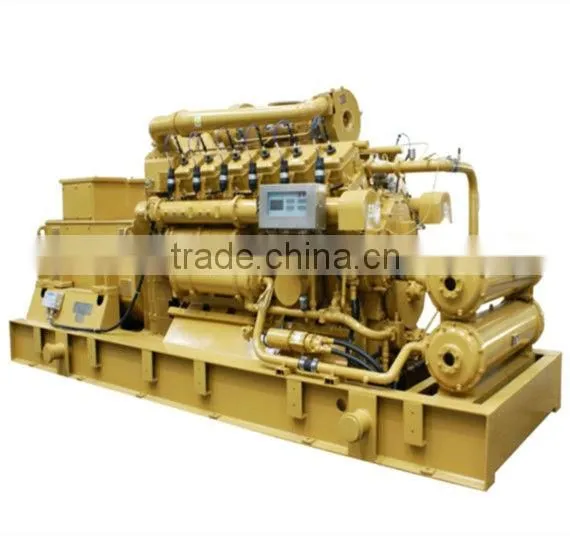

75GFZ-T 190 Series Outer Mixing Gas Engines and Generating Unit

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Tianjin Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Fuel	Natural Gas
Stroke	Other, 4 Stroke, 210mm	Cylinder	Multi-cylinder
Cold Style	Other, Water-cooled	Start	Other, electric motor
Place of Origin	Shandong, China	Brand Name	SINOTAI
Model Number	190 Series	Dimension(LWH)	376615601737
Weight	5300kg	Warranty	free for 1 year
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

standard export package

Product Description

Specifications

1.Good economic performance targets
2.Easy operation and maintenance
3.Compact structure
4.High power
5.Perfect reliability

190 Series Outer Mixing Gas Engines and Generating Unit

Product Explanation:The 190 gas engines have formed a series which are widely used in oil fields and other places with rich fuel gas, bringing tremendous economic benefits. Rated power:110~550kW Rated speed:1000~1500r/min

Product Features:

Series 190 outer mixing gas engine is the first generation of gas engine developed by our company based on the 190 diesel engine. It fills up the gap of turbocharged high-power gas engine in China, and the main targets reach the world advanced level of 1980s After continual improvement for years.

Product types and specifications:

Model of generating sets	Model of gas engine	Rated power (kW/kVA)	Rated voltage (V)	Rated frequency(Hz)	Overall dimension (L×B×H)(mm)	Net weigh(kg)	Fuel
75GFZ-T	4190T1-2	75/93.75	400/230	50	3766×1560×1737	5300	Natural gas
125GFZ-T	4190ZLT1-2	125/156.25	400/230	50	4106×1900×1896	7500	Natural gas
210GFZ-T	6190ZLT-2	210/262.5	400/230	50	5105×2006×2110	8690	Natural gas
250GF-TK	6190ZLT-2	250/312.5	400/230	50	4935×1760×2441	8690	Natural gas
400GF-NK	12V190Z-2	400/500	400/230	50	5120×2200×2312	11300	Biogas
450GF1-NK	12V190ZLDZ-2	450/562.5	400/230	50	5120×2200×2312	11300	Biogas
500GF18-TK	12V190ZDT-2	500/625	400/230	50	4566×2040×278	11800	Natural gas

Model	Rated power (kW)	Rated speed (r/min)	Compression ratio	No. and layout of cylinders	Overall dimension (L×B×H)(mm)	Net weigh (kg)	Fuel
4190T1-2	110	1000	9:1	4 in-line	2405×1442×1645	3000	Natural gas
4190ZLT1-2	165	1000	10:1	4 in-line	3560×1525×1730	3000	Natural gas
6190ZLT-2	270	1000	8:1	4 in-line	2990×1725×1801	3960	Natural gas
12V190ZLDM-2	500	1000	8:1	12V,60°	2670×1588×2072	5300	Coal gas
12V190Z-2	500	1000	9:1	12V,60°	2670×1588×1898	5300	Biogas
12V190ZDT-2	550	1000	8:1	12V,60°	2670×1588×2538	5300	Natural gas

Type	Four stroke,water cooled,turbocharged and aftercooled,spark plug ignition,outer mixing
Bore	190mm
Stroke	210mm
Direction of rotation	Counter-clockwise(facing to flywheel)
Starting method	Electric motor
Lubricating method	Pressure and splash lubrication
Specific heat consumption	≤11386kJ/kW.h
Specific oil consumption	≤1.63g/kW.h
Stable speed regulating rate	0~5% adjustable
