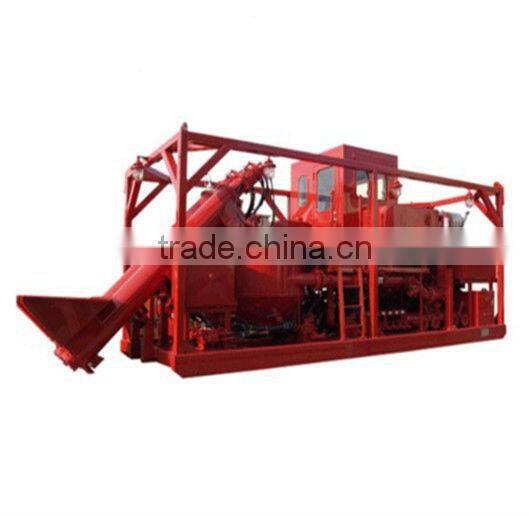

HSQ50 Sand Blending Skid for acidizing operations

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Tianjin Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	SINOTAI
Model Number	HSQ50	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Standard export package or as consumer's need

Product Description

Specifications

1. Stable performance
2. High blending capability
3.Fully hydraulically driven
4.High displacement

HSQ50 Sand Blending Skid

Product Explanation: HSQ50 sand blending skid is widely used for various fracturing operations, and work together with fracturing trucks and instrument vans.

1. It is a unitized equipment for Medium and light duty fracturing,acidizing operations.

2. Full hydraulic driving. The power of operating parts comes from deck engine, and installed power is up to 450hp.

3. It can be equipped with many automatic control system, including liquid level control, density control, liquid additive control, and discharge control system.

Technical Data

Max displacement of sand pump bmp(m3/min)	50(8)(Water)
Max. working pressure psi (MPa)	70(0.5)
Suction/discharge sand pump	MISSION 8"×6"×14"
Max feeding capacity of sand feeder,ppm(kg/min)	10000(4550)
Displacement of liquid additive systems gpm(L/min)	50(189)
Displacement of dry additive system gpm(L/min)	27(102)
Volume of blending tank bbl(m3)	9.4(1.5)
Deck engine	CAT C11
Engine power hp(kW)	450(336)@1800r/min
Overall dimensions (L×W×H)in(mm)	335×98×103 (8500×2500×2600)
Total weight lb(kg)	28660(13000)

Optional parts:
Liquid additive system
Dry additive system
Radioactive densitometer
Dismountable operation room of platform

Remote control, network
Control/local control
Multiple forms of layout of suction and discharge manifolds
Air butterfly valves
Working mode of spiral sand feeder
Automatic control system
