Main feature:
1. QJ series desilter is the third class solids control equipment to treat the drilling fluids.
2. According to the size of the cone diameter, they are divided into desander and desilter.
3.Usually the cone diameter is less than 6″is called desilter, and used as the third-control equipment in drilling operation.
4.We commonly used 5 "and 4" cone to separate solid-phase particle size 15-47μm in the drilling fluid.

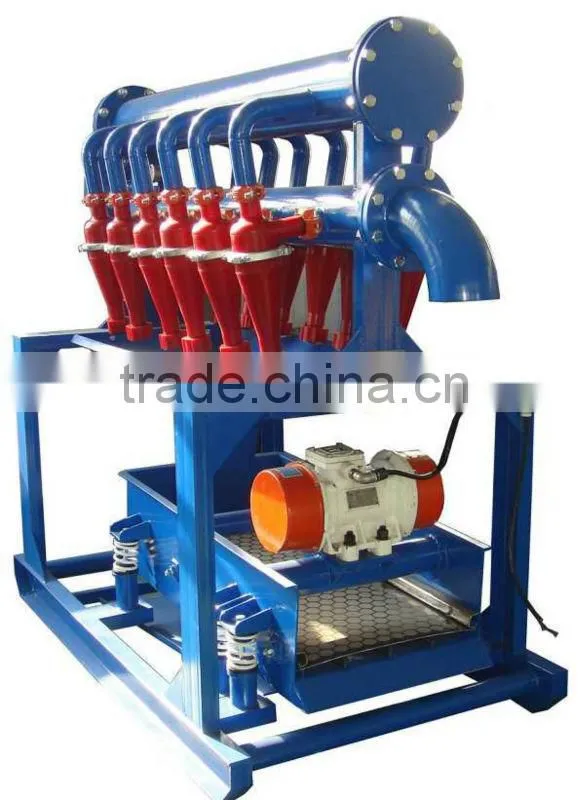

Desilter
QJ Desilter Technical Parameters:
Model |
ZQJ100S |
ZQJ100 |
Capacity |
≤240m3/h (1056GPM) |
≤240m3/h(1056GPM) |
Screen area |
1.0M2 (600*1600mm) |
no under fluids shaker |
Cone size |
4" (Each 4" Cones= 50-75GPM) |
|
Cone number |
2-12 Ea cones, specify cones No. when ordering |
|
Pressure |
0.20~0.4Mpa |
0.20~0.4Mpa |
Matching pump |
SB4×3-12(11kw) SB5×4-13(30KW) SB6×5-13(37KW) SB8×6-13(55KW) |
SB4×3-12(11kw) SB5×4-13(30KW) SB6×5-13(37KW) SB8×6-13(55KW) |
Inlet Size |
75-150mm |
|
Outlet Size |
125-200mm |
|
Separation size |
15-20 μm |
|
