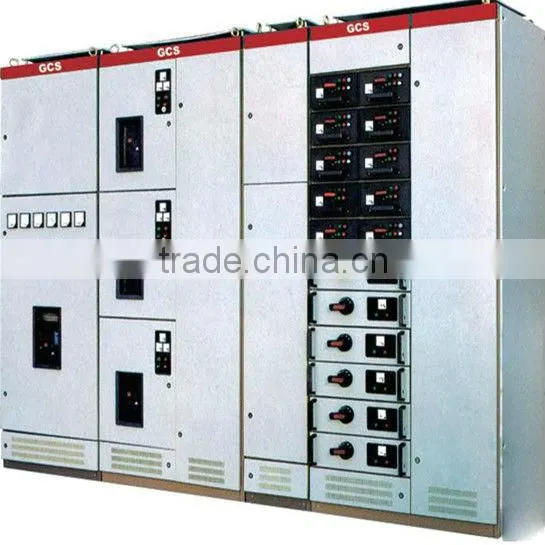

GCS Low-VoltagWithdrawable Switchgear

Name: GCS Low-VoltagWithdrawable Switchgear
Brand: Sinotai
SKU: 119574165
Availability: InStock

GCS Low-VoltagWithdrawable Switchgear thumbnail-1

GCS Low-VoltagWithdrawable Switchgear photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

Sinotai

Model Number:

GCS

Contact Supplier Request Quote Chat Now

Sinotai Petroleum Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name Sinotai

Model Number GCS

Output Power 101 - 200W

Output Type Triple

Output Voltage 330

GCS Low-Voltage Withdrawable Switchgear

Product Explanation:Using in high automation and computer-based place such as big power stations,petrochemical engineering and chemical industry as centralized controlling,current limiting and reactive power compensation of generating/feed system of three phase current 50~60HZ,rated current 4000A,AC380/660

Product Features:

GCS low-voltage withdrawable switchgear is made of PDC and MCC

Product types and specifications:

The Parameter of the GCS Low-Voltage Withdrawable Switchgear
The Rated Voltage of Main Circuit(V)	AC380,(660)
The Rated Voltage of Aided Circuit(V)	AC220,(380)
The Rated Voltage of Aided Circuit(V)	DC110,220
Rated Frequency(Hz)	50,(60)
Rated Isolation Voltage(V)	660
Withstand Voltage(V)	2500
Rated Current of Level Bus(A)	1600,2500,3150,4000
Rated Current of Vertical Bus(A)	1000
Rated short-time Tolerance Current rms Value of the Bus	50,80(KA/1S)
The rated peak tolerance current of the Bus	105,176(KA/0.1S)
The Rated Short-Circuiting Breaking Current rms Value of Feeder Circuit	50(KA/1S)
Connector of the Main Circuit(A)	200,400
Connector of the Aided Circuit(A)	15
Control Motors Max Power(kw)	200
Protection Grade	IP30 ,IP40
Operation Manner	Near,Far,Auto
