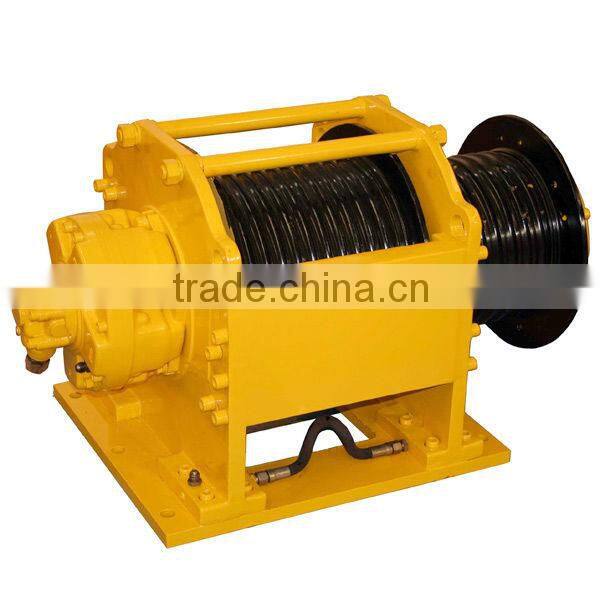

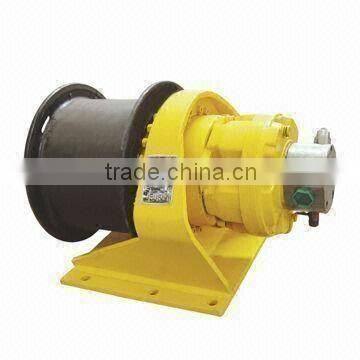

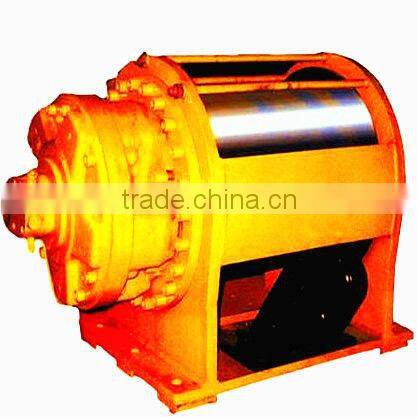

API Spec 7K Rotary Cathead

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Tianjin Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	SINOTAI
Model Number	YXM Type	Type	Other, Rotary Cathead
Machine Type	Drilling Equipment	Certification	API
Material	Carbon Steel	Processing Type	Casting
Use	Well Drilling

Packaging Details

Standard export package or as consumer's need

Product Description

Specifications

1.Rotary Cathead
2.Low noise, safe and reliable.
3.Competive price
4.High start torque, stable running
5.API spec 7K

Rotary Cathead

Product Explanation:The rotary cathead is widely used to tighten or loosen joint in drilling and service operation. It also is applicable for hauling and lifting weight. The cathead is hydraulically driven, hydraulic and pneumatic brake. It feathers high start torque, stable running, low noise, safe and reliable.
Product types and specifications:

Model		YXM-2	YXM-5	YXM-13	YXM-16	YXM-10/3		YXM-18/3
Model		YXM-2	YXM-5	YXM-13	YXM-16	secondary drum	main drum	secondary drum	main drum
Flow rating	L/min	40	120	120	120	120		120
Flow rating	gpm	10.6	31.7	31.7	31.7	31.7		31.7
Pressure rating	MPa	16.6	16.6	16.6	20	16.6		20
Pressure rating	psi	2400	2400	2400	2900	2400		2900
Max.Pull	kN	20	50	130	160	30	100	30	180
Max.Pull	US ton	2.2	5.5	14.3	17.6	3.3	11	3.3	19.8
Max.rope speed	m/min	30	30	14	14	65	15	54	10.8
Max.rope speed	ft/min	98	98	46	46	212	49	176	35
Wire rope diameter	mm	10	30	24	26	25.4	24	25.4	25.4
Wire rope diameter	in	3/8	13/16(Coir rope)	15/16	11/32	1 (Coir rope)	15/16	1 (Coir rope)	1
Rope storage	m	15	10	40	40	50	40	12	20
Rope storage	ft	49	32.75	131	131	164	131	39	65.5
Size	mm	580×400×430	795×500×450	1120×730×750	1120×730×750	1075×580×618		1780×1280×1220
Size	in	23×16×17	31.3×19.7×17.7	44×29×29.5	44×29×29.5	42×23×24		70×50×48
Weight	kg	160	210	400	410	800		2480
Weight	lb	350	460	880	900	1760		5465
