Home > Products > well head tools > YJ16/60 Hydraulic Winches

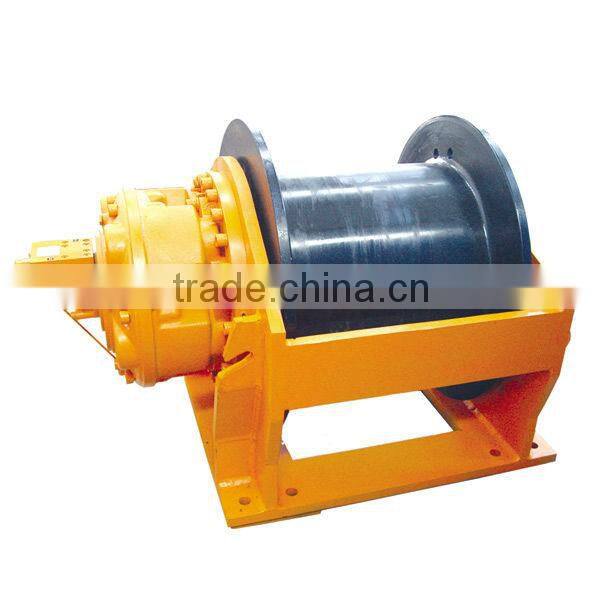

YJ16/60 Hydraulic Winches
- Tianjin Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | SINOTAI | |
| Model Number | YJ16/60 | Type | Other, hydraulic winches | |
| Machine Type | Drilling Equipment | Certification | API | |
| Material | Carbon Steel | Processing Type | Casting | |
| Use | Well Drilling |
Standard export package or as consumer's need
Product Description
Specifications
1.YJ hydraulic2.Compact structure, light weight
3.Competive price
4.Perfect after-sale service
5.Convenient operation

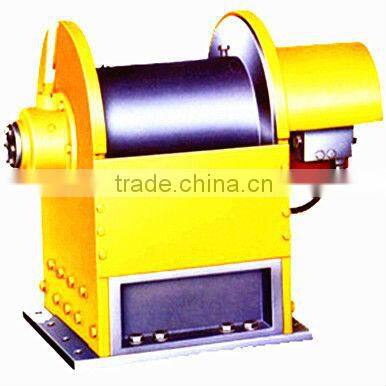

Hydraulic Winches
Product Explanation:This hydraulic winch is a lifting equipment driven and braked by hydraulic. It has the advantages of compact structure, light weight, convenient operation and stable lifting. It is used to lift heavy objects in mines, ports and building engineering.
Product types and specifications:
Model | YJ3/110 | YJ5/100 | YJ16/60 | YJ16/100 | |
Flow Rating | L/min | 120 | 120 | 120 | 120 |
gpm | 31.7 | 31.7 | 31.7 | 31.7 | |
Pressure Rating | MPa | 16.6 | 16.6 | 16.6 | 16.6 |
psi | 2400 | 2400 | 2400 | 2400 | |
Max.Pull | kN | 30 | 50 | 160 | 160 |
US ton | 3.3 | 5.5 | 17.6 | 17.6 | |
Max.Line Speed | m/min | 23 | 11 | 5.8 | 5.8 |
ft/min | 73 | 36 | 19 | 19 | |
Wire Rope Diameter | mm | 12.7 | 20.5 | 28 | 28 |
in | 1/2 | 3/4 | 13/32 | 13/32 | |
Rope storage | m | 110 | 100 | 60 | 100 |
ft | 360 | 328 | 197 | 328 | |
Size | mm | 810×490×500 | 880×520×710 | 1340×930×900 | 1520×930×900 |
in | 32×19×20 | 35×21×28 | 52.8×36.6×35.4 | 59.5×36.6×35.4 | |
Weight | kg | 490 | 490 | 1150 | 1250 |
lb | 1080 | 1080 | 2530 | 2750 | |
