Specifications
1.ZQIII Series Drill Pipe Power Tongs2.API Spec 7K
3.Good quality
4.Size range:3 1/2~8
5.Max torque:100-125

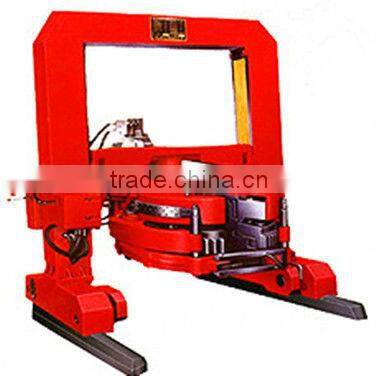

ZQIII Series Drill Pipe Power Tongs
Product Explanation:
1.ZQ series of drill pipe power tong marked with III are developed types from ZQ203-100 power tong.
2.The power tong can be fixed on the accommodation track for front and back walk.
3. It can pass across the well head and go to the mouse hole for working.
4.Master tong can move upward and downward. Walk and lift of the tong can be remote controlled and automatically handled. Especially suitable for the occation with small wellbay suface.
Product types and specifications of Drill Pipe Power Tongs :
Model |
ZQ203-100 |
ZQ203-125 |
||
Size range |
Drill pipe |
mm |
127-203 |
127-203 |
in |
31/2~8 |
31/2~8 |
||
Casing |
mm |
|
|
|
in |
|
|
||
Tubing |
mm |
|
|
|
in |
|
|
||
Max.torque |
kNm |
100 |
125 |
|
ft.lbf |
73750 |
92200 |
||
Speed(High gear) |
rpm |
40 |
40 |
|
Speed(Low gear) |
rpm |
2.7 |
2.7 |
|
Air pressure |
MPa |
0.5–0.9 |
||
psi |
72–130 |
|||
Pressure rating |
MPa |
16.6 |
20.7 |
|
psi |
2400 |
3000 |
||
Flow rating |
L/min |
114 |
114 |
|
gpm |
30 |
30 |
||
Travel distance |
mm |
0–3000 |
0–3000 |
|
in |
0–118 |
0–118 |
||
Lifting distance |
mm |
0–800 |
0–800 |
|
in |
0–31.5 |
0–31.5 |
||
Size |
mm |
1760×1830×2050 |
1760×1830×2050 |
|
in |
69×71.7×81 |
69×71.7×81 |
||
Weight |
kg |
3250 |
3700 |
|
lb |
7165 |
8100 |
||
