CHENF 5kw latest technology variable frequency dc to ac pure sine wave hybird solar inverter

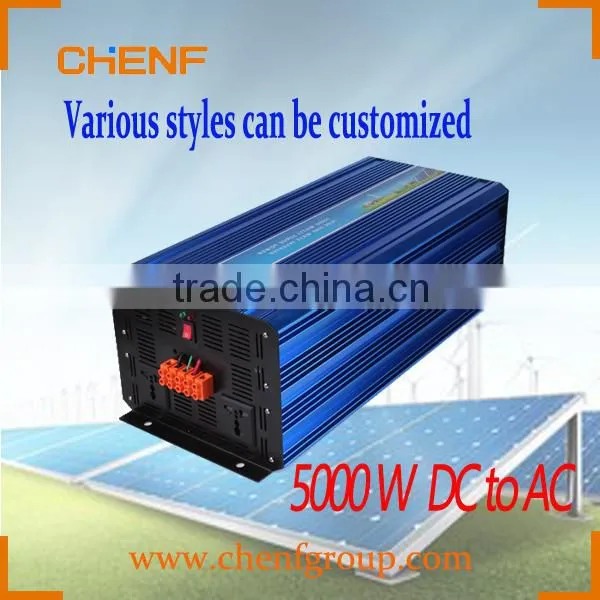

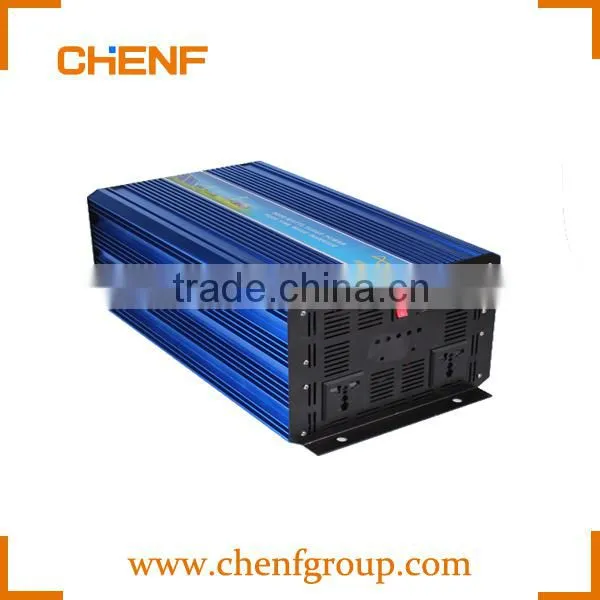

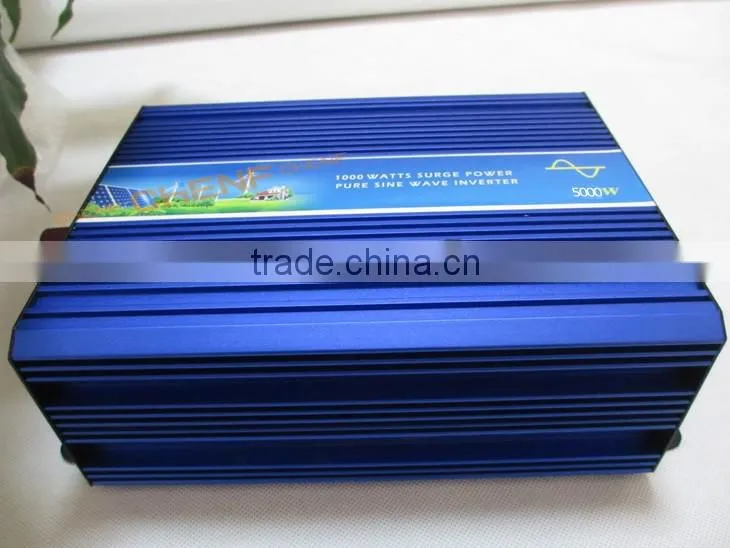

Apperance show
Production parameters
Model |
CF-5000Y |
CF-6000Y |
||||
Input |
DC voltage |
12V |
24V |
48V |
110V |
|
Voltage range |
10-16VDC |
20-33VDC |
40-63VDC |
90-130VDC |
||
No load current draw |
3A |
1.5A |
0.8A |
0.4A |
||
efficiency |
>90% |
|||||
DC connection |
Cables with Clips or Car Adaptor |
|||||
Output |
AC voltage |
100/110/120VAC or 220/230/240 VAC |
||||
Continuous power |
5000W |
6000W |
||||
Surge power |
10000W |
12000W |
||||
Waveform |
Pure sine wave |
|||||
Frequency |
50HZ or 60HZ |
|||||
AC regulation |
3% |
|||||
Protection |
Low voltage alarm |
11DC±0.5V |
22DC±1V |
44VDC±1V |
100VDC±3V |
|
Low voltage shut down |
10DC±0.5V |
20DC±1V |
40VDC±1V |
90VDC±3V |
||
Short current |
Shut off output automatically |
|||||
Overload |
Shut off output |
|||||
Over voltage shut down |
16±0.5V |
33±1V |
63±1V |
130±3V |
||
Over thermal |
Shut off output automatically |
|||||
Environment |
Working temperature |
|
‘-10℃~+50℃ |
|||
Working humidity |
|
20%~90%RH |
||||
storage temperature |
|
‘-30℃~+70℃ |
||||
Packing |
Machine size(mm) |
|
520*217*153 550*217*153 |
|||
Packing size(mm) |
|
475*230*148 560*230*148 |
||||
Net weight(kg) |
|
13.1 14.25 |
||||
Gross weight(kg) |
|
15.5 16.8 |
||||
Other |
Start |
Soft start |
||||
Cooling |
Intelligent cooling fan |
|||||
Features
1.Large LCD display for more details content;
2.CPU controlled ,fast transfer time;
3.Intelligent battery maganement prolonging the service life of the battery.
4. Complete protection function high reliability.
Applicable For
1. Travel set equipment :milittary vehicles , police cars , ambulance , ships , traffic light etc.
2.Industrial equipment : solar energy , wind power , gas discharge lamps , etc.
3. Office euipment : computers , printers , copiers , scanners , digital cameras , etc.
4. ............
Comstomized
The design of products can be customized freely according to
customer's requirements.
Socket panel can change according to customer'requirements
we have what you want !!!
Packing detils: Conventional packing
Delivery Detail: 20~25days
our company and profuction line
Production Packing and shipping
Payment terms
