CHENF Chinese manufacturers wholesale 500w Normal Specification pure sine wave single output power inverter

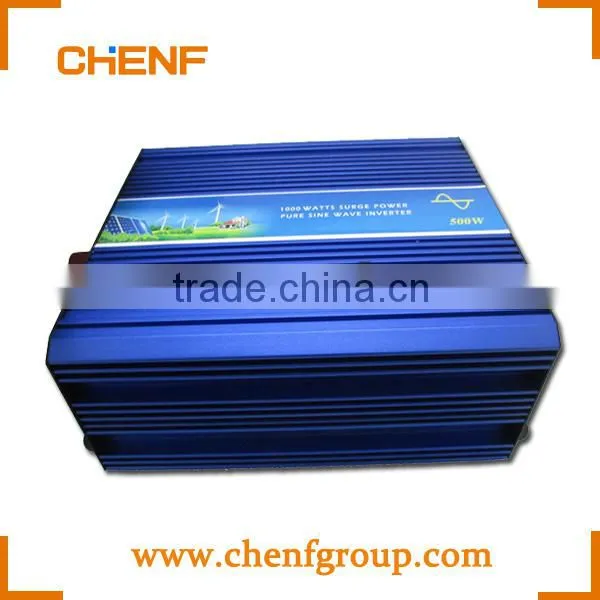

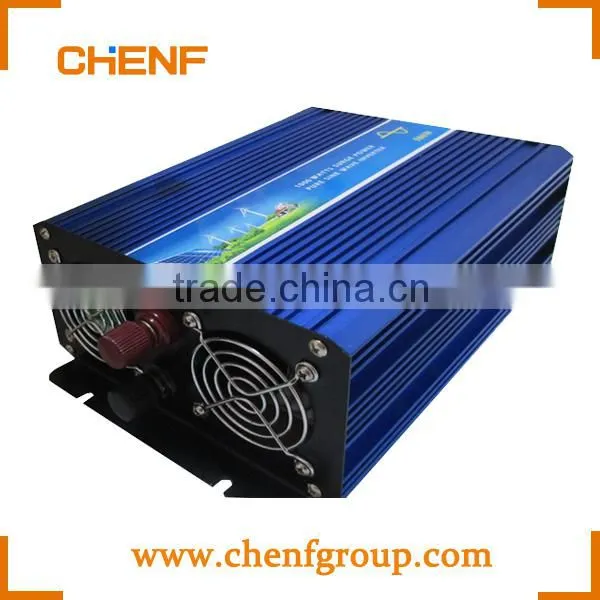

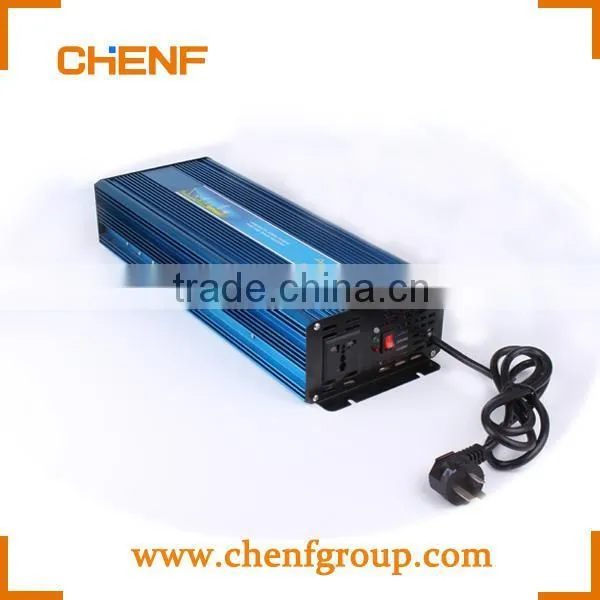

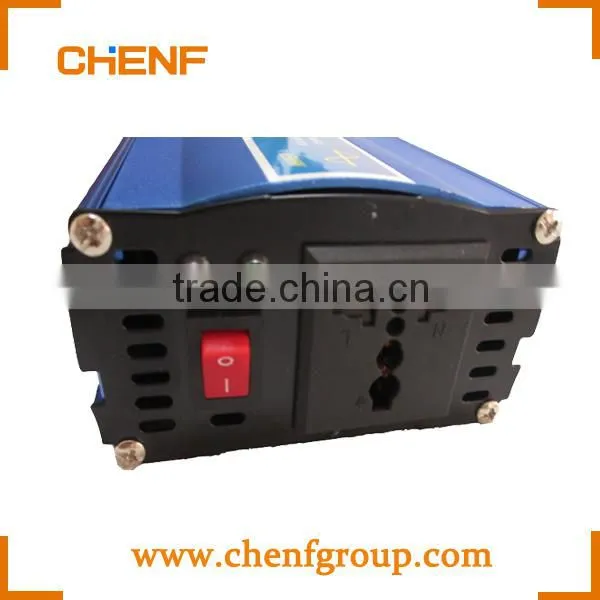

Apperance show
Production parameters
Model | CF-500Y | CF-600Y | ||||
Input | DC voltage | 12V | 24V | 48V | 110V | |
Voltage range | 10-16VDC | 20-33VDC | 40-63VDC | 90-130VDC | ||
No load current draw | 0.5A | 0.3A | 0.2A | 0.3A | ||
efficiency | >90% | |||||
DC connection | Cables with Clips or Car Adaptor | |||||
Output | AC voltage | 100/110/120VAC or 220/230/240 VAC | ||||
Continuous power | 500W | 600W | ||||
Surge power | 1000W | 12000W | ||||
Waveform | Pure sine wave | |||||
Frequency | 50HZ or 60HZ | |||||
AC regulation | 3% | |||||
Protection | Low voltage alarm | 10.5DC±0.5V | 21DC±1V | 42VDC±1V | 96VDC±3V | |
Low voltage shut down | 10DC±0.5V | 21DC±1V | 40VDC±1V | 90VDC±3V | ||
Short current | Shut off output automatically | |||||
Overload | Shut off output | |||||
Over voltage shut down | 16±0.5V | 33±1V | 63±1V | 130±3V | ||
Over thermal | Shut off output automatically | |||||
Environment | Working temperature |
| ‘-10℃~+50℃ | |||
Working humidity |
| 20%~90%RH | ||||
storage temperature |
| ‘-30℃~+70℃ | ||||
Packing | Machine size(mm) |
| 265*165*85 | |||
Packing size(mm) |
| 365*230*148 | ||||
Net weight(kg) |
| 2.5 | ||||
Gross weight(kg) |
| 3 | ||||
Other | Start | Soft start | ||||
Cooling | Intelligent cooling fan | |||||
Features
1.Large LCD display for more details content;
2.CPU controlled ,fast transfer time;
3.Intelligent battery maganement prolonging the service life of the battery.
4. Complete protection function high reliability.
Application range
1. Travel set equipment :milittary vehicles , police cars , ambulance , ships , traffic light etc.
2.Industrial equipment : solar energy , wind power , gas discharge lamps , etc.
3. Office euipment : computers , printers , copiers , scanners , digital cameras , etc.
4. ............

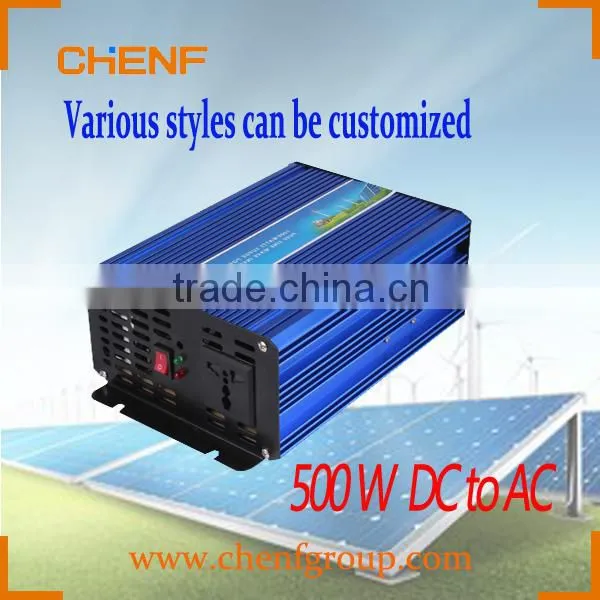

The design of products can be customized freely according to
customer's requirements.
Socket panel can change according to customer'requirements
we have what you want !!!
Packing detils: Conventional packing
Delivery Detail: 20~25days
our company and profuction line
Production Packing and shipping
Payment terms
