Home > Products > Energy - Electrical Product > CHENF 6000W dc to ac electric power saver Pure sine wave inverter City Electricity Complementary
CHENF 6000W dc to ac electric power saver Pure sine wave inverter City Electricity Complementary
- 1000 Piece / Pieces per Month
- Ningbo
- T/T Credit Card
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | chenf | Model Number: | CF-6000H |
Output Power: | 1 - 200KW | Output Type: | Dual | Size: | 630*300*230 |
Weight: | 15.85kg | Input Voltage: | 48V | Output Voltage: | 100/110/120VAC |
Type: | DC/AC Inverters | Output Frequency: | 50Hz/60Hz | Output Current: | 2A |
Product Description
CHWNF 6000W dc to ac electric power saver Pure sine wave inverter City Electricity Complementary
Apperance show
Best selling inverter
off-grid inverter
Production parameters
Model | CF-5000H | CF-6000H | ||||
Input | DC voltage | 12V | 24V | 48V | 110V | |
Voltage range | 10-16VDC | 20-33VDC | 40-63VDC | 90-130VDC | ||
No load current draw | <2A | |||||
Efficiency | >90% | |||||
DC connection | Cables with terminal | |||||
AC connection | Power line with plug | |||||
Output | AC voltage | 100/110/120VAC or 220/230/240 VAC | ||||
Continuous power | 5000W | 6000W | ||||
Surge power | 10000W | 12000W | ||||
Waveform | Pure sine wave | |||||
Frequency | 50HZ or 60HZ | |||||
AC regulation | 3% | |||||
The mains bypass output | 100/110/120VAC OR 220/230/240 VAC | |||||
Protection | Low voltage alarm | 11DC±0.5V | 22DC±1V | 44VDC±1V | 100VDC±3V | |
Low voltage shut down | 10DC±0.5V | 20DC±1V | 40VDC±1V | 90VDC±3V | ||
Short current | Shut off output automatically | |||||
Overload | Shut off output | |||||
Over voltage shut down | 16±0.5V | 33±1V | 63±2V | 130±3V | ||
Over thermal | Shut off output automatically | |||||
Environment | Working temperature | ‘-10℃~+50℃ | ||||
Working humidity | 20%~90%RH | |||||
storage temperature | ‘-30℃~+70℃ | |||||
Packing | Machine size(mm) | 600*217*153 | 630*217*153 | |||
Packing size(mm) | 685*300*230 | 715*300*230 | ||||
Net weight(kg) | 14.45 | 15.85 | ||||
Gross weight(kg) | 16.52 | 18.2 | ||||
Packing mode | Carton packaging | |||||
Other | Start | Soft start | ||||
Cooling | Intelligent cooling fan |
Features
1.Large LCD display for more details content;
2.CPU controlled ,fast transfer time;
3.Intelligent battery maganement prolonging the service life of the battery.
4. Complete protection function high reliability
5.The mains bypass output,suitable for wind and solar power generation system.
Chinese manufacturers wholesale inverter
Applicable For
1. Travel set equipment :milittary vehicles , police cars , ambulance , ships , traffic light etc.
2. Industrial equipment : solar energy , wind power , gas discharge lamps , etc.
3. Office euipment : computers , printers , copiers , scanners , digital c ameras , etc.
4. ............
City Electricity Complementary Inverter

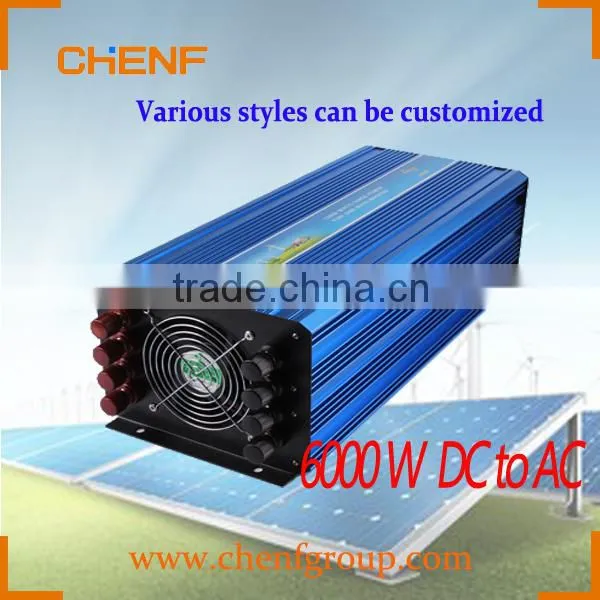

Comstomized
The design of products can be customized freely according to
customer's requirements.
Socket panel can change according to customer'requirements
we have what you want !!!
Packing detils: Conventional packing
Delivery Detail: 20~25days
Solar or Wind inverter
Solar or Wind inverter
our company and profuction line
Production Packing and shipping
Payment terms
6000w inverter City Electricity Complementary
Contact Us
- Yueqing Chenf Electric Co., Ltd.
- Contact nameEric Chen
- Phone0086-577-61775611
- AddressBldg. A10, Tuoxin Rd., Liushi Town, Yueqing
