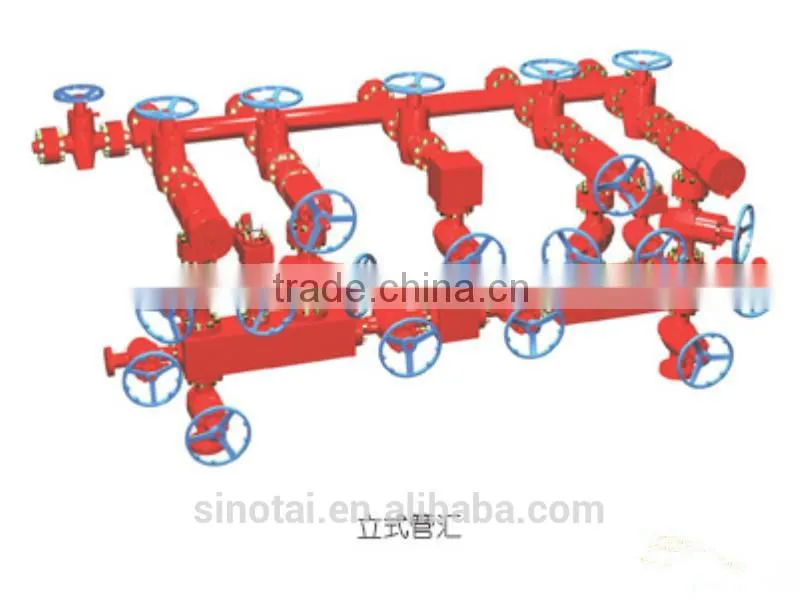

API 16C Sea Combination manifold
Main features
Combine choke function with kill function of manifold to save platform space.
Working pressure: 2000PSI~20000PSI
Nominal bore: 2 1/16” ~ 4 1/16”(46mm~103mm)
Working medium: oil, natural gas, mud
Working temperature: -46℃~121℃( class LU)
Line: API16C standard
Main technical performance and specification
No |
Working temperature |
Nominal diameter |
Bypass diameter |
1 |
140Mpa(20000psi) |
103mm (4 1/16”) |
103mm (4 1/16”) |
2 |
105Mpa(15000osi) |
103mm (4 1/16”) |
103mm (4 1/16”) |
3 |
70Mpa(10000psi) |
78mm( 3 1/16”) |
78mm( 3 1/16”) |
4 |
35Mpa( 5000psi) |
80mm (3 1/8”), 52mm (2 1/16”) |
80mm (3 1/8”), 52mm (2 1/16”) |
5 |
21Mpa(3000psi) |
80mm (3 1/8”), 52mm (2 1/16”) |
80mm (3 1/8”), 52mm (2 1/16”) |
6 |
14Mpa(2000pai) |
80mm (3 1/8”), 52mm (2 1/16”) |
80mm (3 1/8”), 52mm (2 1/16”) |

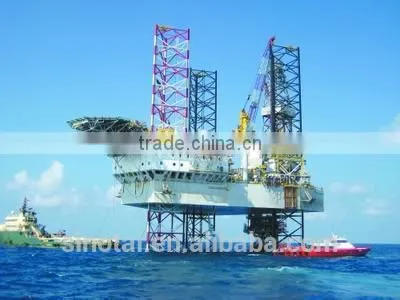

Working site

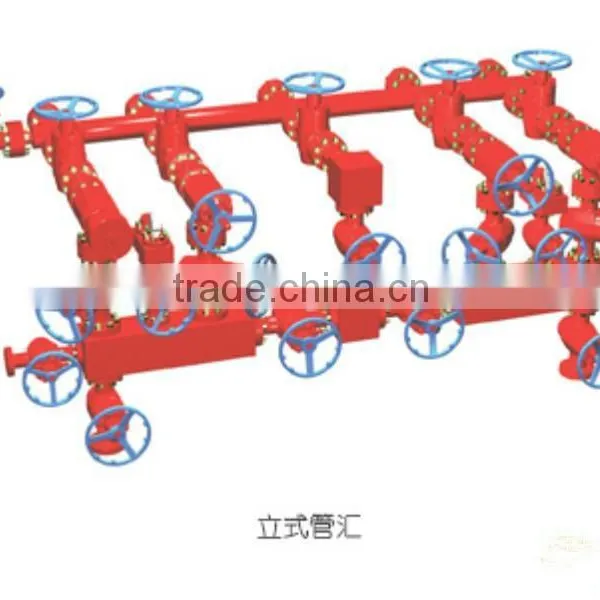

Products Show:
Any question about our products, please no hesitate to contact me!!
