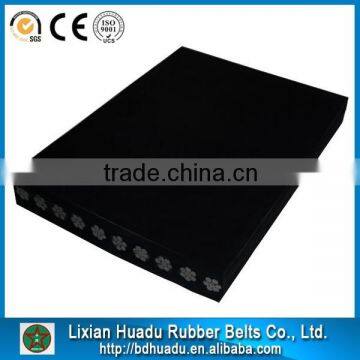

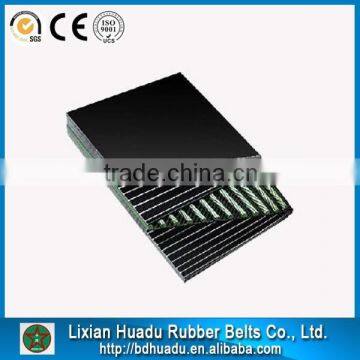

Industry High Quality Heavy Duty Stainless Steel Wire Conveyor Belt

PVC water-proof cloth, wooden box, Steel fram

Specifications

Industry High Quality Heavy Duty Stainless Steel Wire Conveyor Belt





Cover Compounds:

General, Fire-resistant, Cold-resistant, Abrasion-resistant, Heat-resistant and Chemical-resistant.



steel cord induatrial belts ensure maximum conveying performance, even under grueling stress conditions. Their robust design guarantees high tensile strength at maximum conveying capacity as well as excellent impact resistance. Wear-resistant, rot and corrosion-resistant, resistant to chemicals and thermally stable, our conveyor belts provide long years of service while requiring little maintenance.



Properties of steel cord industrial belt:

• Steel cord as tension member (ST 630 – ST 6300)
• up to 1400 mm bandwidth
• Few splices & transition areas
• High breaking load at maximum conveying capacity
• Wear resistant, rot- and corrosion-resistant, resistant to chemicals and thermally stable
• Fire retardant and anti-static
• Little maintenance required

Cover Compounds of steel cor industrial conveyor belt

General type, Fire-resistant, Cold-resistant, Abrasion-resistant, Heat-resistant and Chemical-resistant.



Standards offered: GB/T9770, DIN22131, EN ISO 15236, SANS1366 and AS1333.



Features:

1. High tensile strength:Steel cord conveyor belt is suitable for large span,long distance transportation of materials

2. Small elongation in use:It need only a very short take-up stroke distance.

3. Small diameter of drive pulley:Steel cord conveyor belt body has a layer of longitudinally arranged steel cords as its skeleton,and thus is resistant to flex fatigue.Therefore,drive pulley of smaller diameter can be used to make the equipment smaller.

4.High adhesion between rubber and steel cord:The steel cords are coated with zinc on their surface,and also the rubber used has the property of qood adhesion with steel cords.Therefore,the rubber is tighrly adhered to the steel cords and is resistant to shock and difficult to drop,so the rubber belts are long in life.

5.Even tension of steel cords:Out of our advanced techniques in manufacturing,the steel cords are very evenly arranged and have the same tension,so the belts are well balanced in running and difficult to run awry.

6. Good troughability:As the belt body has no transverse skeleton,it is easyv to from a deep trogh,so the belts can load more materials and prevent the materials from escaping.

7.Good troughability:Steel cord conveyor belt boby has no transverse skeleton,it is easy to from a deep trough,so the belts can load more materials and prevent the materials from escaping.

8.Inspection of the belt with X-rays:Users can X-rays to inspect damages of the skeleton steel cords on the conveyor machines to prevent accidents from happening.

















Lixian Huadu Rubber Belts Co., Ltd. is a professional supplier of rubber products, located near to Beijing & Tianjin. We are near to Beijing-Guangzhou & Beijing-Kowloon railways and Beijing-Shenzhen Expressway, enjoying convenient transportation.

Since inception, we have introduced advanced production equipment and testing instruments, and strived to produce high quality rubber products. Our main products are: a variety of general conveyor belts, steel cord conveyor belts, flat belts, etc. Our products are sold to more than 31 large and medium-sized cities and regions, well received by consumers.

Our company insists on "Quality is Life". We won titles like "Trustworthy Unit" & "Product Quality Trustworthy Enterprise". We have has a high reputation in the industry. We warmly welcome friends to cooperate with us to create a brilliant tomorrow.



Our Company:



Testing:



Certification:





1.Is OEM available?

Yes, OEM is available. We have professional designer to help your brand promotion.



2.Is the sample available?

Yes, samples are available for you to test the quality.If we have samples in warehouse,freight can be paid by your side.



3.Are the products tested before shipping?

Yes, all of our rubber belt ,conveyor belt  was qualified before shipping. We test every batch every day.



4.What’s benefit will you bring?

Your client satisfied on the quality.

Your client continued orders.

Your can get good reputation from your market and obtain more orders.



For more details,please inquiry us!

Polyester conveyor belt, (EP)
Nylon conveyor belt, (NN)
Cotton conveyor belt, (CC)

Sidewall conveyor belt (SW)
Chevron conveyor belt, (C5 C10 and C15)
Oil Resistance conveyor belt, (OR and MOR)
Hot Resistance conveyor belt, (HR)
Fire Resistance conveyor belt, (FR/PVC/PVG)
Heat Resistance conveyor belt, (OHR/ OFR)
Cold Resistance conveyor belts, (CR)
Endless belts

Conveyor roller, idler

Conveyor Pulley, frame,bracket  etc

WELCOM TO INQUIRY US.
