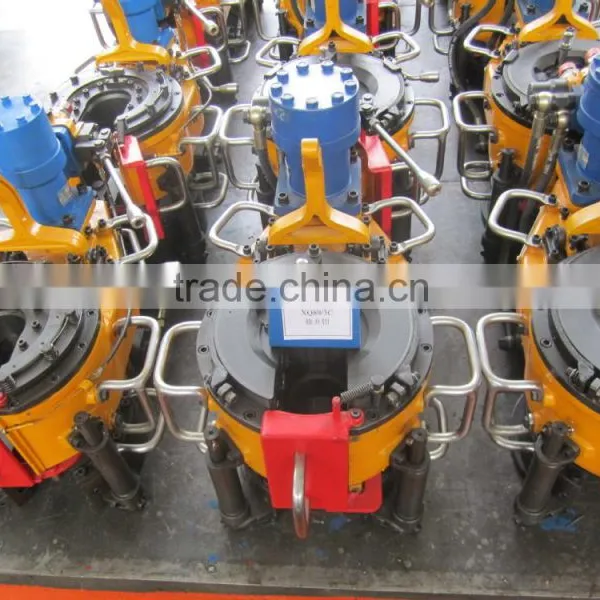

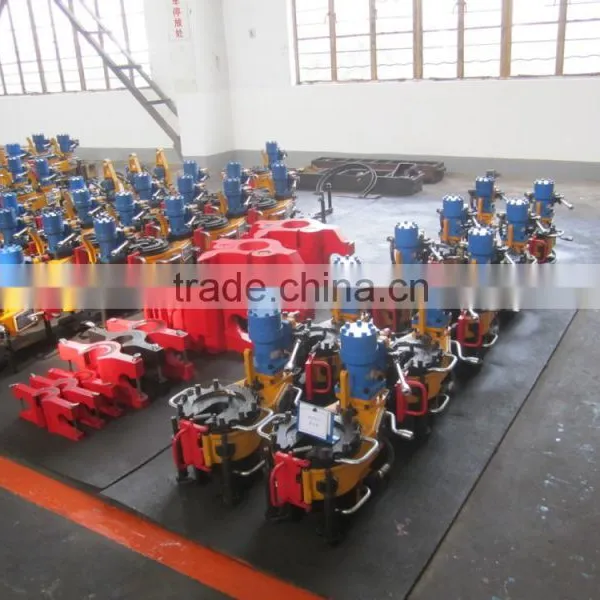

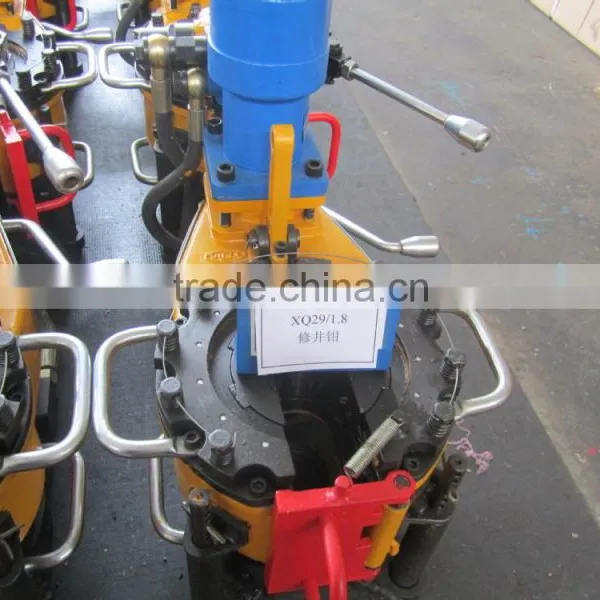

Oilfield Sucker Rod Tong
This series suck rod power tong is used for quick make-up/break-out sucker rod in well service operations
Product features:
1,clamp the sucker rod use corresponding jaw set
2,dies may be equipped to master tong according to customer’s request
3,torque control valve maybe equipped according to customer’s request
Product types and specifications of sucker rod tong:
Model |

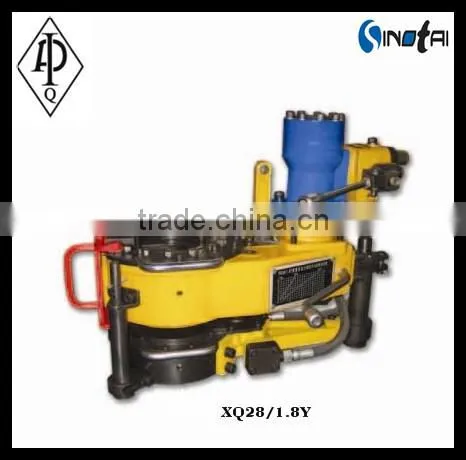

XQ28/1.8Y |
XQ28/2.6Y |
Pipe size range of master tong |
5/8”-1-1/8”sucker rod, 1-7/8”-23/8” tubing |
5/8”-1-1/8” sucker rod |
Pipe size range of backup tong |
5/8”-1-1/8”sucker rod, 1-7/8”-23/8” tubing |
5/8”-1-1/8” sucker rod |
High gear rated torque |
700N.M |
1000N.M |
Low gear rated torque |
1800N.m |
2600N.m |
High gear rated speed |
104r/min |
98r/min |
Low gear rated speed |
40r/min |
32r/min |
Rated operation pressure |
10Mpa |
10Mpa |
Max. Flow |
65L/min |
80L/min |
Dimension:L*W*H |
543*334*404 |
670*383*490 |
Weight (including backup tong) |
105kg |
100kg |
