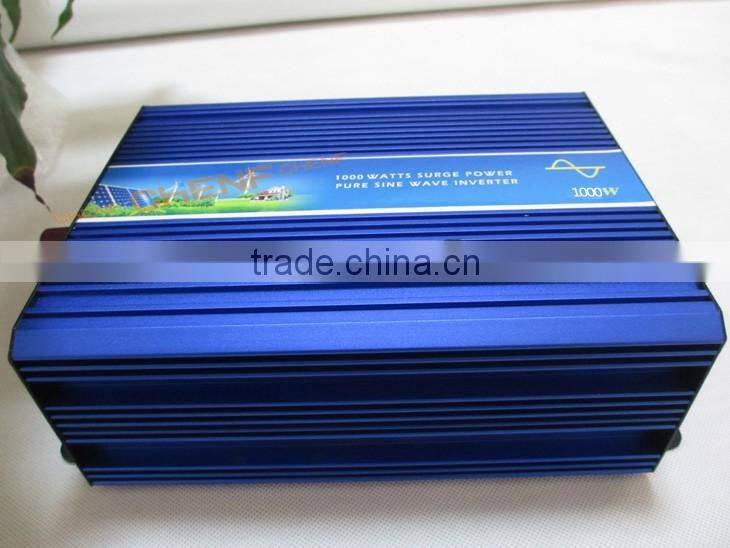

CHENF 1000W High Frequency Triple Output Type Pure Sine Wave off Grid Solar Inverter With Charger

Model

CF-800C

CF-1000C

AC Input

AC voltage

100/110/120VAC or 220/230/240VAC

Frequency

50Hz or 60Hz

Charge output

Charge current

10A

10A

Charge voltage

14.2V

28.2V

Charge mode

Equalize/float convert automatically

DC input

DC voltage

12V

24V

Voltage range

10-16V

20-33V

No load current draw

<0.6A

<0.3A

Efficiency

>90%

DC connection

Cables with terminal

Output

AC voltage

1100/110/120VAC or 220/230/240VAC

Continuous power

800W

1000W

Surge power

1600W

2000W

Waveform

Pure sine wave

Frequency

50Hz or 60Hz

AC regulation

3%

Protection

Low voltage alarm

10.5V±0.5V

21V±1V

Low voltage shut down

10V±0.5V

20V±1V

Short circuit

Shut off output automatically

Over load

Shut off output

Over voltage shut down

16V±0.5V

33V±1V

Over thermal

Shut off output

Environment

Working temperature

‘-10℃~+50℃

Working humidity

20%~90%RH

Storage temperature

-10℃~+50℃

Package

Machine size(mm)

415*165*85

485*165*85

Packing size(mm)

510*230*148

575*230*148

Net weight(kg)

3.8

4.7

Gross weight(kg)

4.5

5.3

Packing mode

Carton packaging

Other

Start

Soft start

Cooling ways

Intelligent cooling fan
