5000W High Quality DC12/24/48v to AC 110/220v 50/60Hz Pure Sine Wave Inverter
PRODUCT FEATURES:
5000W High Quality DC12/24/48v to AC 110/220v 50/60Hz Pure Sine Wave Inverter
·Featured with high reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology.
5000W High Quality DC12/24/48v to AC 110/220v 50/60Hz Pure Sine Wave Inverter
·Pure sine wave output.
5000W High Quality DC12/24/48v to AC 110/220v 50/60Hz Pure Sine Wave Inverter
·Small, light and artistic, benefited from adopting the SMD pastern technology.
5000W High Quality DC12/24/48v to AC 110/220v 50/60Hz Pure Sine Wave Inverter
·Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise.
5000W High Quality DC12/24/48v to AC 110/220v 50/60Hz Pure Sine Wave Inverter
APPLICABLE FOR:
5000W High Quality DC12/24/48v to AC 110/220v 50/60Hz Pure Sine Wave Inverter

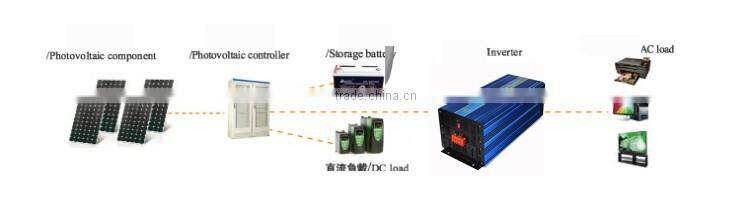

·Solar electric energy generation.
5000W High Quality DC12/24/48v to AC 110/220v 50/60Hz Pure Sine Wave Inverter
·Wind power generation.
5000W High Quality DC12/24/48v to AC 110/220v 50/60Hz Pure Sine Wave Inverter
·Communication equipment. High Quality 500W Pure Sine Wave Inverter,DC12/24/48v to AC 110/220v 50/60Hz
5000W High Quality DC12/24/48v to AC 110/220v 50/60Hz Pure Sine Wave Inverter
·Industrial intellectual control system.
5000W High Quality DC12/24/48v to AC 110/220v 50/60Hz Pure Sine Wave Inverter
·Small sized emergency power supply system.
5000W High Quality DC12/24/48v to AC 110/220v 50/60Hz Pure Sine Wave Inverter
Technical Parameters
5000W High Quality DC12/24/48v to AC 110/220v 50/60Hz Pure Sine Wave Inverter
| Model | CF-5000Y | ||||
| Input | DC voltage | 12V | 24V | 48V | 110V |
| Voltage range | 10-16VDC | 20-33VDC | 40-63VDC | 90-130VDC | |
| No load current draw | 0.7A | 0.4A | 0.2A | 0.1A | |
| Efficiency | >90% | ||||
| DC connection | Cables With Clips or Car Adaptor | ||||
| Output | AC voltage | 100/110/120VAC or 220/230/240 VAC | |||
| Continuous power | 5000W | ||||
| Surge power | 10000W | ||||
| Waveform | Pure sine wave | ||||
| Frequency | 50Hz or 60Hz | ||||
| AC regulation | 3% | ||||
| Protection | Low voltage alarm | 10.5DC±0.5V | 21DC±1V | 42VDC±1V | 96VDC±3V |
| Low voltage shut down | 10DC±0.5V | 20DC±1V | 40VDC±1V | 90VDC±3V | |
| Short circuit | Shut off output automatically | ||||
| Over load | Shut off output | ||||
| Over voltage shut down | 16±0.5V | 33±1V | 63±1V | 130±3V | |
| Over thermal | Shut off output automatically | ||||
| Environment | Working temperature | between -10°C and +50°C | |||
| Working humidity | 20%~90%RH | ||||
| Storage temperature | between -30°C and +70°C | ||||
| Package | Machine size(mm) | 520*217*153 | |||
| Packing size(mm) | 605*300*230 | ||||
| Net weight(kg) | 13.1 | ||||
| Gross weight(kg) | 15.5 | ||||
| Packing mode | Carton packaging | ||||
| Other | Start | Soft start | |||
| Cooling ways | Intelligent cooling fan | ||||
Quality Frequency 500W Pure Sine Wave Inverter,DC12/24/48v to AC 110/220v 50/60Hz
Quality Frequency 500W Pure Sine Wave Inverter,DC12/24/48v to AC 110/220v 50/60Hz
5000W High Quality DC12/24/48v to AC 110/220v 50/60Hz Pure Sine Wave Inverter
5000W High Quality DC12/24/48v to AC 110/220v 50/60Hz Pure Sine Wave Inverter
Quality Frequency 500W Pure Sine Wave Inverter,DC12/24/48v to AC 110/220v 50/60Hz
The commonly steps about our drop shipping service:
Quality Frequency 500W Pure Sine Wave Inverter,DC12/24/48v to AC 110/220v 50/60Hz
we send the goods to your designated destination warehouse or the customers' hands.And customers receive the goods.
Quality Frequency 500W Pure Sine Wave Inverter,DC12/24/48v to AC 110/220v 50/60Hz
Advanced production technology
Quality Frequency 500W Pure Sine Wave Inverter,DC12/24/48v to AC 110/220v 50/60Hz
