Big John
- 10000 Set / Sets per Month
- Tianjin Shanghai
- T/T D/P D/A Credit Card
Product Details
Standard or Nonstandard: | Standard | Structure: | Control | Pressure: | High Pressure |
Power: | Hydraulic | Material: | Stainless Steel | Temperature of Media: | High Temperature |
Media: | Oil | Place of Origin: | Shandong, China | Brand Name: | Sinotai |
Packaging Details
in standard mooden case
Product Description
Specifications
1. tungsten carbide is embedded into choke bean in full length2. removeable
3. be same as Cameron H2 Big John

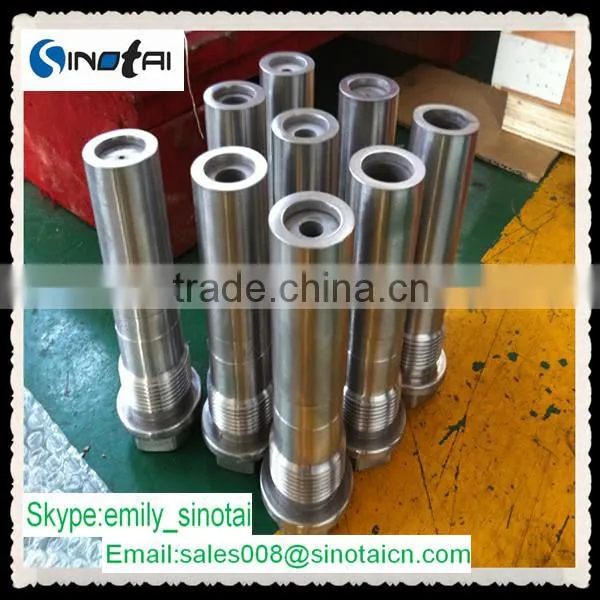

Choke bean(BIG JOHN)
Features
1. material ---outer material stainless steel, tungsten carbide is embedded into choke bean in full length
2. predium ----oi,l gas ,water and sand-
3. per your drawing---customizable
4. size -------4/64"- 128/64"
5. the positive choke bean we produced are similar to cameron type H2 big john
API Bean Orifice Positive Choke Valve Technical Specification:
• The bean orifice is made of ceramics or hard alloy with wearing resistance and washing resistance
• The bonnet connection form is union, which is more convenient to replace bean
• Working Pressure: 2000psi~20000psi
• Nominal Bore: 1.13/16″~7.1/16″ (46mm~180mm)
• Working Medium: oil, natural gas, mud and gas containing H2S and CO2
• Working Temperature: -46°C~121°C(Class LU)
• Material Class: AA, BB, CC, DD, EE, FF, HH
• Specification level: PSL1~4
• Performance Requirement: PR1~2
Item No. | Item | Technical Description |
1 | Company Brand | SYMT |
2 | Nominal Bore | 1 13/16"- 7 1/16" (46mm - 180mm) |
3 | Working Pressure | 2000 PSI – 20000 PSI |
4 | Working Temperature | Class LU (-46°C~121°C) |
5 | Working Medium | Oil, Natural gas, mud and gas containing H2S, CO2 |
6 | Material Class | AA, BB, CC, DD, EE, FF, HH |
7 | Performance Requirement | PR1 – PR2 |
8 | Specification Level | PSL1– PSL4 |
9 | Port | Shanghai |
10 | Delivery Date | About 7- 25 days |
Company Profile
As a professional supplier of OCTG, drilling equipment and workover service, Sinotai Petroleum Equipment Co., Ltd. lies in the production base of petroleum equipment and China's second largest oil field --Shengi Oilfield. Our company is a high-tech enterprise in Dongying City with business scope covering the sale, trading, post-sale service and technological development of a wide variety of petroleum equipment.
Besides OCTG, we provide our customers with other drilling and oil recovery equipment like fishing tools, cementing tools, workover rigs, pumping units and OCTG accessories.
The striving target of our company is "Prestige first, Quality supreme; The shortest delivery time, The lowest price, The best quality". Customers' needs are our first priority and customer satisfaction is the bottom line by which we measure our success.
