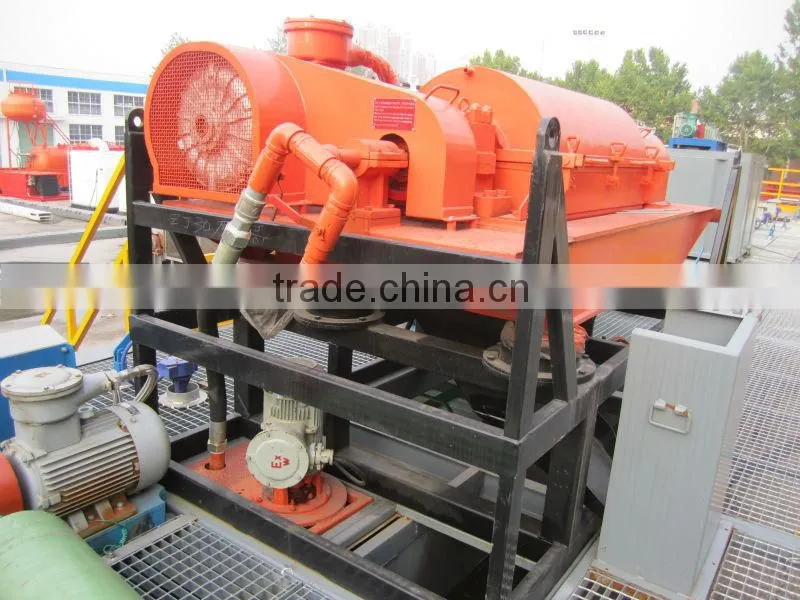

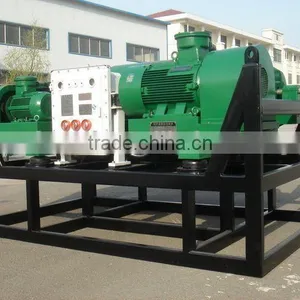

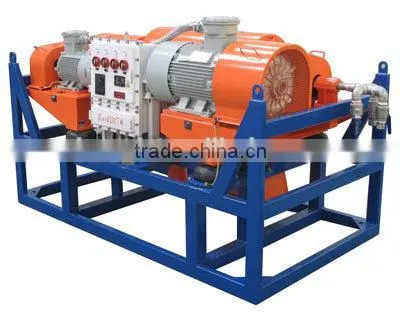

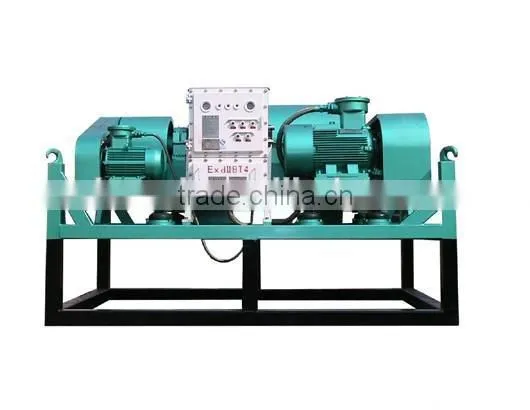

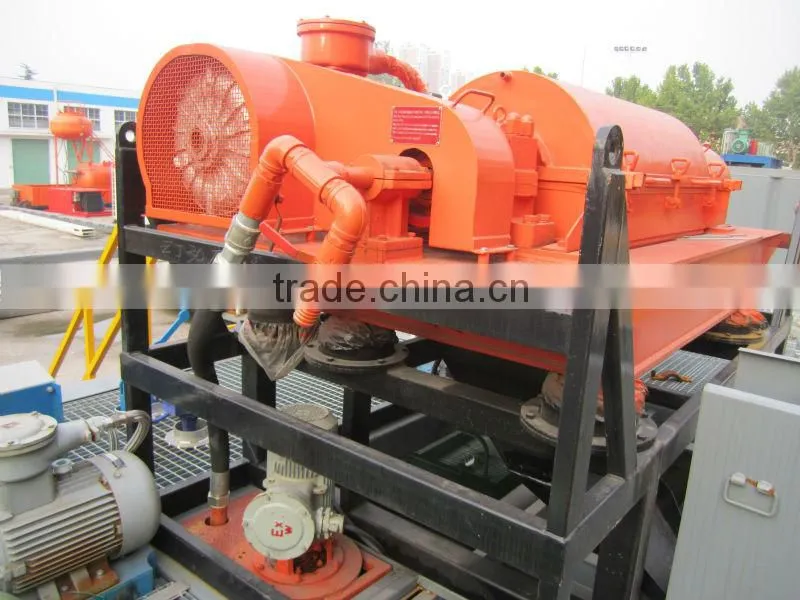

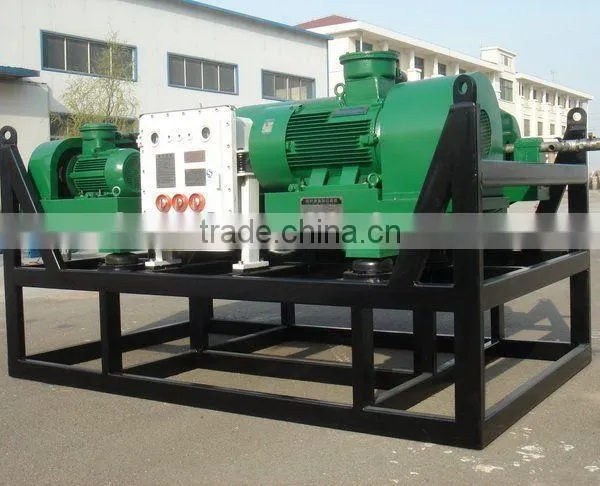

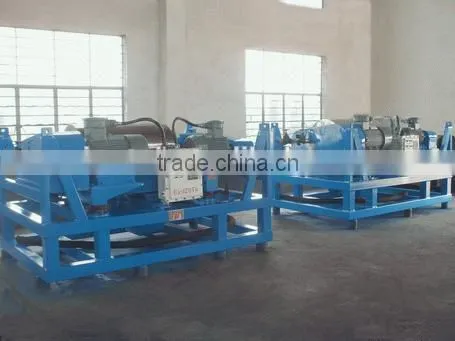

Oil Centrifuge for Drilling Solid Control System

Oil Centrifuge for Drilling Solid Control System photo-1
US$ 1,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
SINOTAI
Model Number:
LWF,GLW
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Tianjin / Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name SINOTAI
Model Number LWF,GLW
Condition New
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. LW centrifuge is driven by two motors.
2. Rated frequency decanter centrifuge
3.High quality and professional service

Main feature:

  1. LW centrifuge is driven by two motors.

  2. The main motor drives the drum and the outer casing of differential through belts while the auxiliary motor, after the differential shifting speed, drives the spiral propeller.

  3. This will make the drum and the spiral propeller rotate inthe same direction with a certain differential speed.

  4. Model

    LWF450×842N

    LWF450×1000N

    GLW355×1250N

    GLW355x1250

    Bowl Diameter

    450mm

    450mm

    355mm

    355mm

    Rotary Speed

    1800r/min

    1800r/min

    3200r/min

    0~3200r/min

    G-Force

    815

    815

    2035

    2035

    Separation point

    5~7μm

    5~7μm

    2~5μm

    2~5μm

    Main Drive

    22kw-4p

    30kw-4p

    30kw-4p

    37kw-4p

    Back Drive

    5.5kw-4p

    7.5kw-4p

    7.5kw-4p

    7.5kw-4p

    Max capacity

    ≤40m3/h

    ≤60m3/h

    ≤40m3/h

    ≤40m3/h

    Weight

    2550kg

    2700kg

    2950kg

    3000kg

    Dimension

    2360x1850x1750mm

    2600x1860x1750mm

    2900x1850x1750mm

    2900x1950x1750mm



    Oil Centrifuge for Drilling solid control systemOil Centrifuge for Drilling solid control systemOil Centrifuge for Drilling solid control systemOil Centrifuge for Drilling solid control systemOil Centrifuge for Drilling solid control systemOil Centrifuge for Drilling solid control system
