CHENF New Invention 5kw Pure Sine Wave Solar Energy Inverter With LCD Display

Name: CHENF New Invention 5kw Pure Sine Wave Solar Energy Inverter With LCD Display
Brand: Chenf
Availability: InStock

FOB Price

US$ 570.00 - 590.00 / Piece

1 Piece(Min. Order)

Port Ningbo or Shanghai
Payment TermsT/T L/C Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Chenf
Model Number	CF-5000Y	Output Power	Other
Output Type	Dual	Size	520217153
Weight	13.1KG	Input Voltage	40-63VDC
Output Voltage	110/110/120VAC	Type	DC/AC Inverters
Output Frequency	50Hz/60Hz	Output Current	Power Request

Product Description

CHENF New invention 5kw Pure Sine Wave solar energy Inverter with LCD display

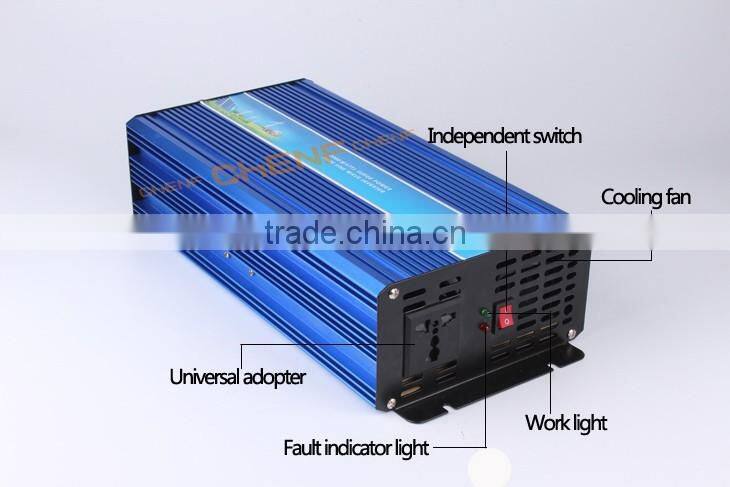

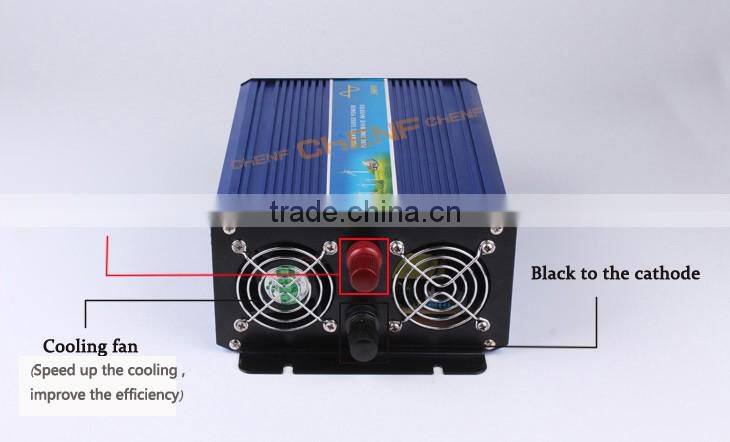

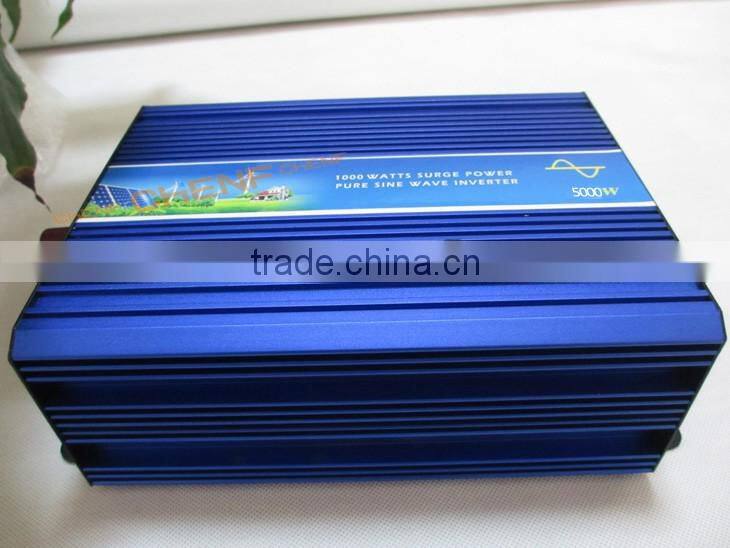

Apperance show

Production parameters

Model		CF-5000Y		CF-6000Y
Input	DC voltage	12V	24V	48V	110V
	Voltage range	10-16VDC	20-33VDC	40-63VDC	90-130VDC
	No load current draw	3A	1.5A	0.8A	0.4A
	efficiency	>90%
	DC connection	Cables with Clips or Car Adaptor
Output	AC voltage	100/110/120VAC or 220/230/240 VAC
	Continuous power	5000W		6000W
	Surge power	10000W		12000W
	Waveform	Pure sine wave
	Frequency	50HZ or 60HZ
	AC regulation	3%
Protection	Low voltage alarm	11DC±0.5V	22DC±1V	44VDC±1V	100VDC±3V
	Low voltage shut down	10DC±0.5V	20DC±1V	40VDC±1V	90VDC±3V
	Short current	Shut off output automatically
	Overload	Shut off output
	Over voltage shut down	16±0.5V	33±1V	63±1V	130±3V
	Over thermal	Shut off output automatically
Environment	Working temperature	‘-10℃~+50℃
	Working humidity	20%~90%RH
	storage temperature	‘-30℃~+70℃
Packing	Machine size(mm)	520217153 550217153
	Packing size(mm)	475230148 560230148
	Net weight(kg)	13.1 14.25
	Gross weight(kg)	15.5 16.8
Other	Start	Soft start
	Cooling	Intelligent cooling fan

Features

1.Large LCD display for more details content;

2.CPU controlled ,fast transfer time;

3.Intelligent battery maganement prolonging the service life of the battery.

4. Complete protection function high reliability.

Applicable For

1. Travel set equipment :milittary vehicles , police cars , ambulance , ships , traffic light etc.

2.Industrial equipment : solar energy , wind power , gas discharge lamps , etc.

3. Office euipment : computers , printers , copiers , scanners , digital cameras , etc.

4. ............

Comstomized

The design of products can be customized freely according to

customer's requirements.

Socket panel can change according to customer'requirements

we have what you want !!!

Packaging & Shipping

Packing detils: Conventional packing

Delivery Detail: 20~25days
