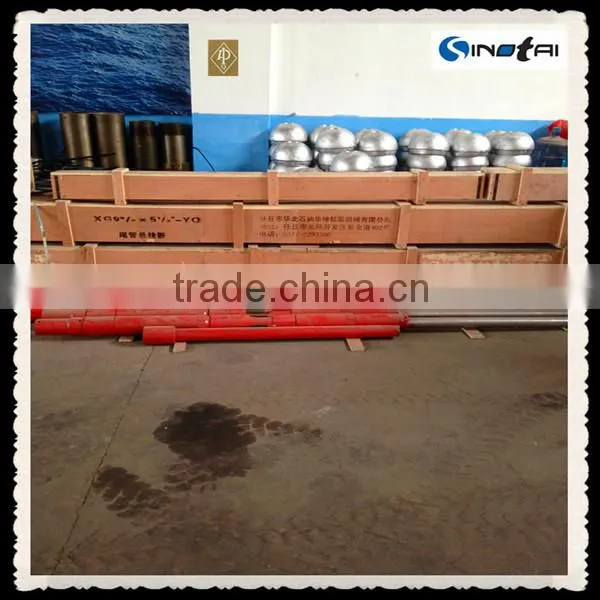

API Oilfield DYX-C Hydraulic Liner Hanger
US$ 200 - 1,500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Sinotai
Model Number:
Model DYX-C
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai Qingdao etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Polished Bore ReceptacleUS$ 300 - 1,500MOQ: 1 Piece -
Model HJT Polished Bore ReceptacleUS$ 300 - 1,500MOQ: 1 Piece
-
API Model HJT Polished Bore ReceptacleUS$ 300 - 1,500MOQ: 1 Piece
-
Oilfield API Model HJT Polished Bore ReceptacleUS$ 300 - 1,500MOQ: 1 Piece
-
Rotating Liner HangerUS$ 200 - 1,500MOQ: 1 Piece
Place of Origin
Shandong, China
Brand Name
Sinotai
Model Number
Model DYX-C
Type
Other, Hydraulic Liner Hanger
Machine Type
Drilling Equipment
Certification
API
Material
Carbon Steel
Processing Type
Casting
Use
Well Drilling
Specifications
1.Rated Load:30 T2.Sealing Capacity:25Mpa
3.Specifications:139.7*101.6/88.9
4.Body Max O.D.117mm

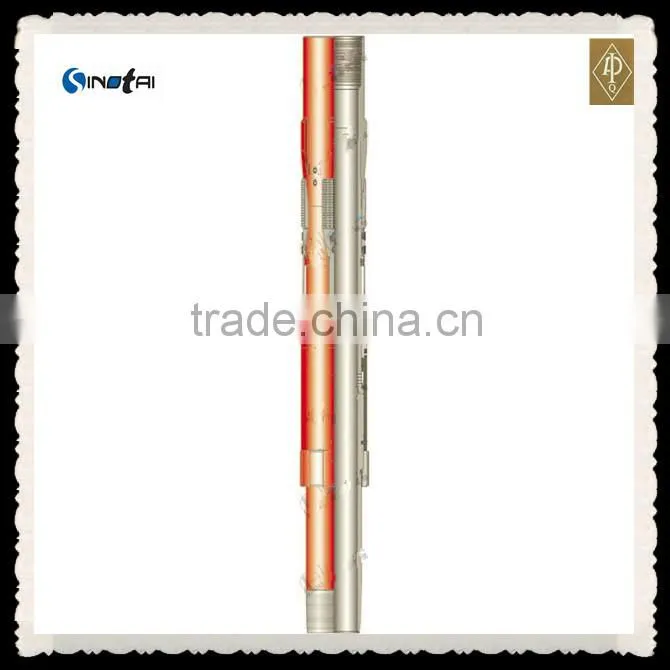

Model DYX-C Hydraulic Liner Hanger
1. No piston in the hydraulic cylinder.
2.Suitable for thick wall previous casing.
3.The setting tool can be easily released just by slacking
off certain weight and using right hand rotation.
4.Retrievable Pack-off Bushing can be retrieved with
setting tool, eliminating drill-out.
Specifications
Size (Csg x Liner) |
Casing Weight |
Max O.D. |
|||
in. |
kg/m |
lb/ft |
mm |
in. |
|
9-5/8 x 8-1/8 |
59.53 |
40.00 |
215 |
8.465 |
|
64.74 |
43.50 |
|
|||
69.94 |
47.00 |
|
|||
9-5/8 x 7 |
79.62 |
53.50 |
212 |
8.346 |
|
7 x 5 |
47.62 |
32.00 |
148 |
5.827 |
|
52.09 |
35.00 |
||||
5-1/2 x 4 |
25.30 |
17.00 |
114 |
4.488 |
|
29.76 |
20.00 |
|
|||
34.23 |
23.00 |
|
|||
5-1/2 x 3-1/2 |
25.30 |
17.00 |
117 |
4.606 |
|
29.76 |
20.00 |
|
|||
34.23 |
23.00 |
|
|||
