Specifications
1. ZCQ series2.used as a heavy-power agitatoran
3.effective gas-liquid separation
4.filter out impurities
Specifications
1. Degasser capacity:180m3/h;
2.Degree of vacuum: 0.02-0.04 Mpa;
3.motor power: 4KW; F
4.feed pump motor power: max. 37kw

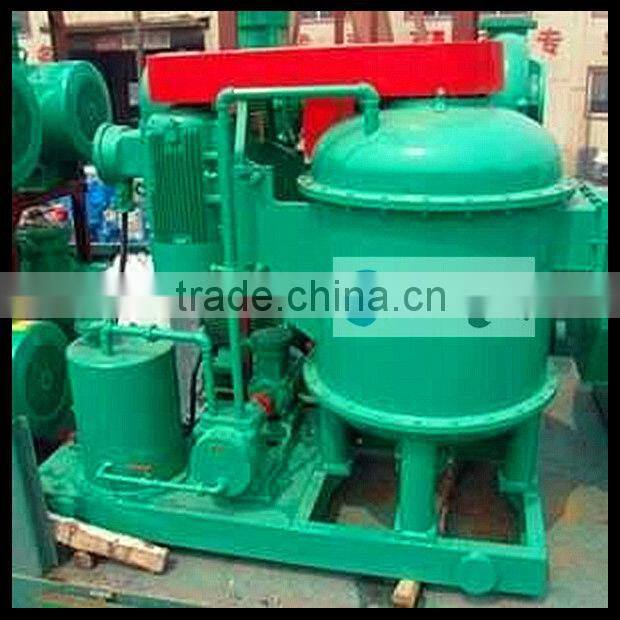

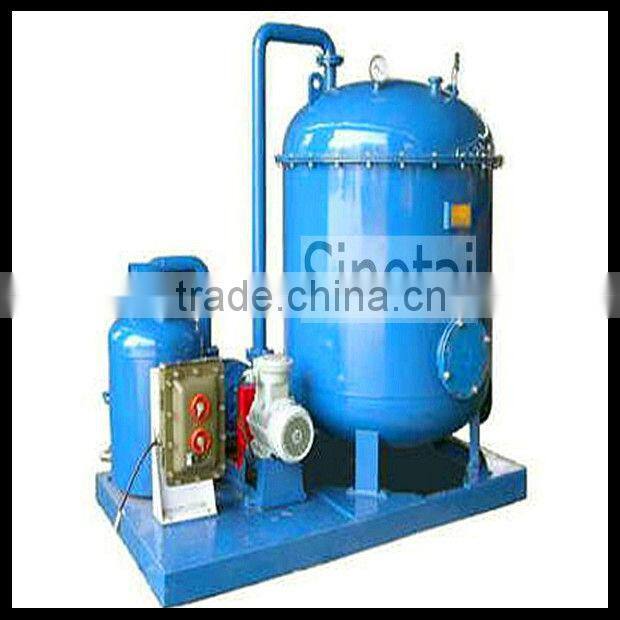

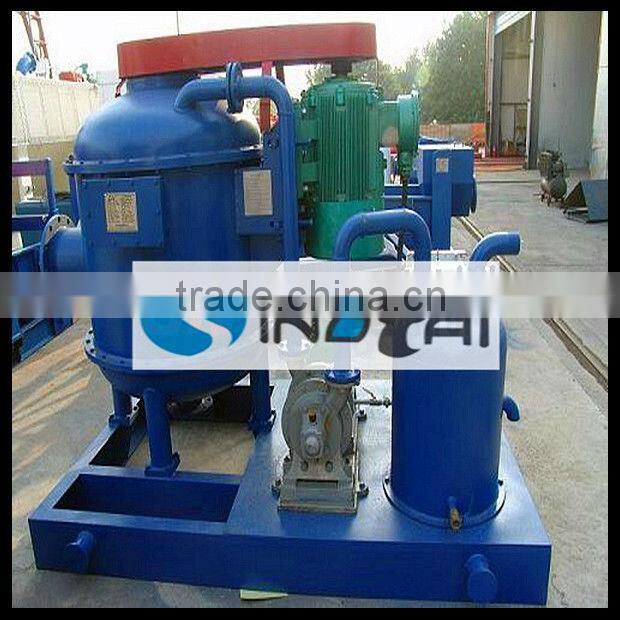

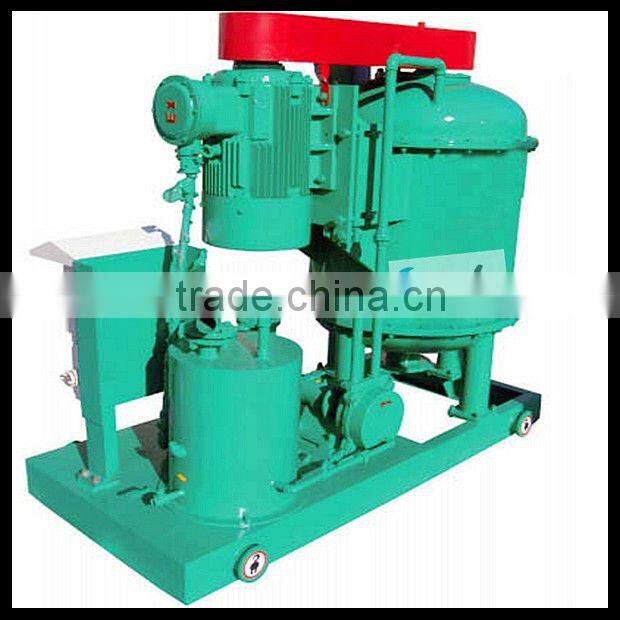

ZCQ series Vacuum Degasser
Main feature:
1. ZCQ series Vacuum Degasser is a special-purpose device and a new type one for the treatment of gas in the drilling fluids.
2. It can get rid of various gas of invasive drilling quickly. Vacuum degasser is very important for returning mud gravity, stabilizing
mud viscosity and reducing drilling cost.
3. vacuum degasser can be used as a heavy-power agitator and supported applicable to all types of mud circulation purification system.
4. The vaccum degasser design of the structure is scientific and rational. So we are able to achieve an effective gas-liquid
separation, filter out impurities and to ensure that the exhaust pipe is always smooth.
ZCQ series Vacuum Degasser Technical Parameters:
Model |
ZCQ240 |
ZCQ270 |
ZCQ300 |
ZCQ360 |
Main diameter |
700mm |
800mm |
900mm |
1000mm |
Capacity |
≤240 m3/h |
≤270 m3/h |
≤300 m3/h |
≤360 m3/h |
Vacuum |
-0.030~-0.045MPa |
-0.030~-0.050MPa |
-0.030~-0.055MPa |
-0.040~-0.065MPa |
Ratio |
1.68 |
1.68 |
1.68 |
1.72 |
Efficiency |
≥95% |
≥95% |
≥95% |
≥95% |
Motor power |
15kW |
22kW |
30kW |
37kW |
Vacuum Power |
2.2kW |
3kW |
4kW |
7.5kW |
Rotary speed |
860/r/min |
870/r/min |
876/r/min |
880/r/min |
Dimension |
1750×860×1500 |
2000×1000×1670 |
2250×1330×1650 |
2400×1500×1850 |
Weight |
1100kg |
1350kg |
1650kg |
1800kg |
