1.API Skid-mounted Cementing Equipmentpact structure
3.small footprint
nvenient handling

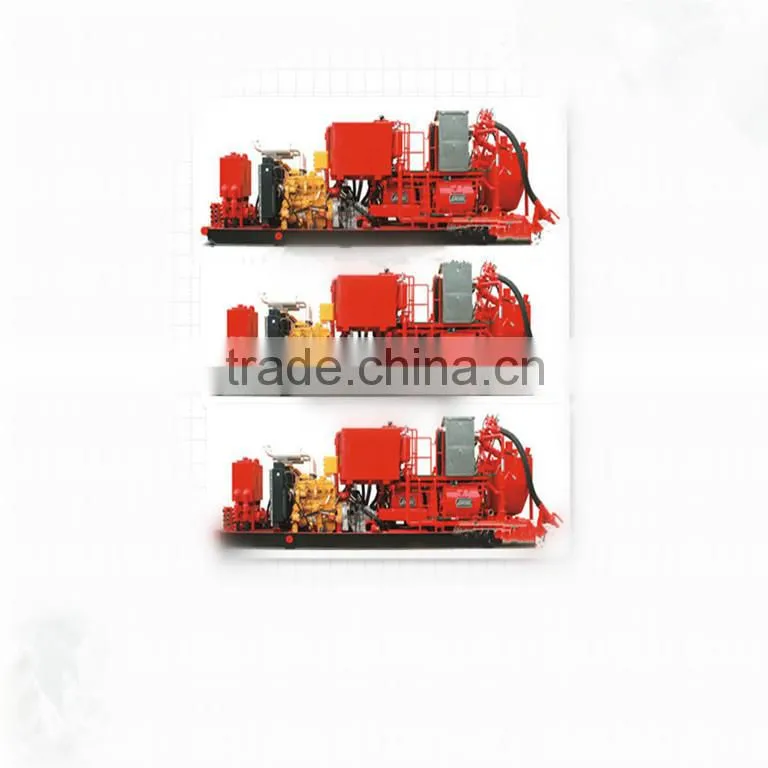

API Skid-mounted Cementing Equipment
1. Skid-mounted cementing equipment mainly consists of engine, hydromechanical transmission, horizontal triplex plunger pump, blending system, manifold system, and hydraulic/air control system.
2. Two forms of equipment are available: single engine single pump and double engine double pump.
3. Mixing system can be an injection mixing or Tornado mixing system, manually control led or automatically controlled by ACM density control system.
4.The equipment has many advantages, such as compact structure, small footprint, and convenient handling, etc, and is suitable for cementing operations in offshore, desert, marshland and small areas with limited space.
5. Our offshore cementing skids have been corrosion resistance and explosion proof treated so that they can meet the special requirements for offshore platform operations.
Main Parameters:
Model |
GJQ100-30 |
GJQ70-25 |
GJQ50-30 |
GJQ35-16 |
Max. Working pressure psi(MPa) |
14146(97.5) |
10150(70) |
7250(50) |
5070(35) |
Max. Working displacement gpm(L/min) |
803(3043) |
650(2470) |
756(2865) |
418(1583) |
Max. Input power of single pump hp(kW) |
600(447) |
355(265) |
355(265) |
355(265) |
Overall L×W×H in.(mm) |
330×106×122(8400×2700×3100) |
374×102×120(9500×2600×3040) |
374×102×120(9500×2600×3040) |
283×95×110(7200×2400×2800) |
Total weight lb(kg) |
44000(20000) |
44000(20000) |
39600(18000) |
26400(12000) |
Overall L×W×H in.(mm)(Special model for offshore use) |
291×106×122(7400×2700×3100) |
315×198×522(8000×2500×3980) |
315×98×102(8000×2500×2600) |
284×95×110(8400×2700×3100) |
