Wave-shape endless conveyor belt manufacturer

PVC water-proof cloth,.wooden box or as clients' requirements

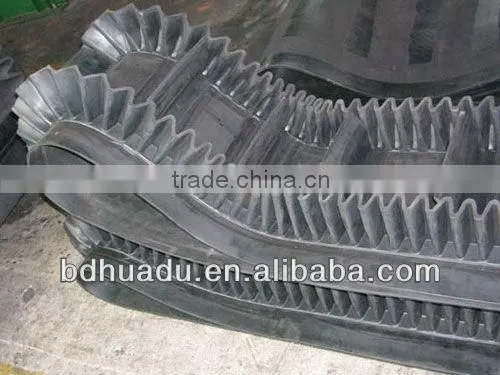

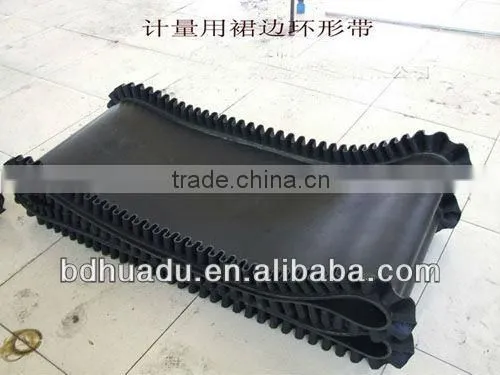

 Wave shape endless conveyer belt

1Adhesive Strength:100-600N/mm
2CC NN EE PP EP Fabric
3Cover Rubber:9-25mpa

Characteristics

1.Good elasticity, anti-impact;

2.High adhesion, good flexibility and trough ability;

3.Better stability of size and heat-resistance

4.Good water-proof ability, little change in strength under dry or wet conditions.

The ordinary conveyor belt to carry out the GB code GB/T7984-2001 standard.

Wave woven conveyer belt always work together with the wave-shape Apron transfardng system, normally the angle is more than 30^o, it also could work together with the common use belt conveyor for [he horizontal and short distance transportation (No clapboard generally).

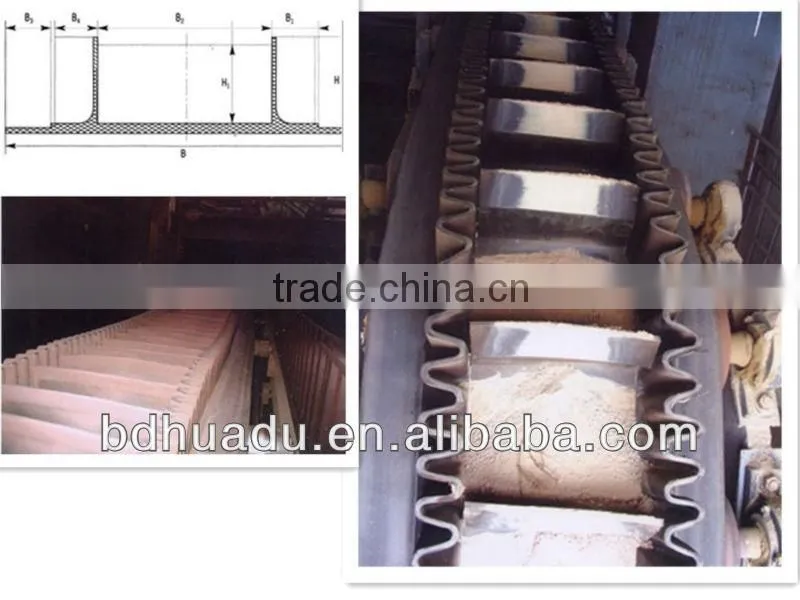

Wave woven conveyer belt uses the baseband, flange and diaphragm (it is not necessary in the horizontal transpodation) that the trough degree no greater than 0.03, and after twice suguration it could be made.

Wave woven conveyer belt using the technics of twice sulfuration compared to the similar products using the gluing process, has the advantages of high bonding degree and splendid flexibility, it could avoid the phenomenon of flange, clapboard cracking and fall off etc
