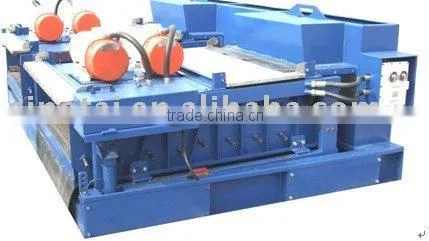

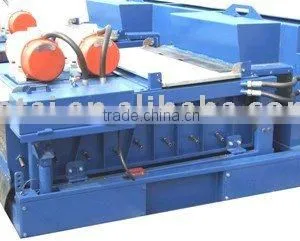

API Shale Shaker

Name: API Shale Shaker
Brand: sinotai
SKU: 119555263
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

sinotai

Type:

Other, shale shaker

Sinotai Petroleum Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

main ports

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name sinotai

Type Other, shale shaker

Machine Type Drilling Equipment

Certification API

Material Iron

Processing Type Casting

Use Well Drilling

Specifications

shale shaker
1.the first class solid control equipment.
2.Treating Capacity:352GPM,528GPM,615GPM

shale shaker

1.Shale Shaker is the first class solid control equipment.

2. Linear motion shale shaker is installed with the imported vibration motor power and is currently the most advanced shaker in our country.

3.Our company can provide the double or triple units and the corresponding connection pipe according to customer demand.

4.At the same time the equipment also can be used as Underflow Screen of Desander and Desilter Assembly.

Model	ZS83-3	ZS63-3	ZS70-3	ZS83-2
Vibrating Mode	Linear motion	Linear motion	Linear motion	Linear motion
Motor Power	2*1.5KW	2*1.5KW	2*1.5KW	2*1.3KW
Vibrating Strength	7.0G (Adjustable)	7.0G (Adjustable)	7.0G (Adjustable)	6.5G
Double Amplitude	5.5~6.0mm	5.5~6.0mm	5.5~6.0mm	5.5~6.0mm
Treating Capacity	143m3/h 615GPM	120m3/h 528GPM	120m3/h 528GPM	80m3/h 352GPM
Deck Adjustment	-1°~5°	-1°~5°	-1°~5°	0°~3°
Power	380V/50HZ,460V/60HZ
Screen area	2.7m2	2.4m2	2.2m2	1.8m2
Shaker Screen	8301080mm3 (40~250meshes)	6301250mm3 (40~250meshes)	7001050mm3 (40~250meshes)	8301080mm2 (40~250meshes)
Weight	1880kg	1680kg	1580kg	1300kg
Remarks	Treating capacity test from mud: 1.2g/cm3density &viscosity 45s & 40 mesh screens.
