High Quality One Phase LCD Display 1KW Solar Off Grid Inverter
Specifications
1) Off grid inverter
2) 70A automatic 3-stage battery charger
3) 3:1 surge ratio
4) Generator compatible
5) LCD display
6)Pure sine wave output
High Quality One Phase LCD Display 1KW Solar Off Grid Inverter
Product Features
- Pure sine wave output, available for sensitive load
- 4-step progressive charging, 7 battery type selector
- Fast and powerful charger with 30A and 70A
- Accept generator’s energy output
- High power factor
- Intelligent battery management system can extend battery’s life.
- LCD display
- Microprocessor control guarantees high reliability
- Protections: output short circuit, overload, low voltage
- Remote control function
High Quality One Phase LCD Display 1KW Solar Off Grid Inverter

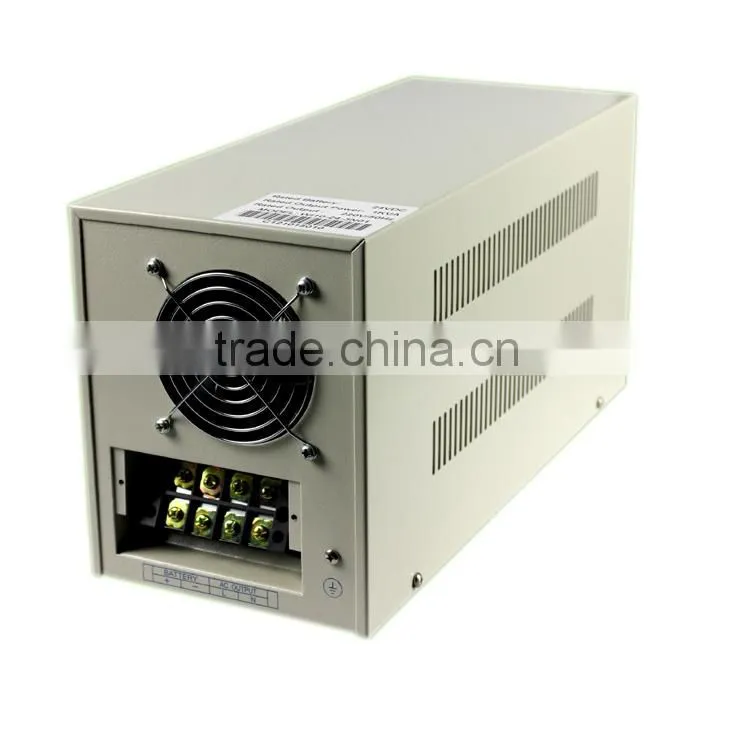

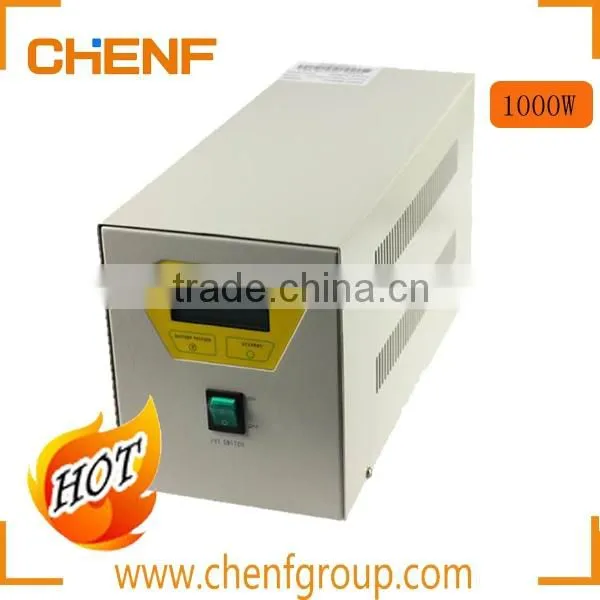

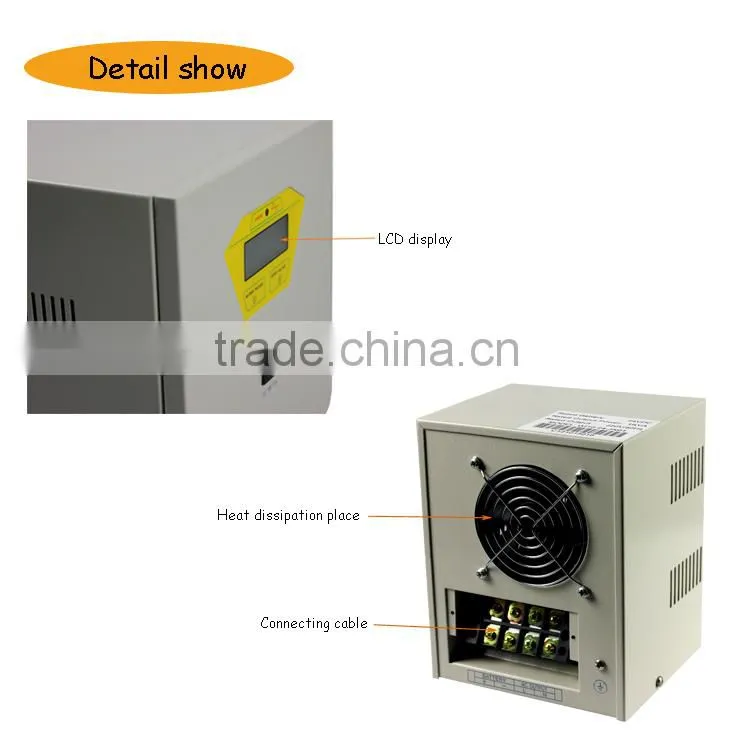

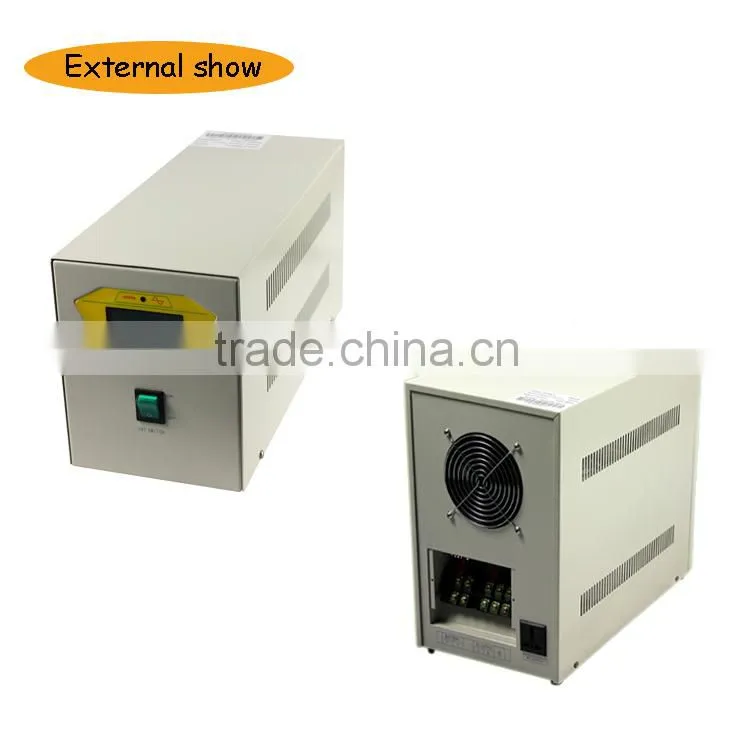

Product Image
High Quality One Phase LCD Display 1KW Solar Off Grid Inverter
High Quality One Phase LCD Display 1KW Solar Off Grid Inverter
Parameters
| Product Model | CF500-24 | CF1000-24 | CF1000-48 |
| Rated Output Capacity | 0.5kVA | 1 kVA | |
| Rated Battery Voltage | 24VDC | 24VDC | 48VDC |
| Over Voltage Shutoff | 34VDC | 34VDC | 68VDC |
| Over Voltage Recovery | 33VDC | 33VDC | 66VDC |
| Under Voltage Shutoff | 21VDC | 21VDC | 42VDC |
| Under Voltage Recovery | 24VDC | 24VDC | 48VDC |
| No-load Loss | 0.4A | 0.7A | 0.3A |
| Net Weight | 12KG | ||

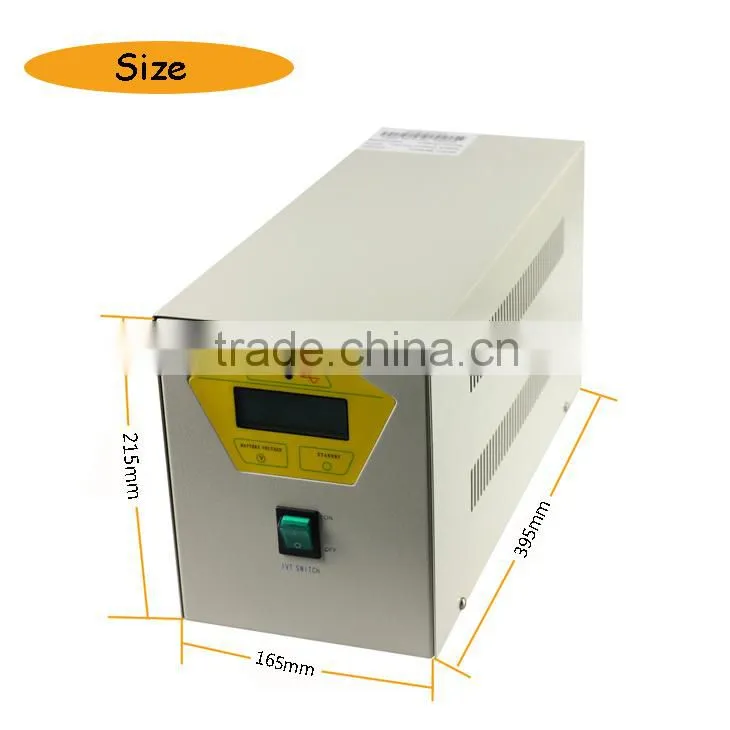

| Dimensions (Lx W x H) | 395×165×215 | ||
| Output Wave | Pure sine wave | ||
| Display Mode | LCD | ||
| Cooling | Fan | ||
| Rated Output Voltage | 110/120/220/230/240 VAC | ||
| Wave Distortion | ≤4% | ||
| Output Frequency | 50/60 Hz±0.5Hz | ||
| Dynamic Response | 5% | ||
| Power Factor | ≥0.8 | ||
| Over-load Capacity | 120% 1min,150% 10s | ||
| Invert Efficiency | 90% Max | ||
| Isolating Mode | Toroidal Transformer | ||
| Noise (1m) | ≤40dB | ||
| Insulating Strength | 1500VAC,1min | ||
| Protection Functions | Input over voltage protection, Battery under voltage protection, | ||
| Battery anti-reverse connection protection, Output overloadprotection, | |||
| Output short circuit protection, Over temperature protection. | |||
| Working Altitude | ≤4000m | ||
| Ambient Humidity | 0~90%,Without Condensation | ||
| In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement. | |||
High Quality One Phase LCD Display 1KW Solar Off Grid Inverter
Payment
1.We accept T/T, Paypal, Western Union, Alibaba Escrow, and others. You can choose the one you like. If you want other payment terms please let us know before your order.
2.If pay online, make sure that you have completed all the detailed information like contract person, address, post code, telephone number.
High Quality One Phase LCD Display 1KW Solar Off Grid Inverter

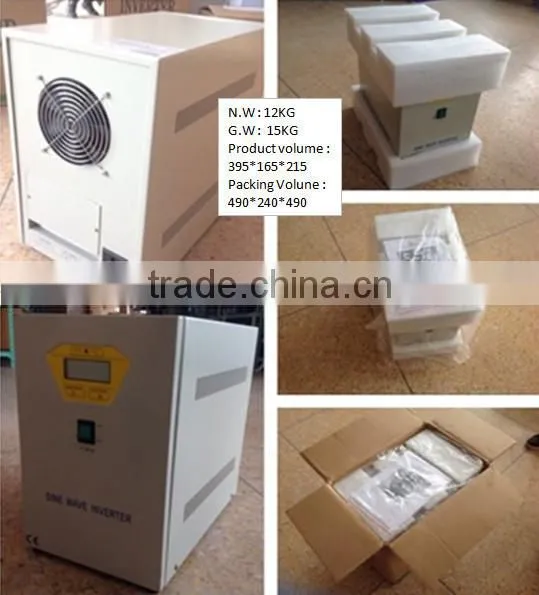

Package Content
High Quality One Phase LCD Display 1KW Solar Off Grid Inverter
Shipping
DHL,UPS,FedEx,EMS,TNT,Air,Sea
High Quality 1 Phase LCD Display 1KW Solar Off Grid Inverter
CE Certification
High Quality One Phase LCD Display 1KW Solar Off Grid Inverter
We are real factory.8 years export experience.
We will send the goods out within 72 hours after the order confirmed.
12 months warranty,any question will be answered in 12 hours.
If the pruduct really has quality problem,we will accept return the old and send a new.
Chenf Electric Group Limited. (called "Chenf" for short) is a wholly owned subsidiary of Chenf Electrical Group Limited. Founded in 2008, we are a modern enterprise specialized in offering one-stop service to customers.
- Chenf concentrates on the design, production and sales of renewable energy product, hi-voltage product, low-voltage product, pneumatic actuator, etc
- Chenf will continue to take "create value for customers.
Enterprise Vision: To create electrical products airline carrier.
High Quality One Phase LCD Display 1KW Solar Off Grid Inverter
Q1.What is the MOQ?
A1.10 pieces.
Q2.Could I buy a sample befor place the order.
A2.Yes,It is ok. Welcome your samples order.
Q3.What is way of Payment?
A3.L/C,T/T.Wester Union,Paypal(Just choose which one is best for you)
Q4.The model of transportation
A4.FOB Ningbo or Shanghai
Q5.What is the best price?
A5.Give me a inquiry or chat with me online,please.Then I will give you best answer.
