Transmission Flat Belts
US$ 3 - 30
MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Zhonghui
Model Number:
HD-332
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cotton, Polyester ,Nylon Black Rubber Conveyor BeltUS$ 5 - 30MOQ: 100 Meters -
Hot Sales High Quality Durable TC70 Conveyor BeltUS$ 3 - 10MOQ: 100 Meters
-
High Quality Conveyor Cutting Belt TC70US$ 3.5 - 10MOQ: 100 Meters
-
High Quality Conveyor Cutting Belt Cc56US$ 3.5 - 10MOQ: 100 Meters
-
Factory Price High Quality Wear-resistant Conveyor Belt TC70US$ 3.5 - 10MOQ: 100 Meters
Place of Origin
Hebei, China
Brand Name
Zhonghui
Model Number
HD-332

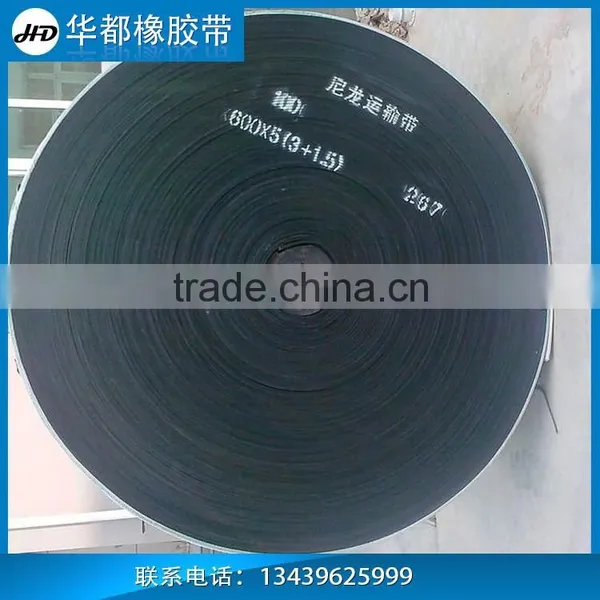

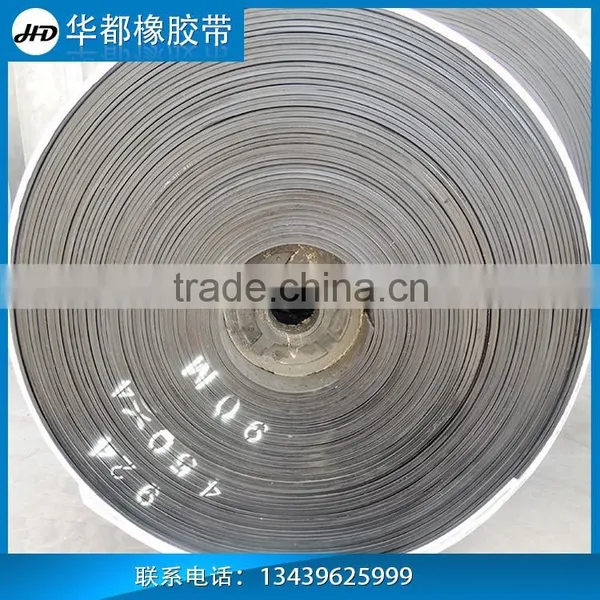

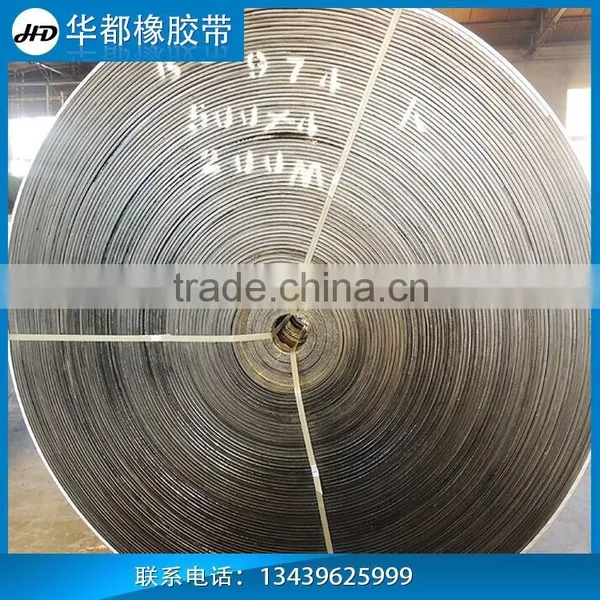

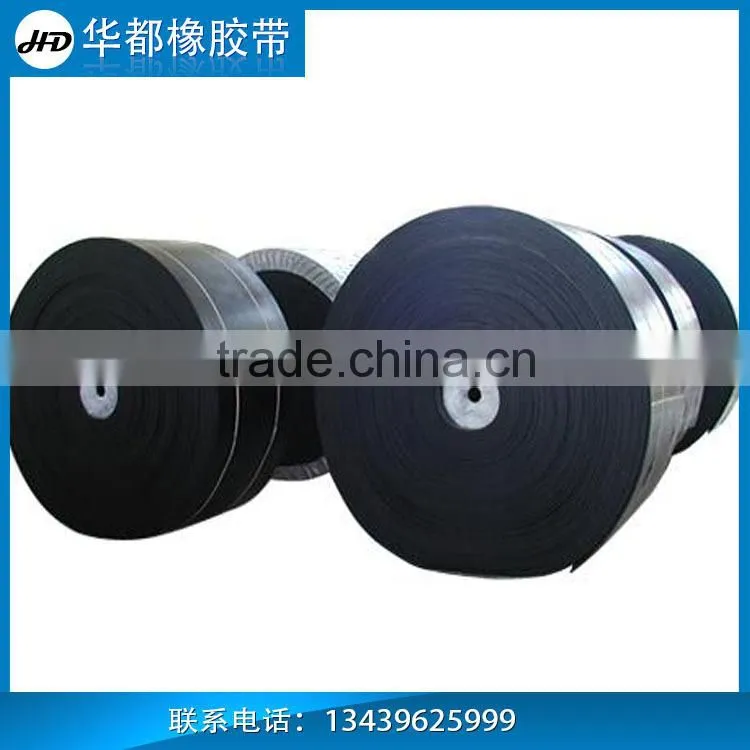

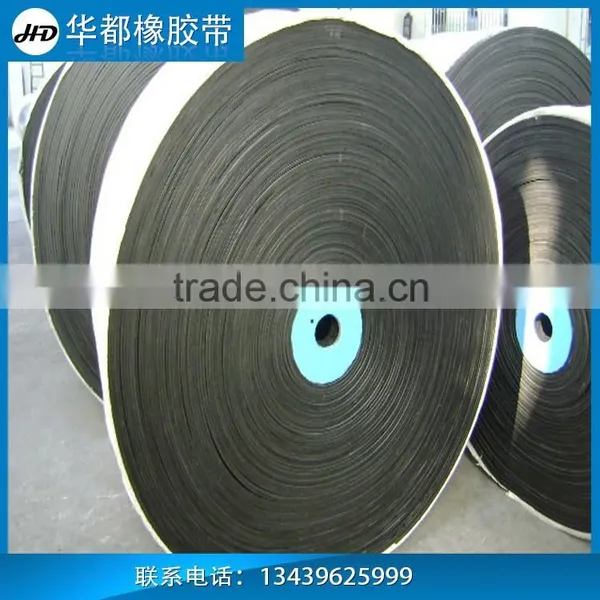

Polyester conveyor belts,also called EP conveyor belts,whose tension resistant body is canvas woven by polyester in warp and nylon-66 in weft.

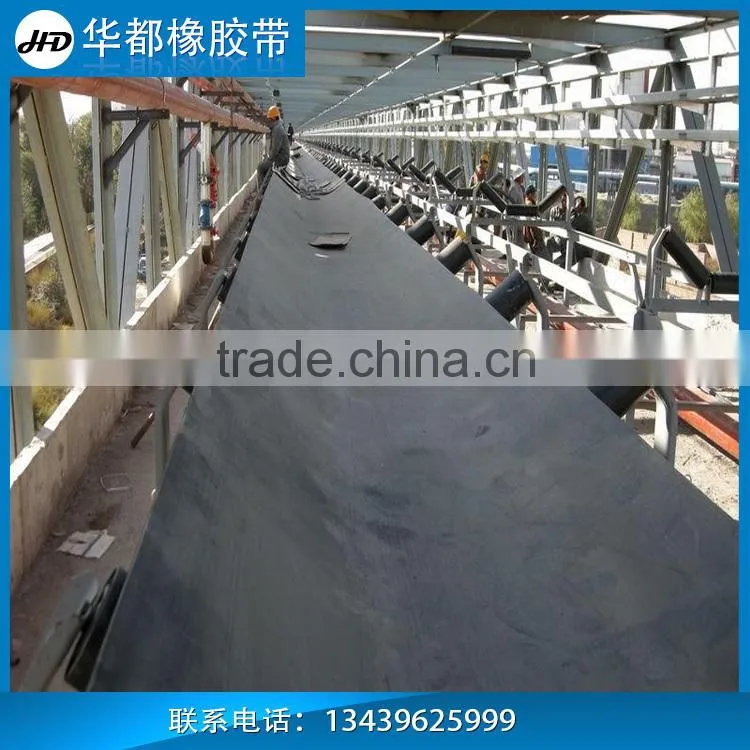

The belts have the characteristics of low elongation in warp and good troughability in weft,good water resistance,good wet strength,no mould,suitable for medium,long-distance and heavy-load transportation of materials.Because of the high initial modulus of polyester,the belts can choose a relative low safety factor.
Fabric type |
Fabric |
Ply thickness (mm/P) |
(N/mm) single fabric strength |
Cover thickness (mm) |
Width |
Length |
|
specs |
Upper |
Lower |
mm |
m |
|||
Polyester |
EP-100 |
0.8 |
100 |
2.0~8 |
0~4.5 |
400-2000 |
20-300 |
(EP) |
EP-125 |
0.85 |
125 |
||||
EP-150 |
0.9 |
150 |
|||||
EP-160 |
0.9 |
160 |
|||||
EP-200 |
1.05 |
200 |
|||||
EP-250 |
1.25 |
250 |
|||||
EP-300 |
1.35 |
300 |
|||||
EP-350 |
1.5 |
350 |
|||||
EP-400 |
1.8 |
400 |
|||||
EP-500 |
2 |
500 |
|||||
Adhesion and elongation of the belt: | |||||||||||
Belt |
Adhesive strdngth |
Elongation |
|||||||||
carcass |
Between plies |
N/mm Between rubber and carcass |
Longitudinal elongation at break |
Longitudinal elongation at reference load |
|||||||
N/mm |
Rubber thickness |
Rubber thickness |
%>= |
%<= |
|||||||
<=1.5mm |
>1.5mm |
||||||||||
EPcanvas |
>=4.50 |
>=3.2 |
>=3.5 |
10 |
4 |
||||||
Cover properties of the belts: |
|||||||||||
Cover grade |
Tensile strength |
Elongation |
Abrasion |
Change Rate of tensile strength and elongation after aging |
|||||||
>= |
>= |
<= |
|||||||||
Mpa |
kgf/cm2 |
% |
mm3 |
% |
|||||||
Heavy(H) |
24 |
240 |
450 |
120 |
-25~+25 |
||||||
Medium(M) |
18 |
180 |
400 |
100 |
-25~+25 |
||||||
Light(L) |
15 |
150 |
350 |
200 |
-30~+30 |
||||||
