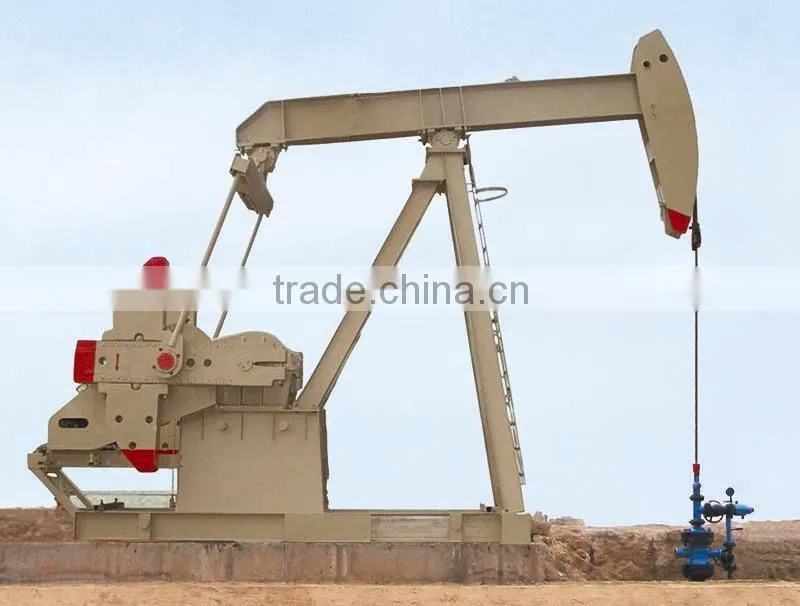

Help CenterOil Pump Unit
Related Products
Specifications
pump unit:1.Standard:API11E and SY/T5044Beam-Puming Units.
2.Type:B,C,F,R series
pump unit
1.It meets to API11E and SY/T5044Beam-Puming Units.
2.Type:B,C,F,R series
Conventional walk beam pumping unit
|
Model number parameter item |
CYJ5-2.1-13HB |
CYJ6-2.5-26HB |
CYJ8-3-37HB |
|
Rated load of the suspension center(kN) |
50 |
60 |
80 |
|
Stroke(m) |
2.1;1.8;1.5 |
2.5;2.1;1.7 |
3;2.5;2.1 |
|
Frequency of stroke(min-1) |
12;9;6 |
12;9;6 |
9;7;5 |
|
Crank rotating direction |
In face of the pumping unit, the well head is at the side of the right hand. Then revolve the crank counterclockwise |
|||
Speed reducer |
Resultant gear ratio |
JLH -750 |
JLH -850 |
JLH -850 |
Resultant of torque |
31.714 |
28.27 |
28.27 |
|
Retemoment of torque(kN·m) |
26 |
37 |
37 |
|
Electric motor |
Model number |
Y225S-8 |
YCY225M-8 |
YCY225M-8 |
Power(kW) |
18.5 |
18.5 |
22 |
|
Rotationalspeed(r/min) |
970 |
730 |
730 |
|
Structuralunbalance(kN) |
+0.15 |
0 |
+0.67 |
|
Weight of complere appliance(t) |
7.7 |
10.6 |
15 |
|
Measurement(m) |
6.35×1.54×5.23 |
7.55×1.804×6.44 |
8.142×2×7.2 |
|
