EX-proof Oil Rig Monitor System/Industry Closed Circuit Television(CCTV)

Standard Exporting Package

EX-proof Oil Drilling Monitor System/Industry Closed Circuit Television(CCTV)

1.Outline
In the industrialized world oil demand rising on the situation, in order to increase the efficiency of oil drilling project in the right equipment and operating environment also continuing to set new requirements.

Digital video system can be widely used.

The drilling project, the number of oil rigs drilling monitoring system will allow the Secretary for Security in the premise, not only to observe all the requirements of the position, but also convenient and efficient to operate equipment, and to a large extent improved the work environment.

Oil rig digital monitoring systems in modern drilling engineering plays a very important role.
SXZJ-4 drilling Digital Monitoring System is a novel and practical video systems, and has explosion-proof, anti-corrosion and harsh climatic conditions of stability characteristics. Devoted to the oil, gas and mining projects in real-time energy monitoring.
Front-end integration with electrical explosion-proof cameras zoom function can not see distant objects clearly displayed on the screen.

Yuntai omnidirectional camera operators to unrestricted vision can be observed that an arbitrary local environment.

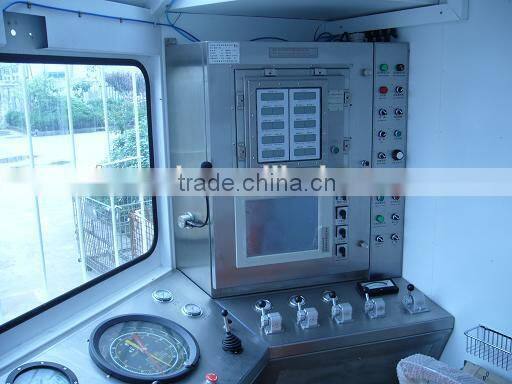

Using a digital back-end flat panel television on chemical control, driller in the limited space, the touch screen of its small size, easy to operate and stability characteristics of a strong and unique advantage.

The devices, taking into account the practicality of using the integrated a dedicated plug cables and air links to facilitate installation and removal.

This system is fully integrated into the digital networks of the concept of maximum system on intelligent control, both higher than the previous cost performance simulation equipment.

2. the system functions:
1,through television systems for industrial winch, two-story units, solid control, pumping stations surveillance.
2, in the industrial touch-screen television that can directly image to the perturbation four-screen video or switch.
3, in the industrial touch-screen television that can directly regulate Ex camera lens aperture, zoom, zoom.
4, through the touch screen control Ex Yuntai, under the left and right of the direction of rotation.
5, Secretary of drilling staff communication with the outside world.

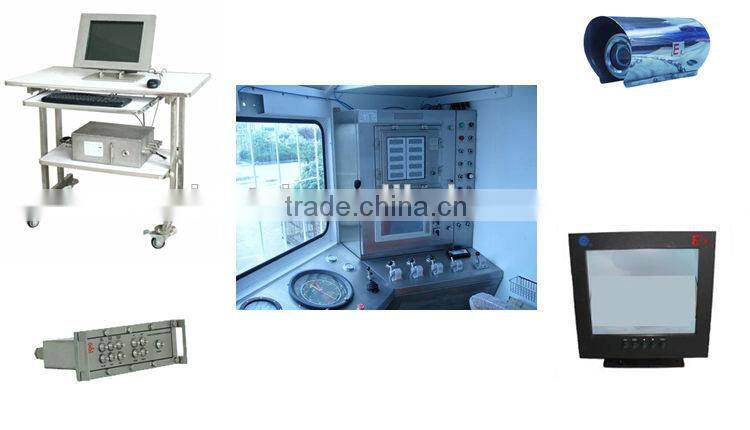

3. systems and equipment introduction:
1, explosions preservation color zoom camera
Ex-preservation NTAR8000 color zoom camera using flameproof structure, for all its material seamless stainless steel tube, stainless steel flanges, and other moving parts made of stainless steel.

A good anti-corrosion properties and sealing properties, applicable to Exd II BT5 explosive gases from indoor environment.

It can be applied in chemical, petroleum, natural gas production base, Terminal, firearms, ammunition and other vulnerable areas of the explosion.
The design and manufacture of products with GB3836.1-2000, GB3836.2-2000 international law. Ex registration Exd II BT5. In July 2003, National Instruments menstrual Safet.Supervision, Inspection Station Explosion detection through, explosions qualified license: GYB05688; T

he French technology Quality Supervision Evaluation Commission finds that China's entry into the WTO recommended products.

2, explosions integration Yuntai cameras
Ex-preservation and so NTAR3000 Yuntai one machine, and the main shell of a rotating stainless steel materials made of a good tightness and resistance to corrosion. Applicable to all explosive gas in the environment all-weather use, such as chemical, oil, gas, oil depots, ammunition depots and other vulnerable areas of the explosion. This new product structure, the hoods and electric Yuntai two parts. Yuntai electric load is part of the huge, smooth rotation, noise, the advantages to small difference. The explosion-proof products for Exd II BT5 signs, grading IP66 protective shell, product design GB3836.1 with GB - 2000, the GB3836.2-2000, in the end of March 2005 as National Instruments explosion-proof safety oversight detection through testing stations, explosions qualified license: GYB05687; IP66 protection rating.

3, 15 "high brightness industrial thin flat-panel TV (embedded)
u products using a resistive touch screen (waterproof oil-dust) for the high-strength aluminum front panels, with NEMA4 or IP65. UPF200 - AA200W ATX industrial power, with PFC standards. 1 / 4 screen displays, in both English and Chinese, Russian (optional), multiple password protection function
