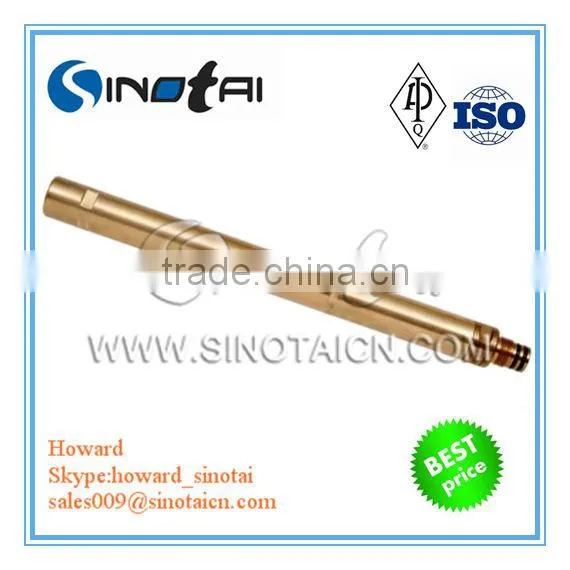

AT25 Logging Casing Collar Locator
Application Area
Model AT25 Logging CCL is mainly used for production well logging. It measures positions of collars of casing and tubing in the production wells, water-injection wells and gas-injection wells. It can also be used to correct well depth and detect sand level in production wells.
Features
1. The tool is powered by a single power supply and outputs analog signals. It is characterized by stable signal output, high sensitivity, good linearity, small temperature drift and strong adaptability.
2. It can be connected to any surface computerized logging system.
Technical Specifications
1. Working environment:
(1). pressure: ≤ 70MPa
(2). Temperature: ≤170℃
2. Electronics:
(1). working voltages: ±20~100VDC
(2). Working current: 6 ± 1mA
(3). Output signal: Analogue signals
3. Mechanics: OD:25mm
(1). Length: 350mm
(2). Zero length: 120mm
(3). weight: 1.7kg
4. Measuring range: 10~180mm
5. Cables: mono- or multi-conductor armoured logging cable
6. Logging speed: 9~12m/min
With fair price, fast delivery, considerate service, we have been supply our goods for over 20 countries,
Any demand , pls feel free to contact with me.
