high pressure air filter
- 5000 Piece / Pieces per Month
- Tianjin Shanghai
- T/T D/P D/A
Product Details
Condition: | New | Construction: | Box Filter | Filtration Grade: | Medium Filter |
Medium Material: | Fiberglass | Place of Origin: | Shandong, China | Brand Name: | SINOTAI |
Dimension(L*W*H): | 50*70*30cm | Weight: | 50KGS | Certification: | ISO |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
standard
Product Description
SINOTAI PETROLEUM EQUIPMENT CO., LTD

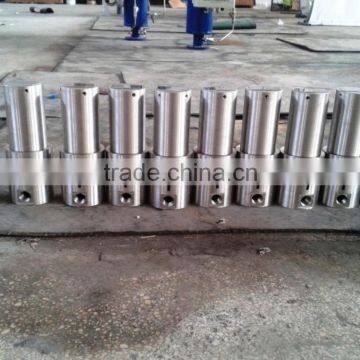

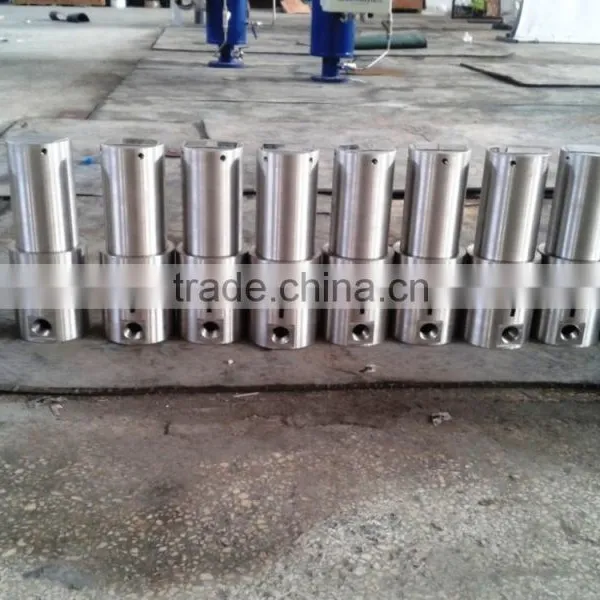

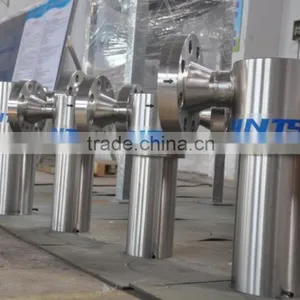

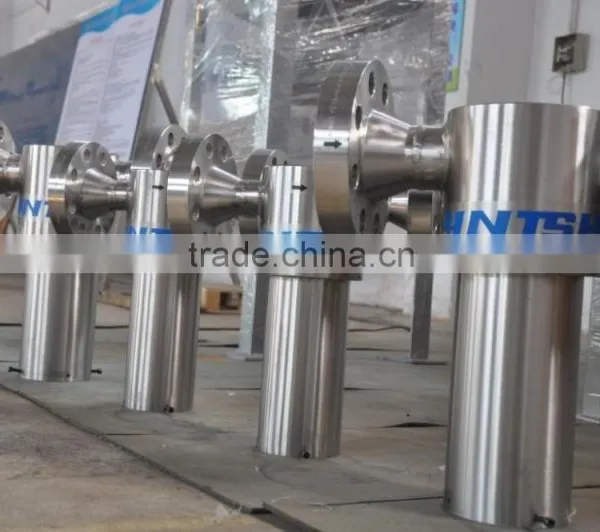

High pressure air filter
Description >> The working pressure range of SGA-D series high pressure filter is 25-400 bar, and it is the most security and reliability record range. Compared with other products in filter industry, HS series high pressure filter provides considerable technical and economic advantages for high pressure operation system.
Material >>
Top shell: CS(optional 16 MnR III), SS(316 III) Bottom shell: CS(optional 16 MnR III), SS(316 III) Sealing: fluorine rubber Connection: flange, thread, butt welding

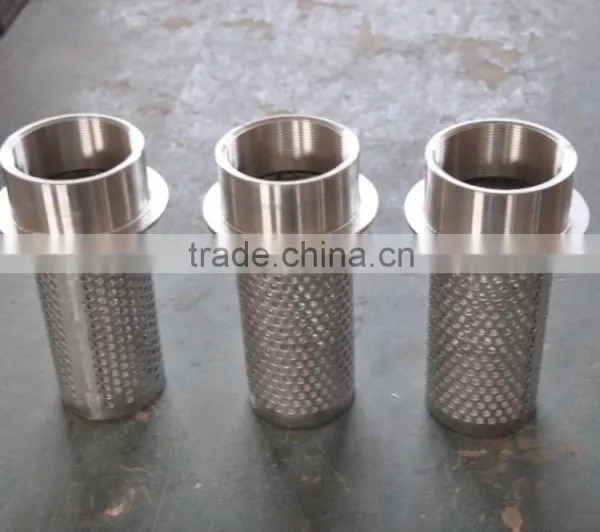

Filter element >>
Polyester filter element, glass fiber filter element Washable Stainless steel filter element Filtration precision: 0.003 micron to 10 micron
Filter model | Max flow rate m3/min @7bar | Max working pressure barg | Installation specification mm | |||||||
A | B | C | D | E | F | G | H | |||
SGD-D-30 | 30 | 64 | 165 | 85 | R1/4" | 145 | 130 | 90 | 50 |
|
D-60 | 60 | 64 | 165 | 85 | R3/8" | 145 | 130 | 90 | 50 | 4 |
D-120 | 120 | 64 | 205 | 105 | R1/2" | 185 | 190 | 110 | 50 | 4 |
D-180 | 180 | 64 | 230 | 105 | R3/4" | 205 | 190 | 110 | 50 | 4 |
D-270 | 270 | 64 | 235 | 119 | R1" | 210 | 190 | 130 | 70 | 4 |
D-360 | 360 | 64 | 290 | 119 | R1 1/4" | 255 | 250 | 130 | 70 | 4 |
D-480 | 480 | 64 | 315 | 150 | R1 1/2" | 280 | 250 | 160 | 80 | 4 |
D-720 | 720 | 64 | 405 | 186 | R2" | 365 | 340 | 200 | 110 |
|
| ||||||||||
Filter model | Max flow rate m3/min @7bar | Max working pressure barg | Installation specification mm | |||||||
A | B | C | D | E | F | G | H | |||
SGD-D-30 | 30 | 64 | 165 | 85 | R1/4" | 145 | 130 | 90 | 50 | |
D-60 | 60 | 64 | 165 | 85 | R3/8" | 145 | 130 | 90 | 50 |
|
D-120 | 120 | 64 | 205 | 105 | R1/2" | 185 | 190 | 110 | 50 |
|
D-180 | 180 | 64 | 230 | 105 | R3/4" | 205 | 190 | 110 | 50 |
|
D-270 | 270 | 64 | 235 | 119 | R1" | 210 | 190 | 130 | 70 |
|
D-360 | 360 | 64 | 290 | 119 | R1 1/4" | 255 | 250 | 130 | 70 |
|
D-480 | 480 | 64 | 315 | 150 | R1 1/2" | 280 | 250 | 160 | 80 |
|
D-720 | 720 | 64 | 405 | 186 | R2" | 365 | 340 | 200 | 110 |
|
Company Profile
As a professional supplier of OCTG, drilling equipment and workover service, Sinotai Petroleum Equipment Co., Ltd. lies in the production base of petroleum equipment and China's second largest oil field --Shengi Oilfield. Our company is a high-tech enterprise in Dongying City with business scope covering the sale, trading, post-sale service and technological development of a wide variety of petroleum equipment.
Besides OCTG, we provide our customers with other drilling and oil recovery equipment like fishing tools, cementing tools, workover rigs, pumping units and OCTG accessories.
The striving target of our company is "Prestige first, Quality supreme; The shortest delivery time, The lowest price, The best quality". Customers' needs are our first priority and customer satisfaction is the bottom line by which we measure our success.
