Specifications
1.IDAP/Integrated Data Acquisition Surface System2.With remote transfers and control by the ether-net
petitive price
Product Name:

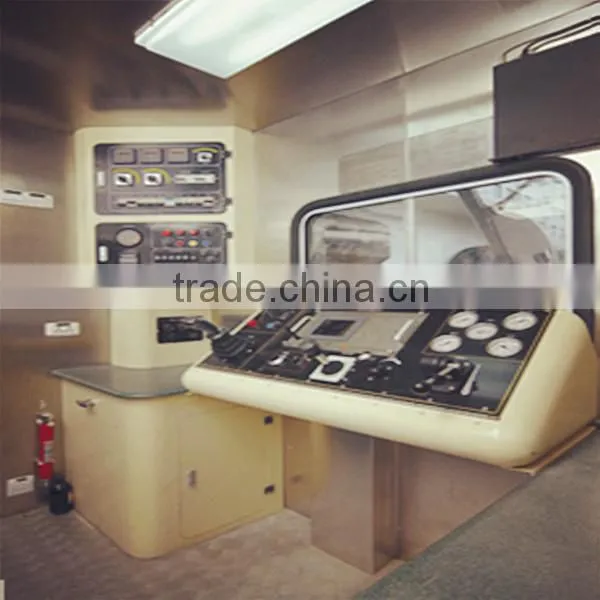

IDAP/Integrated Data Acquisition Surface System
Product Explanation:
The integrated surface system is made up of a stand-alone system and a portable system with the latter being the optional configuration. These two systems can either work separately or interchange some of the functions. The portable system can be the redundant backup to the stand-alone system and carry on the undergoing logging operations once the stand-along system break down.
Product Features:
|
With remote transfers and control by the ether-net With Dynamic Tool Library Register by OOD With good real-time ability based on VxWorks OS Combo Log display and plot with many view and presentation template Based on high performance and reliable cPCI Bus Integrated with FPGA,DSP to decode digital signal Tool Dynamic Library with SDK Humanized operation desktop |
Product types and specifications:
Enviroment:
Input Voltage |
220VAC±10%,50Hz±2Hz |
Input Power |
>3,000W |
Operating temperature |
5-40℃(41~100°F), Relative humidity≤80% |
Storage temperature |
-35-70℃(-31~158 °F) , Relative humidity ≤ 90% |
Shock |
147m/s2,6ms±1ms or truck bumping test 2g |
Vibration |
19.6m/s2, 5Hz~55Hz or truck bumping test |
Continuous operation time |
not less than 72h |
Signal types
Analog signal: 16 channel. w/16 bit, -10V~+10V
Coded signal: Manchester/BPSK/PCM/WTC w/error rate <10-7
Pulse signal:
Channel: 4
Frequency range: 1Hz~10kHz
Counting rate range: 0-65,535
Acoustic waveform signal:
Input signal range: -5V~+5V
16-bit high speed A/D, sampling interval: 1/2/5μs
Downhole tool power supply
Main AC power: 0~600V continuously adjustable, 0~1A
Auxiliary AC power: 0~600V continuously adjustable, 0~1.5A
Main DC power: 0~600V continuously adjustable, 0~1A
Auxiliary DC power: 0~600V continuously adjustable, 0~1.5A
Program-controlled power: 0~200VDC, 0A~0.5A
Relay power: 115/230/345VDC, optional
