Home > Electrical & Electronics > Sensor > Pressure Sensor > GTZ20F1500 Ultrasonic Tubular Reactor Ultrasonic Transducer

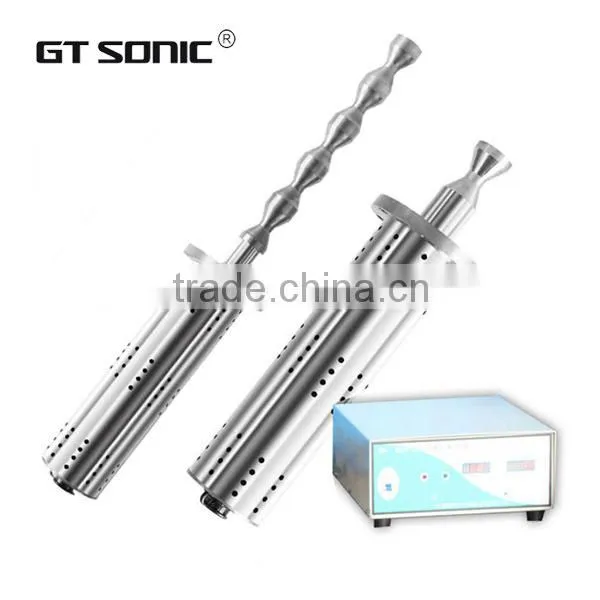

GTZ20F1500 Ultrasonic Tubular Reactor Ultrasonic Transducer

Name: GTZ20F1500 Ultrasonic Tubular Reactor Ultrasonic Transducer
Brand: GT SONIC
SKU: 119548019
Availability: InStock

GTZ20F1500 Ultrasonic Tubular Reactor Ultrasonic Transducer thumbnail-1

GTZ20F1500 Ultrasonic Tubular Reactor Ultrasonic Transducer photo-1

Negotiable MOQ: 50 Units (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

GT SONIC

Model Number:

GTZ20F1500

Contact Supplier Request Quote Chat Now

Guangdong GT Ultrasonic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name GT SONIC

Model Number GTZ20F1500

Usage Magnetic Sensor

Theory Ultrasonic Sensor

Output Digital Sensor

Ultrasonic transducer Features

Automatic frequency tracking technology making the stable performance

Good acid and alkali resistance

Cavitation produced around the Ultrasound Stick, ultrasonic power distributed uniformly around tank.

Stable output power not influenced by liquid lever, tank size, temperature

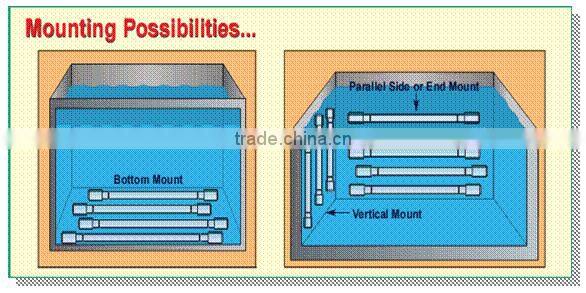

Round shape design for fix any where of the tank.

Sealed waterproof design.

Long life than normal ultrasonic tank.

Acoustic area

Big cleaning tank volume capacity

Ultrasonic transducer Application

Large volume cleaning

Descaling

Drug extraction

Wastewater treatment

Sludge treatment

Ultrasonic transducer Specifications:

Model	GTZ20F500	GTZ20F1000	GTZ20F1500
Ultrasonic frequency	500W	1000W	1500W
Power supply	AC220V10% 50Hz
Distribution capacity	650VA	1300VA	2000VA
working medium	LIQUID
Work Mode	Continous /modulation
Enviroment temperature	0-50°C
Medium temperature	0-150°C
Relative humidity	under 85%
Power box size	350450180mm
Power box net weight	under10Kg
Tool head size	50*210mm	50*232mm	50*400mm
Mounting flange	Dn160mm	Dn160mm	Dn160mm
Mounting flange	360mm	380mm	380mm

To keep the quality of ultrasonic cleaners ,what we did ?

Raw Material Inspection:

Most of our raw material suppliers are located in GT SONIC technology park ,our QC and engineers would make strict inspection of the raw material step by step to ensure quality product.Any unqualified material will be rejected to guarantee best quality .

100% product inspection:

We QC team would check the production process to ensure machine 100% qualified. Each unit would be under testing at least 4hours before packed ,and sales person will send inspection pictures for your checking .
