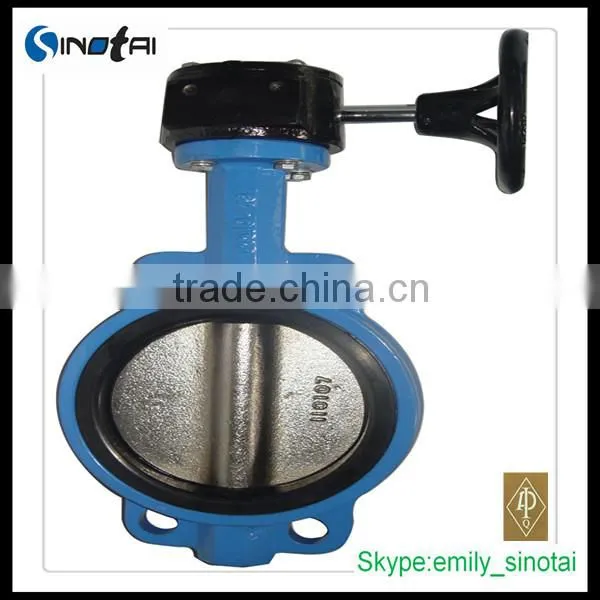

Gearbox wafer butterfly valve
- 1000 Set / Sets per Month
- Tianjin Shanghai etc
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | Sinotai | Model Number: | DN400 - DN500 |
Type: | Other, drill tools | Machine Type: | Drilling Equipment | Certification: | API |
Material: | Iron | Processing Type: | Forging | Use: | Well Drilling |
Packaging Details
Plywooden cases Ctns or according to customers reqiremen
Product Description
Specifications
1.Body : Ductile Iron Casting Iron2.Disc : Ductile Iron Stainless Steel
3.Driving Style : Lever Gear actuator, etc

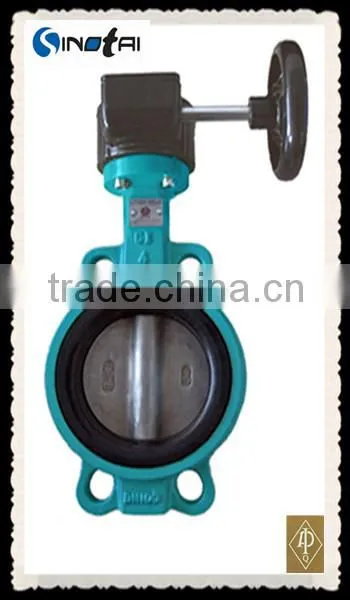

Gearbox wafer butterfly valve
Specification:
Size: DN400 - DN500
Design standard: API 609, BS EN593.
Face-to-Face dimension: API 609, ISO 5752, BS EN558, BS 5155.
Flange drilling: ANSI B16.1, BS EN1092-2, DIN 2501 PN10/16, BS 10 Table E,JIS 10k/16k.
Test: API 598.
Pressure & Temperature:
Working Pressure | 10bar / 16bar |
Testing Pressure | Shell: 11 bar / 17.6 bar; Seal: 15 bar / 24 bar. |
Working Temperature | -10oC to 80oC (NBR); -10oC to 120oC (EPDM) |
Suitable Media | Water, oil and gas. |
Materials:
Part | Material |
Body | GG20, GGG40, WCB, CF8 |
Disc | Nickel ductile iron; stainless steel; Al bronze etc. |
Seat | NBR / EPDM / PTFE / VITON |
Stem | Stainless steel |
Bushing | PTFE |
"O" Ring | NBR |
Application:
This valve is used for throttling or shutting off the flow of corrosive or non-corrosive gased, liquids and semi-liquid. It can be installed in any selected position in pipelines in the industries of petroleum processing, chemicals, food, medicine, textile, paper making, hydroelectricity engineering, building, water supply and sewage, metallurgy, energy engineering as well as light industry.
Company Profile
As a professional supplier of OCTG, drilling equipment and workover service, Sinotai Petroleum Equipment Co., Ltd. lies in the production base of petroleum equipment and China's second largest oil field --Shengi Oilfield. Our company is a high-tech enterprise in Dongying City with business scope covering the sale, trading, post-sale service and technological development of a wide variety of petroleum equipment.
Besides OCTG, we provide our customers with other drilling and oil recovery equipment like fishing tools, cementing tools, workover rigs, pumping units and OCTG accessories.
The striving target of our company is "Prestige first, Quality supreme; The shortest delivery time, The lowest price, The best quality". Customers' needs are our first priority and customer satisfaction is the bottom line by which we measure our success.
