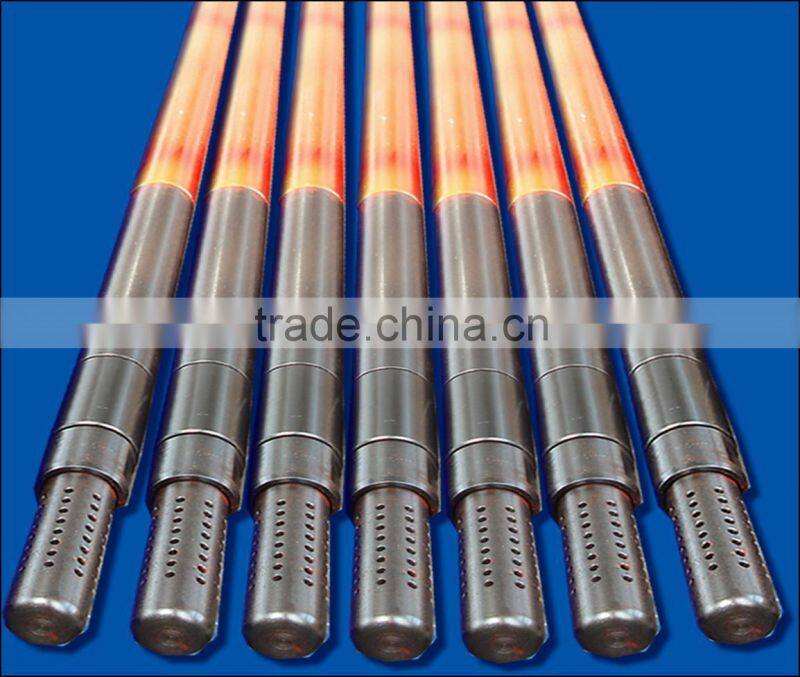

THD Tubing Pump For Producing Viscosity Oil

THD Tubing Pump For Producing Viscosity Oil thumbnail-1
THD Tubing Pump For Producing Viscosity Oil photo-1
US$ 1,000 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
SINOTAI
Model Number:
Type THD
Contact Supplier Request Quote Chat Now
Sinotai Petroleum Equipment Co., Ltd.
Silver Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name SINOTAI
Model Number Type THD
Type Other, Tubing pump
Machine Type Drilling Tool
Certification API
Material High Manganese Steel
Processing Type Forging
Use Well Drilling

Specifications

1.API 11AX Conventional Oil Tubing Pump
2.Pump bore O.D: 32 -108mm
3.Plunger Length: 1.2-1.8m
4.Tubing Size: 2 3/8-4 1/2



Tubing pump

Product Explanation:For this type of pump, the barrel is put in the well to the designed depth with tubing. And then put the plunger into the barrel with sucker rod. Given the tubing size, the bore of the tubing pump is larger than that of the rod pump, so the pump rate is higher. According to seating mode, the rod pump can be divided into three types: THC pump (Stationary Heavy Wall, Cup Seating, Tubing pump), THM pump (Stationary Heavy Wall Mech. Seating, Tubing Pump) and THD pump

Product Features:

1.For some large production wells, larger bore of tubing pump can be worked if the on-off connector is installed.

2.Tubing pump is the strongest pump.

3.It has large flowing area for fluid and it is suitable for producing viscosity oil.
4.Stationary Heavy Wall, Tubing Pump, its standing valve can not be pulled out

Product types and specifications:

Specification

Nominal Bore

mm(in)

Plunger Length

m(ft)

Max. O.D.

mm

Rod

in

Tubing in

Pump Constant m3/d

Stroke

m

20-125 TH

32 (1.25)

1.2-1.8(4-6)

73

3/4

2-3/8

1.14

≤8.0

25-125 TH

32 (1.25)

88.9

3/4

2-7/8

1.14

20-150 TH

38 (1.50)

73

3/4 (5/8)

2-3/8

1.64

25-150 TH

38 (1.50)

88.9

3/4 (5/8)

2-7/8

1.64

20-175 TH

44 (1.75)

73

3/4

2-3/8

2.24

25-175 TH

44 (1.75)

88.9

3/4

2 7/8

2.24

25-200 TH

51 (2.00)

88.9

3/4

2-7/8

2.91

25-225 TH

 57 (2.25)

88.9

3/4

2-7/8

3.69

25-250 TH

64 (2.50)

88.9

3/4

3-1/2

4.55

30-275 TH

70 (2.75)

108

7/8

3-1/2

5.50

35-325 TH

83 (3.25)

116

7/8

4

7.70

40-375 TH

95 (3.75)

116

1

4-1/2

10.26

35-425 TH

108 (4.25)

147

1-1/8

4

13.18



 THD Tubing Pump For Producing Viscosity OilTHD Tubing Pump For Producing Viscosity OilTHD Tubing Pump For Producing Viscosity Oil
