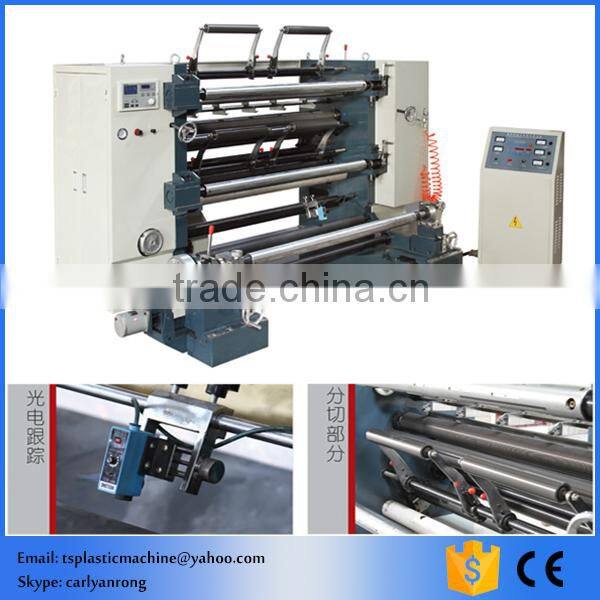

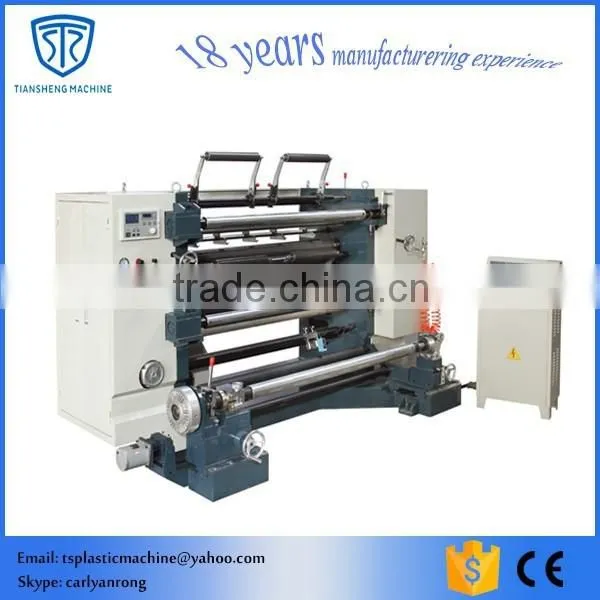

Microcomputer LFQ vertical type plastic film slitting machine
| Usage: |
This vertical type plastic film slitting machine is suitable for separating and cutting various roll materials like BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. And can cut edge, separate and cut material according to different requirements during production. |
Model |
LFQ700 |
LFQ1100 |
LFQ1300 |
Max.width |
700mm |
1100mm |
1300mm |
Max.Unwind.Diameter |
Φ600mm |
Φ600mm |
Φ600mm |
Max.Rewind.Diameter |
Φ450mm |
Φ450mm |
Φ450mm |
Cutting Width |
30-650mm |
30-1050mm |
30-1250mm |
Inner Dia |
Φ76mm |
Φ76mm |
Φ76mm |
Cutting thickness |
10-75um(anvil blade) 10-350um(circular knife) |
10-75um(anvil blade) 10-350um(circular knife) |
10-75um(anvil blade) 10-350um(circular knife) |
Speed of slitting |
160m/min |
160m/min |
160m/min |
Accuracy |
±0.15mm |
±0.15mm |
±0.15mm |
Power |
2.7kw |
3.5kw |
4kw |
Weight |
1500kg |
1800kg |
2200kg |
Overall Dimension |
1950×1370×1460mm |
2300×1370×1460mm |
2540×1370×1460mm |

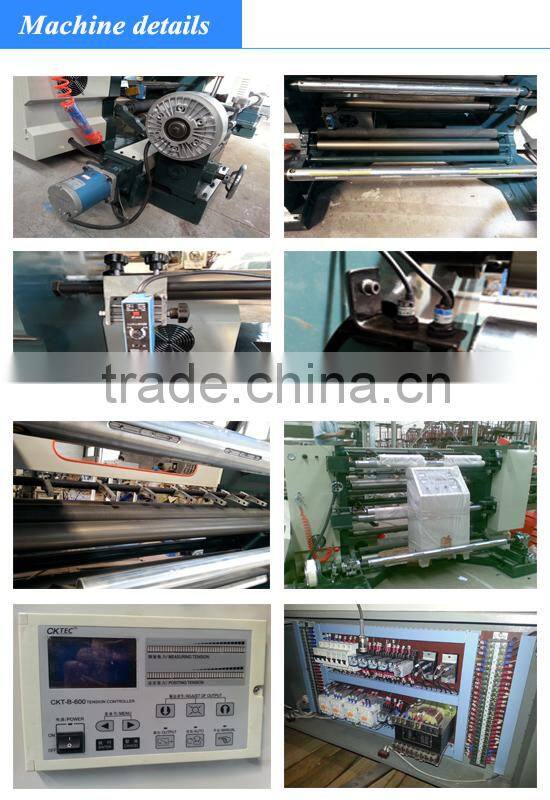

Features of plastic film slitting machine |
|
1.The paper Slitting Machine is a kind of vertical separating and cutting machine, rolling and releasing can be in front of or at the back of the machine. |
2.Independent master control screen, more flexible and even easier operation. |
|
3.Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent material. |
4.Releasing tension adopts magnetic powder control. |
5.Rolling adopts magnetic clutch control. |
6.Automatic slitter edge blowing-inhaling device. |
7.Automatic meter counting of material moving length. |
OUR SERVICE:
1. Installation Services
Installation Services are available with all our new machines. We can send our technician
to your factory to help you install your purchased machines from our factory. Of course,
your factory need to supply the round trip tickets food, hotel and salary to our technician.
2. Clients Training Services
We advise each customer can send your own technician come to our factory to learn how
to operate our machines. We will let our technician teach and train your technician hand
by hand till he can operate our machine by himself.
3. After Sales Service
Our machine guarantee time is one year.
We will send many easy broken spare parts in the tool box together with machines.
If any parts broken, please take a pictures or a videos to us.
