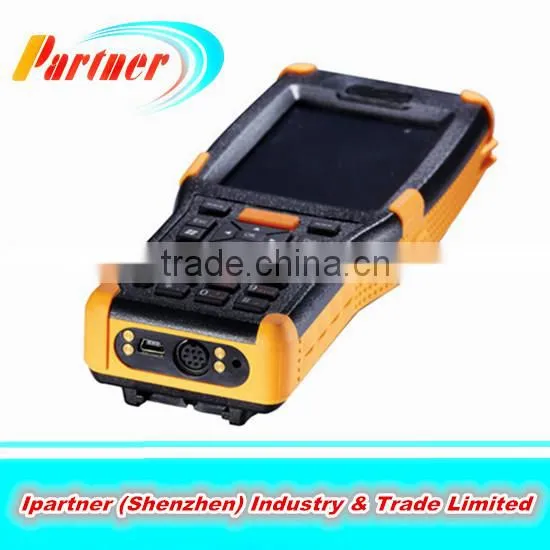

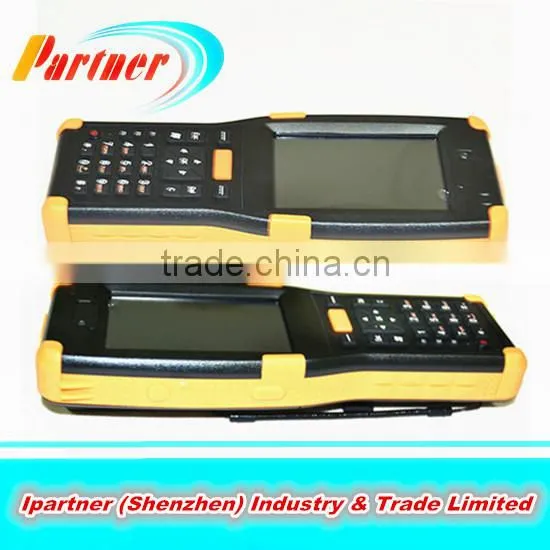

Factory Competitive price Windows CE 6.0 OS Handheld PDA support Wifi buletooth1D barcode scanner can customized RFID,2D code scanner,GPS
1.Industrial PDA,Rugged PDA,Handheld PDA
2.Windows CE 6.0
3.1d/2d code,GPRS,WIF,GPS,RFID
Products DetailS:
Processing platform | |
Processor |
ARM11 dominant frequency 800MHz |
Operating system |
Microsoft Windows CE6.0 |
Memory |
2GB NAND Flash |
System environment | |
System software development |
Microsoft Windows CE SDK |
System programming environment |
Support C++/C#.NET/VB.NET / Visual Studio 2005/2008 or higher edition |
Data acquisition | |
Barcode scanning |
one-dimensional barcode scanning engine:Symbol SE955 / two-dimensional barcode scanning engine:Symbol SE4500 |
RFID reader-writer |
LF/HF/UHF:125KHz~134.2KHz/13.56MHz/UHF (900M) optional |
Wireless communication | |
WLAN |
WIFI IEEE 802.1b/g |
WWAN |
GPRS(standard configuration,built-in aerial)/ CDMA/3G |
WPAN |
Bluetooth V2.0(safety certificate,data encryption) |
Infrared communication |
Read infrared smart meter data, applying to power meter reading system |
GPS |
positional accuracy less than 10m, rate accuracy less than 0.01m/s |
Power management | |
Working power supply |
3.7V 4000mAH Polymer batteries |
Physical property | |
Display |
3.5 inch color tangible TFT-LCD screen QVGA(240×320) |
Keyboard |
26 keys letters-digit shift backlit keyboard |
Voice frequency |
0.5Wspeaker |
Measurement |
195mm×78mm×43mm |
Weight |
<400g including standard battery package |
Photographed function |
5mega-pixel camera(2048*1536) |
Expansion slot |
Support 1 SIM card, 2 PSAM card and 1 Micro SD(TF) card |
Caution |
flashlight |
Operating environment | |
Operating temperature |
-20°C to +50°C |
Storage temperature |
-25°C to +70°C |
Humidity |
5%RH-95%RH(no condensation) |
Construction Features |
Conform to IP65 sealing standard |
Anti-throw |
Within operating temperature, 6 surfaces are able to withstand drop from 1.5m height |
Rolling test |
In the diameter range of 0.5m, the 6 surfaces undergo rolling test for 1000 times. |
Anjljn b xxyedxz ti-static |
±8kVcontact discharge;±15kVair discharge |

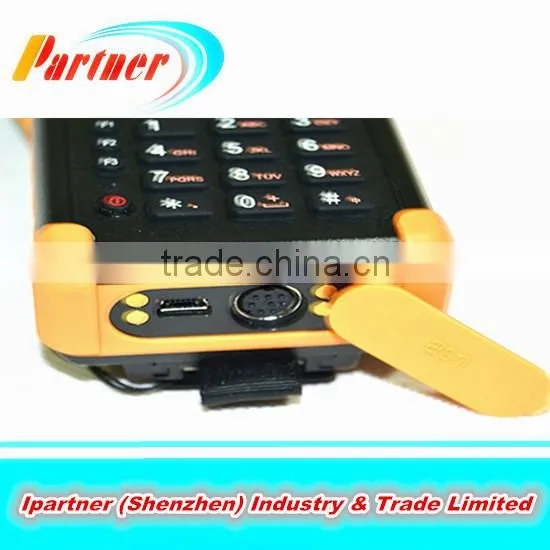

Extended interface |
USB2.0; IO extended port(RS-232,RS-485 serial ports); infrared communication, Optical communication |
Scanning parameter | |
Scan head/decode |
Two-dimensional camera, laser aiming line, any one- or two-dimensional barcode, national postal code and OCR character are readable. |

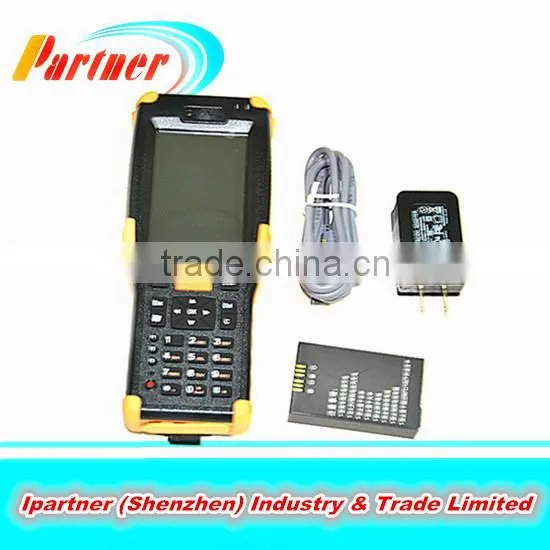

Standard fittings |
USB data line,handwriting pen,leather sheath,portable charger,Serial Port Line(RS232,RS485) |
Within Warranty |
Since the data of delivery, 24 months free warranty is offered except for human damage. |
Expiration of warranty |
Warranty with charges (one time or one year warranty for your choose) |
Product certificates |
CCC standard certificate /EIP contamination control mark /GPRS and EVDO Network Access License of Telecommunication Equipment |
Application Scenarios:
A, Ticket Verification (Barcode scanners) & Car Park Charging (POS terminals)
B, People Verification & Authentication (Fingerprint Sensors, ID Card Readers)
C, Driving License & Car Verification (Police Affairs Terminals)
Our Advantage:
Free SDK :
No special training required. Customers can also set up the handheld system in other languages
(beside Chinese & English).
Open API:
Free SDK, open software platform for secondary application development and customized programs.
Our Services:
1 |
Trade terms : |
FOB,FCA,EXW,CIF,CNF |
2 |
Payment way : |
T/T, West Union, Money Gram, L/C |
3 |
Payment condition : |
30% deposit in advance, 70% balance before delivery |
4 |
Shipping way : |
DHL, EMS, FEDEX,UPS |
5 |
Delivery time : |
Sample order after ensure the payment in 2- 5 days, |
Batch order could negotiate basic on quantity. | ||
6 |
Package : |
Neutral carton |
7 |
Warranty : |
1 year warranty for main device as well as 24 hours on line service to help you out. |
