led transformer for small led celling lights
LED Waterproof Power Supply Specification
1.Product Name and No: | ||||||||||||||
Name: |
LED Power Supply |
|||||||||||||
Item No: |
CV-24010A |
|||||||||||||
2.Technical Parameters: | ||||||||||||||
Working Voltage(V) |
AC 90-250V |
Frequency(Hz) |
47-63Hz |
|||||||||||
Input Current(A) |
AC 0.14A |
|
|
|||||||||||
Output Voltage(V) |
DC 24±0.5V |
Maximum Output Power(W) |
10W |
|||||||||||
Maximum Output Current(A) |
DC 0.42A |
|
|
|||||||||||
Voltage Resistance(KV) |
AC 2KV/3mA 3S |
Short-circuit Protection |
Yes |
|||||||||||
Temperature Rise(℃) |
≤28℃ |
Temperature Protection |
Yes |
|||||||||||
Waterproof Rate |
IP67 |
Overload Protection |
Yes |
|||||||||||
Certificate |
CE,RoHS,SAA |
Working Temperature(℃) |
-25℃~45℃ |
|||||||||||
N.W(g) |
0.12kg |
|
|
|||||||||||
3.Measurement(mm) | ||||||||||||||
L±2 |
W±1 |
H±1 |
L1±5 Input |
L2±5 Output |
La±5 |
Lb±5 |
Lc±2 |
Ld±2 |
||||||
75 |
30 |
20 |
100 |
100 |
35 |
35 |
5 |
5 |
||||||
4.Others |
|
|||||||||||||
QTY/CTN |
120pcs/CTN |
|||||||||||||
Carton Size |
39.4*25.4*24.5cm |
|||||||||||||
G.W/CTN |
15Kg |
|||||||||||||
Lead Wire |
Input: VDE two -core 0.75 Square Circular Axes 10cm; Output: VDE two-core 0.75 Square Circular Axes 10cm |
|||||||||||||

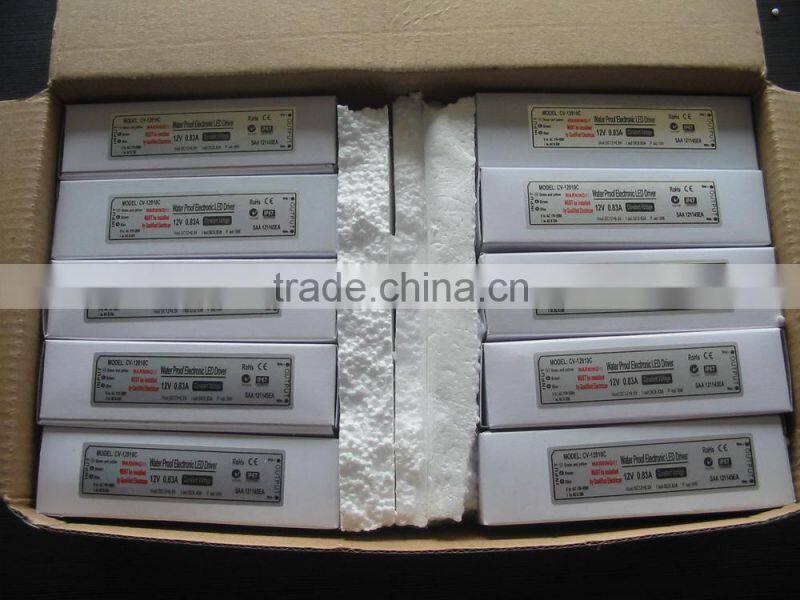

120pcs per carton
39.5*25.4*24.5cm
