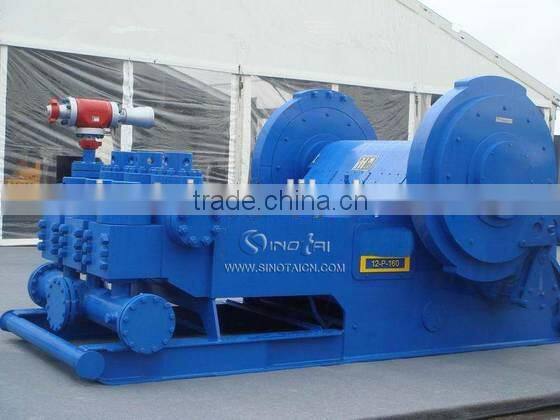

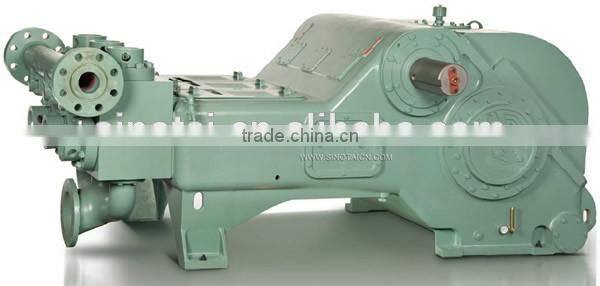

PZ series Mud Pump for Drilling rig with API standard
- 10 Set / Sets per Month
- Shanghai / Tianjin Port
- T/T
- Triplex piston drilling mud pump assembly with API standard
- Hot selling !! Air Tube Clutch for Drilling Rig
- Surface Drive Screw Pumps(PC pump)
- High Quality Surface Drive Screw Pumps(PC pump)
- High Quality Surface Drive Screw Pumps(Progressive Cavity pump)
- Hot selling!! 3NB-350,3NB-500,3NB-600,3NB-800 ,3NB-1000,3NB-1300,3NB-1600 triplex mud pump
Product Details
Place of Origin: | China | Brand Name: | SINOTAI | Model Number: | PZ |
Type: | Other, mud pump, PZ7/8/9/10/11 | Machine Type: | Drilling Equipment | Certification: | API |
Material: | Stainless Steel | Processing Type: | Casting | Use: | Other, oilfield |
Packaging Details
Standard Export Fumigation wooden box, Plywood Box, or Steel Box.
Product Description
Specifications
1.API Spec 7K standard2. Replaceable bronze crosshead slides.
3.High qulity and customer checked
1. Pump case are welded castings steel and steel plates
2.Crankshaft bearings are double-row spherical roller bearing
3.Double extended Jackshaft carried on heavy-duty straight roller bearings.
4.Connecting rod tip are fitted with roller bearings.
5.Wrist pin end carried on double row long cylindrical roller bearing.
Replaceable bronze crosshead slides.
7.Main gears are machined to herringbone gear.
8.Valves are API 7# valves seats.
9.Discharge connections can be made on either side of pump.

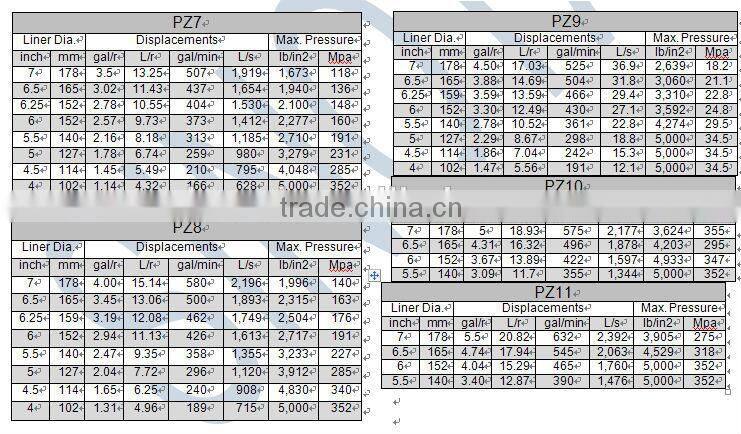

10.Suction connections at the center of the cylinder manifoldParameter:
Company Profile
As a professional supplier of OCTG, drilling equipment and workover service, Sinotai Petroleum Equipment Co., Ltd. lies in the production base of petroleum equipment and China's second largest oil field --Shengi Oilfield. Our company is a high-tech enterprise in Dongying City with business scope covering the sale, trading, post-sale service and technological development of a wide variety of petroleum equipment.
Besides OCTG, we provide our customers with other drilling and oil recovery equipment like fishing tools, cementing tools, workover rigs, pumping units and OCTG accessories.
The striving target of our company is "Prestige first, Quality supreme; The shortest delivery time, The lowest price, The best quality". Customers' needs are our first priority and customer satisfaction is the bottom line by which we measure our success.
