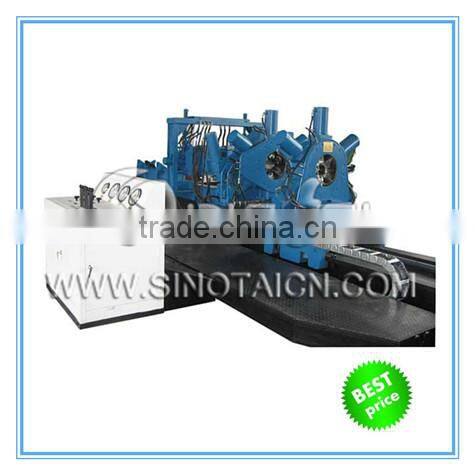

YXQ16-II-400 Hydraulic Bucking Unit
- Guangzhou Shanghai
- T/T
You May Like
-
YXQ16-II-400 Hydraulic Bucking Unit/(2 7/8 to 15 1/4" Diameter Capacity)
-
YXQ16-II-400 MAKE UP & BREAK OUT MACHINE/(2 7/8 to 15 1/4" Diameter Capacity)
-
YXQ16-II-320 MAKE UP & BREAK OUT MACHINE/(2 7/8 to 15 1/4" Diameter Capacity)
-
Drill Pipe
-
API 5DP Drill Pipe/drilling Rod
-
Oil Drilling API 5DP Drill Pipe
Product Details
| Place of Origin | China | Brand Name | SINOTAI | |
| Model Number | YXQ16-II-320;YXQ16-II-400 | Power | Hydraulic |
Standard Package or as your requirements
Product Description
Specifications
1.YXQ16-II-400 hydraulic bucking unit 2.2 7/8 to 15 1/4" Diameter Capacity;3.360 degree ontinuous Rotation HeadstockYXQ16-II Make Up & Break Out Machine
YXQ16-II Make Up & Break Out Machine is a self-contained hydraulic drive unit which is designed for fast and accurately make up or break out the threaded connections of tubular tools and motors in either workshop or oil field location.
FEATURES:
- Quick rotation unit;
- 2 7/8”to 15 1/4" Diameter Capacity;
- Synchronized Clamp Cylinders in Movable Chuck and Shock Screwing Chuck;
- 360ºContinuous Rotation Headstock is optional.
Specifications-YXQ16-II MAKE UP & BREAK OUT MACHINE
Model | YXQ16-II-320 | YXQ16-II-400 |
Chucking Capacity | 73mm~340mm | 73mm~390mm |
Motor power | 15kw | 15kw |
Motor speed | 1500rpm | 1500rpm |
Max. make-up torque | 150KN.m | 150KN.m |
Max break-out torque | 180KN.m | 180KN.m |
Stroke for push/pull cylinder | 1500mm | 1500mm |
Max tons for push/pull cylinder | 150KN | 150KN |
Quick Operation torque | 2.5~4.0KN.m | 2.5~4.0KN.m |
Construction

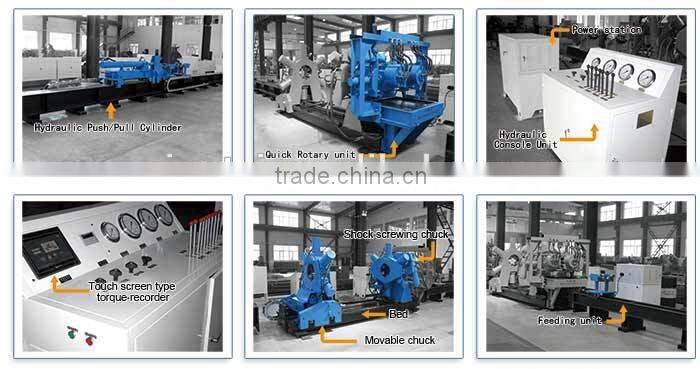

The standard configuration of YXQ16-II make up & break out machine consists of a bed that complete with movable chuck, shock screwing chuck, quick rotation unit, a hydraulic Console Unit and a power station.
Hydraulic Push/Pull Cylinder, Feeding unit, Touch screen type torque recorder are available on request.
Standard Configuration
Adjustable Tong | Weight | 1500kg | 1450kg |
Shock screwing Tong | Weight | 1300kg | 1250kg |
Quick Rotary unit | Weight | 1000kg | 1000kg |
Bed | Weight | 3000kg | 3000kg |
Hydraulic Console Unit | Weight | 300kg | 300kg |
Power station | Weight | 300kg | 300kg |
Optional Unit
Feeding unit (Standard 4 meters) | Weight | 600kg | 600kg |
Push-pull unit (Standard 12 meters) | Weight | 2500kg | 2500kg |
Touch screen type torque recorder | Weight | 20kg | 20kg |
