Drill Pipe

Name: Drill Pipe
Brand: Sinotai
SKU: 119532601
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Sinotai

Model Number:

2-3/8

Sinotai Petroleum Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Tianjin Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Sinotai

Model Number 2-3/8

Type Other, Reverse Circulation Junk Magnets

Machine Type Drilling Equipment

Certification API

Material Stainless Steel

Processing Type Forging

Use Well Drilling

Specifications

1.Drill Pipe
2.Easy operation
3.API standard
4.grade of steel according to the requirements.

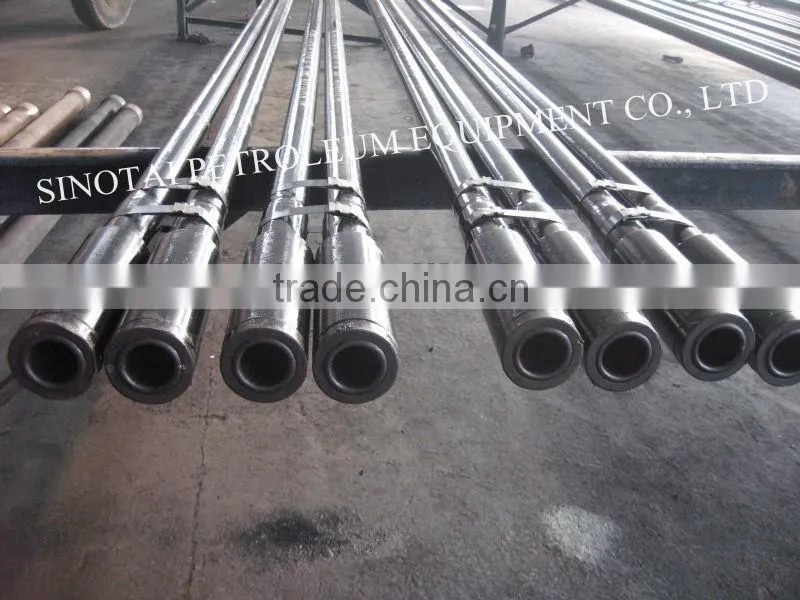

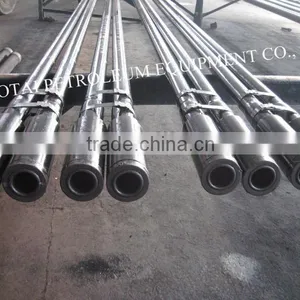

Drill Pipe

1.Drill pipes comply with API SPEC 5 DP standard, drill pipe joint thread processing with API SPEC 7-2 standard.

2.The grade of steel for the drill pipe will be determined according to the requirements of Group 1 and Group 3 of API SPEC 5DP.

3.(i.e.: Group 1--Grade E; Group 3--Grade X-95, Grade -G-105 and Grade -S-135)

The main technical performance and specification for drill pipe:

Size	Weight Designation	Calculated Plain-End Weight		Outside Diameter		Grade	Wall Thickness		Upset Ends. For Weld-on Tools Joint
Size	Weight Designation	Lb/ft	kg/m	in	mm	Grade	In	mm	Upset Ends. For Weld-on Tools Joint
2 3/8	6.65	6.26	9.32	2.375	60.3	E,X,G,S	0.280	7.11	EU
2 7/8	10.40	9.72	14.48	2.875	73.0	E,X,G,S	0.362	9.19	IU or EU
3 1/2	9.50	8.81	13.12	3.500	88.9	E	0.254	6.45	IU or EU
3 1/2	13.30	12.31	18.34	3.500	88.9	E,X,G,S	0.368	9.35	IU or EU
3 1/2	15.50	14.63	21.79	3.500	88.9	E	0.449	11.40	IU or EU
3 1/2	15.50	14.63	21.79	3.500	88.9	X,G,S	0.449	11.40	EU or IEU
4	14.00	12.93	19.26	4.000	101.6	E,X,G,S	0.330	8.38	IU or EU
4 1/2	13.75	12.24	18.23	4.500	114.3	E	0.271	6.88	IU or EU
4 1/2	16.60	14.98	22.31	4.500	114.3	E,X,G,S	0.337	8.56	EU or IEU
4 1/2	20.00	18.69	27.84	4.500	114.3	E,X,G,S	0.430	10.92	EU or IEU
5	16.25	14.87	22.15	5.000	127.0	X,G,S	0.296	7.52	IU
5	19.50	17.93	26.71	5.000	127.0	E	0.362	9.19	IEU
5	19.50	17.93	26.71	5.000	127.0	X,G,S	0.362	9.19	EU or IEU
5	25.60	24.03	35.79	5.000	127.0	E	0.500	12.70	IEU
5	25.60	24.03	35.79	5.000	127.0	X,G,S	0.500	12.70	EU or IEU
