PDC Bits

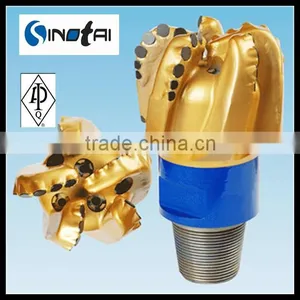

PDC Bits thumbnail-1
PDC Bits photo-1
US$ 5,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Sinotai
Model Number:
PDC
Contact Supplier Request Quote Chat Now
Sinotai Petroleum Equipment Co., Ltd.
Silver Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Sinotai
Model Number PDC
Type Center Drill Bit
Material Tungsten Carbide
Use Other, Well Drilling,Well Drilling,gas,water and oil well drilling

Specifications

Specifications
1>Meet with API Spec7-1 &ISO 9001:2008
2>Good quality and after-sale service
3>30 years of experience.

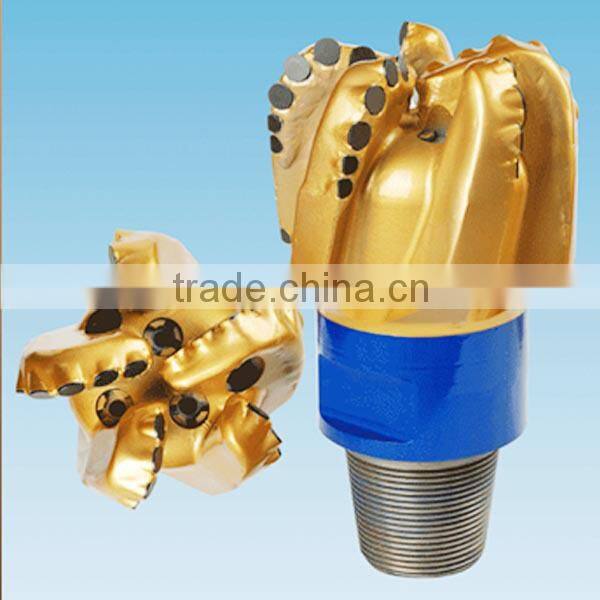

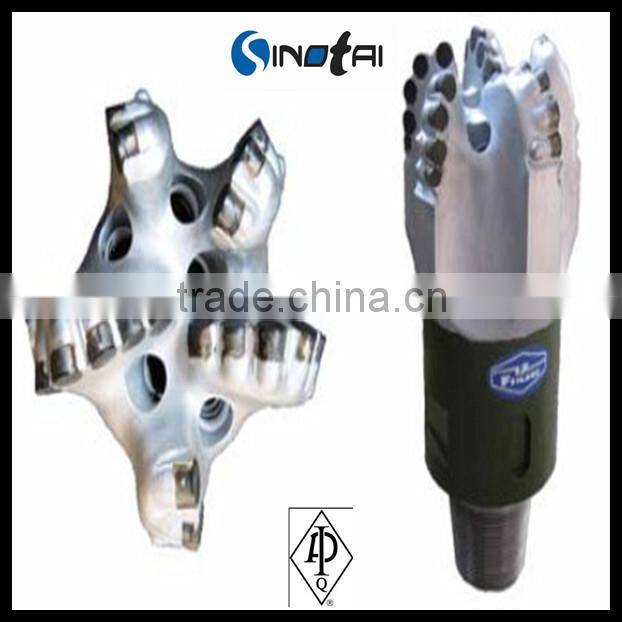

PDC bits

Features:

1. Tungsten carbide matrix PDC possesses high wear resistance and impact resistance.

2.  Parabolic crown profile and maximizes junk slot area can clean bit better, and prolong the bit working life.

3.  Applying hydraulics balance design, 5 renewal nozzles and reasonable nozzles locating angle can gain ideal fluid field in well bottom, fully clean and cool cutter, and prolong the cutter working life.

4.  Non-symmetry blade arrangement enhances drilling well balance.

5.  Optimization for cutter shape, slant angle, cutter numbers prolong the cutter working life in

combination with high quality PDC cutter, and improve ROP and drilling efficiency.

6.  It can be used on rotary or down hole motor.

7.  High HIS is recommended.

The Main Type of PDC bits:



Type

Bit size



Std .API pin

Shank size(inchs)



Approximate weight(kg)

inch

mm

8 1/8M1953GZFA

8 1/8

206.4

4 1/2REG

63

8 3/8M1953GLFA

8 3/8

212.7

4 1/2REG

67

8 1/2M1234AL

8 1/2

215.9

4 1/2REG

70

8 1/2M3235AL

8 1/2

215.9

4 1/2REG

70

8 1/2M2235ALF

8 1/2

215.9

4 1/2REG

70

8 1/2M3235BLF

8 1/2

215.9

4 1/2REG

70

8 1/2M2235L

8 1/2

215.9

4 1/2REG

70

8 1/2M3236AL

8 1/2

215.9

4 1/2REG

70

8 3/4M3235AL

8 3/4

222.3

4 1/2REG

72

8 3/4M2235ALF

8 3/4

222.3

4 1/2REG

72

9 1/2M3235L

9 1/2

241.3

6 5/8REG

85

9 1/2M3236L

9 1/2

241.3

6 5/8REG

85

12 1/4M3235

12 1/4

311.1

6 5/8REG

105



 PDC bitsPDC bits
