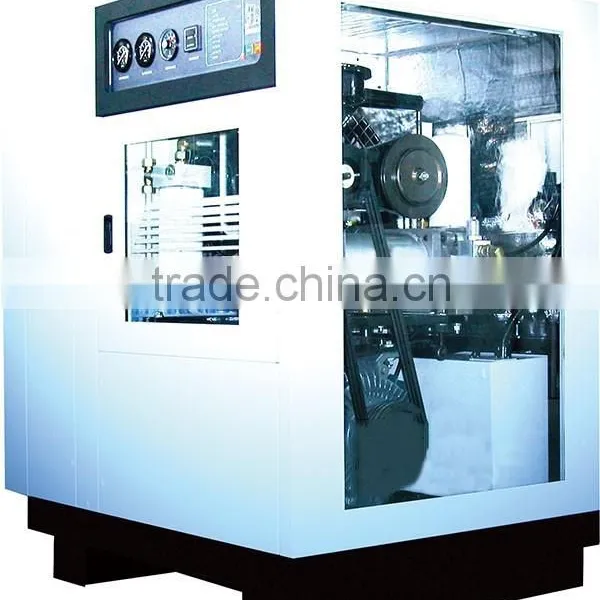

GS-0221E 20HP INDUSTRIAL SCREW AIR COMPRESSOR

DESCRIPTION

* F.A.D. OF WORKING PRESSURE:

 - 7 BAR: 2.40 M³/MIN; 85 CFM.

 - 10 BAR: 1.90 M³/MIN; 67 CFM.

 - 13 BAR: 1.40 M³/MIN; 49 CFM.

* MOTOR POWER: 15KW/ 20HP.

* AIR OUTLET PIPE DIAMETER: 1”

* COMPRESSOR DIMENSIONS:

L 1,185 × W 895 × H 1,280 MM.

* NET WEIGHT: 405 KGS.

* FEATURES:

 - TEMPERATURE CONTROL SYSTEM:  ONCE OIL TEMPERATURE EXCEED THE VALUE SET (STANDARD 70^OC/158^OF), THE CONTROL ACTIVATES, PART OF OIL FLOW PASSES THROUGH COOLER. IF IT REACHES A VALUE ABOUT 15^OC HIGHER, OIL VALVE CLOSES, ALL OIL PASSES THROUGH COOLER.

 - OIL/ AIR SEPARATOR SYSTEM:  Effective separation of oil and vapor, air discharged is clean with oil content below 2 ppm.

 - COOLING SYSTEM:  For markets with 38~40^oC and humidity 70~100%, we provide enlarged cooler suitable for ambient temperature 50^oC. It is 30% larger than AKG original design.

 - INTAKE CONTROL:  Allows for a closed inlet to reduce the starting load.

 - AIR ENDS: air-ends, made in Germany, are products of high technology and latest design. Low RPM, high volume output.
