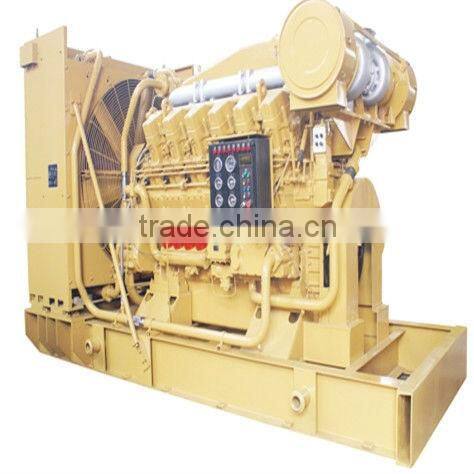

Oilfield Series 3000 Long Stroke Land Diesel Engine L12V190PZL-1

Sinotai Petroleum Equipment Co., Ltd.
5Yrs
Oilfield Series 3000 Long Stroke Land Diesel Engine L12V190PZL-1 thumbnail-1
Oilfield Series 3000 Long Stroke Land Diesel Engine L12V190PZL-1 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Fuel:
Diesel
Stroke:
4 Stroke
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Fuel Diesel
Stroke 4 Stroke
Cylinder Multi-cylinder
Cold Style Other, Water-cooled
Start Other, Air motor, electric motor
Place of Origin China
Brand Name Sinotai
Model Number L12V190PZL-1
Dimension(L*W*H) 3980*2250*2850mm
Weight 11000kg
Warranty free for 1 year
After-sales Service Provided Engineers available to service machinery overseas

Series 3000 Long Stroke Land Diesel Engine

Product Explanation:Considering the development status of domestic and abroad ICE industry, aiming at meeting the power demands of dredgers, mechanic drilling rigs and industrial water pump etc., and can match generator of 50Hz and 60Hz power frequency and satisfy various kinds of power demands. Rated power:1000~1300kW Rated speed:1000~1300r/min

Product Features:

Combining years of experience, cooperating with domestic universities and research institutes, the engine is developed with AVL’s simulation software to be compact, easy to operate and highly dynamic. Series 3000 long stroke diesel engine is designed with the targets of dynamic performance, economy and operation reliability having achieved international leading position.

 Product types and specifications:

Main specification



Model

12 hour power

(kW)/Speed

(r/min)

Continuous hour power

(kW)/Speed

(r/min)

Specific fuel consumption

(g/kW.h)

Specific oil consumption

(g/kW.h)

Overall dimension

(L×B×H)(mm)



Net weigh

(kg)

L12V190ZL-1

1200/1200

1080/1200

≤202

≤1.0

2950×1980×2312

9300

L12V190PZL-1

1200/1200

1080/1200

≤202

≤1.0

3980×2250×2850

11000

L12V190ZL-2

1000/1000

900/1000

≤202

≤1.0

2950×1980×2312

9300

L12V190PZL-2

1000/1000

900/1000

≤202

≤1.0

3980×2250×2850

11000

L12V190ZL-3

1300/1300

1170/1300

≤202

≤1.0

2950×1980×2312

9300

L12V190PZL-3

1300/1300

1170/1300

≤202

≤1.0

3980×2250×2850

11000





Main technical data

No. and layout of cylinders

12V,60°

Type

Four stroke,water cooled,turbocharged and aftercooled,direct injection

Bore

190mm

Stroke

255mm

Total displacement

86.72L

Compression ratio

14.5:1

Direction of rotation

Counter-clockwise(facing to flywheel)

Starting method

Air motor,electric motor

Lubricating method

Pressure and splash lubrication





oilfield Series 3000 Long Stroke Land Diesel Engine L12V190PZL-1
