LT500/250T Type Air Tube Clutch

Sinotai Petroleum Equipment Co., Ltd.
5Yrs
LT500/250T Type Air Tube Clutch thumbnail-1
LT500/250T Type Air Tube Clutch photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
API
Model Number:
common type and ventilation type
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name API
Model Number common type and ventilation type
Size 284
Type Compressor



LT500/250T type Air tube clutch

1.Air tube clutch is a friction clutch that uses compressed

 air as manipulating power source. Generally, this product

 is used on devices that need large torque transfer and more

 rapid transmission, such as drilling machinery, watercraft,

large mechanical press machine, excavator, ball mill, rubber

machinery etc.

2.The air tube clutch has a large transmission torque, combining

 smooth, easy to install, can make a little compensation of defle-

ction to the angular direction and radial direction of main drive

shaft and slave shaft.

3. It be divided into common type and ventilation type two types

type

LT300/100

LT500/250T

AVB600/250

LT700/250T

LT700/135DY

drawing

G301.21.00

T14-014-00

G301.22.00

AF24001.02.01.00A

115.31.00

rotate speed
r/min

max

1312-1578

1586-1701

1281-1544



1569-1890



rating

758-912

916-983

740-892



907-1092

torque
n.m

max

17110-24970

23390-26900

32200-46710



24560-35630



rating

11406-16646

15590-17930

21466-31140

32100-47300

16170-23750

working pressure (mpa)

0.7-1.0

0.7-0.8

0.7-1.0

0.7-1.0

0.7-1.0

pneumatic tube cubage (l)

13×2

39512

2×2

2.28×2

24

attrition annulus dia (mm)

φ500

φ496

φ600

φ700

φ700

join link
size

max dia.

φ780

φ750

φ890

φ1010

φ935



max width

234

288

284

292

200



orientation dia.

φ300H8

φ750F9

φ340H8
40H8×100

φ240H8

φ360H10



bolt number and dia.

40H8×80

12-φ18H10

12-φ23H10

8-φ32H8

16-φ22H10



bolt distributing dia.

10-φ18H10

φ720

φ420

φ300

φ400

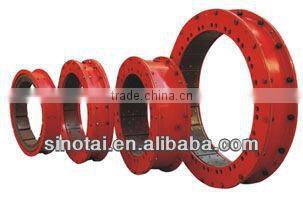

LT500/250T type Air tube clutch
